6ES7307-1BA00-0AA0 Siemens

Name: 6ES7307-1BA00-0AA0 Siemens
Brand: Siemens
SKU: 6ES7307-1BA00-0AA0
Price: 360.0 USD
Availability: InStock

$360.00 - $835.97

$360.00

$360.00 - $835.97

$360.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

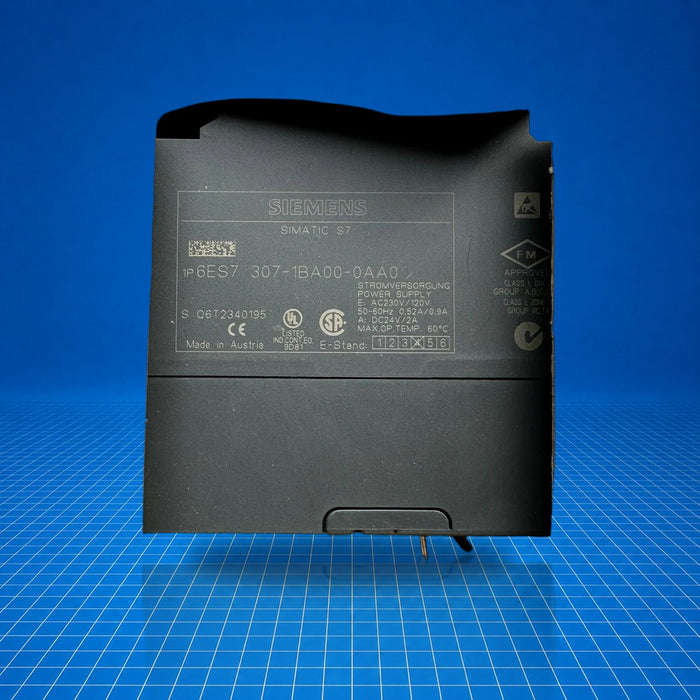

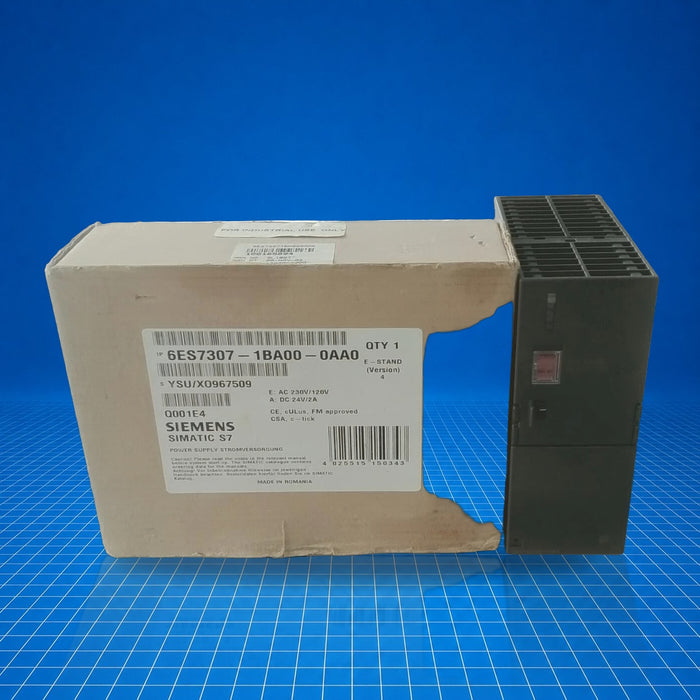

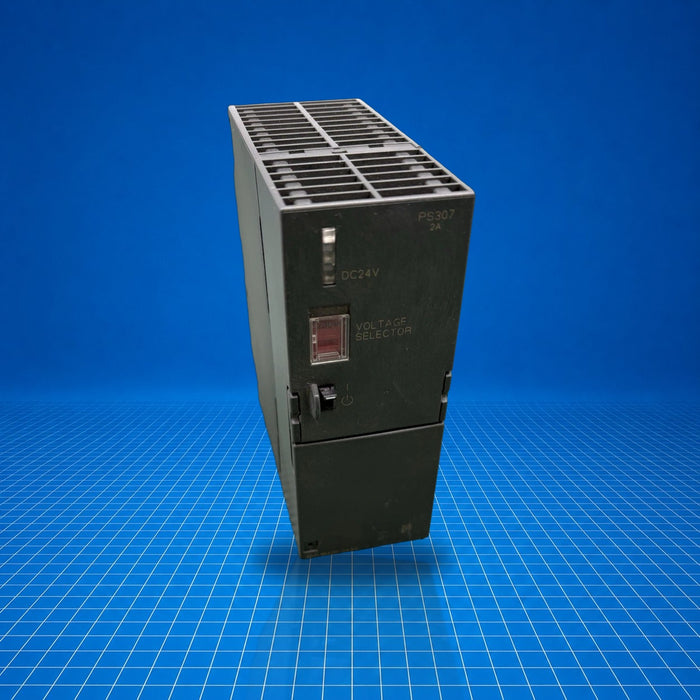

The Siemens SIMATIC S7-300 power supply module 6ES7307-1BA00-0AA0 is a 24 V DC, 2 A regulated supply designed for the S7-300 automation platform. As part of the PS 307 family, this module provides isolated, short-circuit-proof, open-circuit-proof 24 V DC power input to S7-300 systems. It replaces the earlier version with the .00 revision and is suitable for standard industrial control cabinets or on-machine power distribution applications.

Best Suited For

Powering S7-300 PLC racks and associated I/O modules
Replacement in legacy S7-300 installations where PS 307 modules are used
On-machine or local cabinet power supply for industrial control systems
Installations requiring automatic AC input range switching

Output voltage

24 V DC

Output current

2 A

AC input range

85 … 132 V / 170 … 264 V AC, automatic switching

Degree of protection

IP20

Technical Specifications

I/O & Electrical

AC input voltage range

85 … 132 V / 170 … 264 V AC

Automatic AC source switching

Yes

Rated input voltage

120 / 230 V AC

Rated input current (120 V)

0.9 A

Rated input current (230 V)

0.5 A

Inrush current (at 25 °C)

22 A

I²t value

1 A²·s

Recommended line protection

3 A characteristic C breaker

Communication & Power

Output voltage

24 V DC

Output current

2 A

Residual ripple (max.)

< 40 mVpp

Residual ripple (typ.)

5 mVpp

Physical & Environmental

Dimensions (W×H×D)

40 × 125 × 120 mm

Weight

≈ 400 g

Ambient operating temperature

0 … 60 °C

Storage/transport temperature

-40 … +85 °C

Pollution degree

2

Climate category

3K3 (5 … 95 % RH, non-condensing)

Certifications

CEULcULusATEXIECExFM

Conformity with CE, UL/cULus (UL508, CSA C22.2 No.142 - Listed; ANSI/ISA 12.12.01 Class I Div 2 - Listed), ATEX (II 3G, Ex nA, nC, IIC, T4), IECEx, FM, RFI class B (EN 55022), EMC immunity EN 61000-6-2, safety extra-low voltage SELV to EN 60950 and EN 50178.
