Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

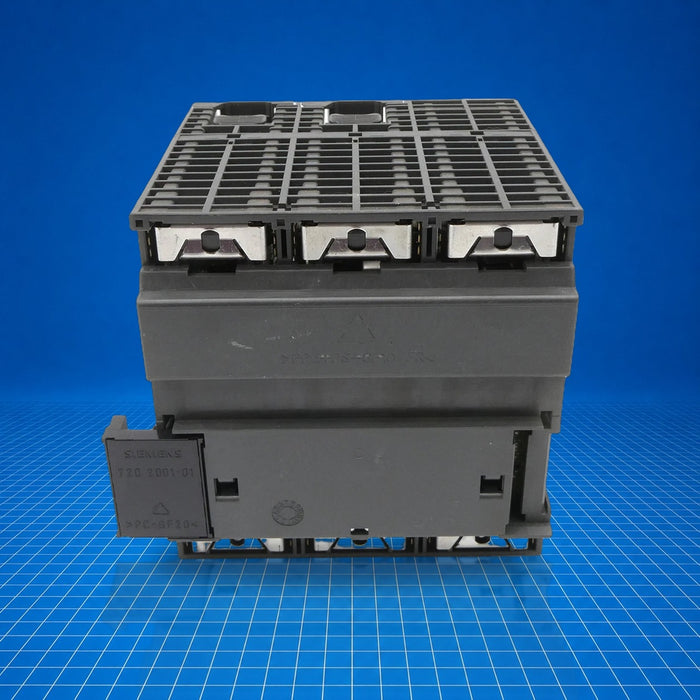

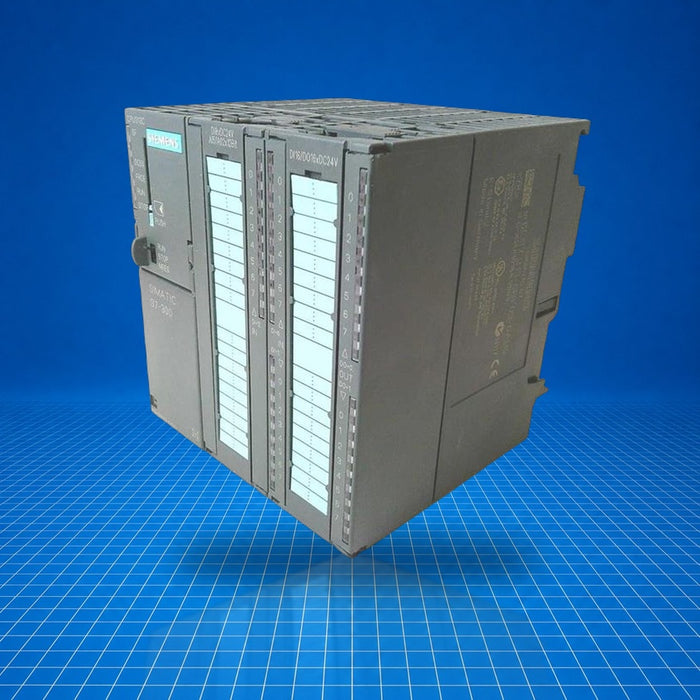

The 6ES7313-5BF03-0AB0 is a compact SIMATIC S7-300 CPU 313C module integrating a central processor with digital I/O, analog I/O, high-speed counters, MPI communication and an integrated 24 V DC power supply. It provides deterministic control, signal processing and I/O handling in industrial automation applications such as machine control, batch processing, modular assembly and basic process control. The module supports firmware and project backup via Micro Memory Card. 6ES7313-5BF03-0AB0 is discontinued as of October 1, 2024.
Best Suited For
- SIMATIC S7-300 compact machine control
- High-speed counting up to 30 kHz
- Systems using mixed digital and analog signals
- Backup and firmware management via Micro Memory Card
Digital I/O (DI/DO)
24 DI / 16 DO
Analog I/O (AI/AO)
4 AI / 2 AO
High-speed counters
3 × 30 kHz
Work memory
64 KB
Power supply
24 V DC integrated
Technical Specifications
I/O & Electrical
Digital inputs
24 DI
Digital outputs
16 DO
Analog inputs
4 AI
Analog outputs
2 AO
High-speed counters
3; up to 30 kHz
Work memory
64 KB
Load memory
Micro Memory Card required
Communication & Power
Power supply
24 V DC (integrated)
MPI communication
Supported
Physical & Environmental
Front connectors
2 × 40-pole
Weight
0.724 kg
