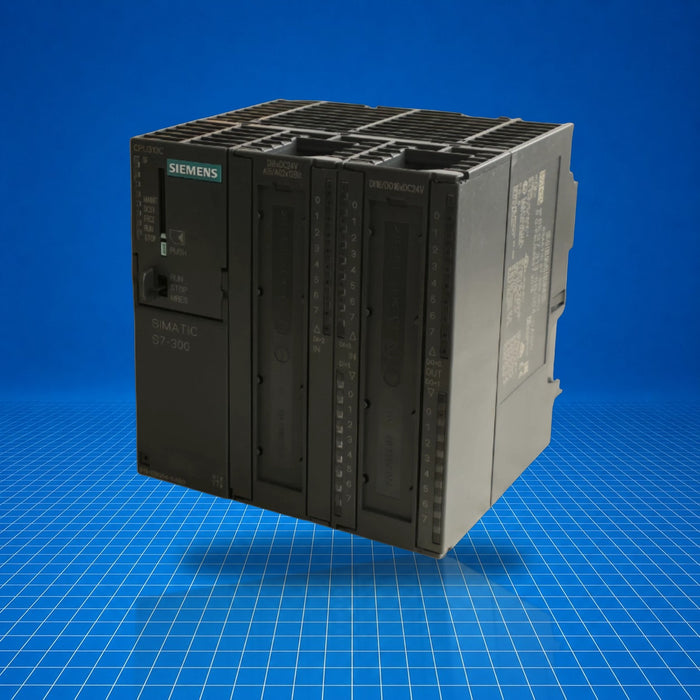

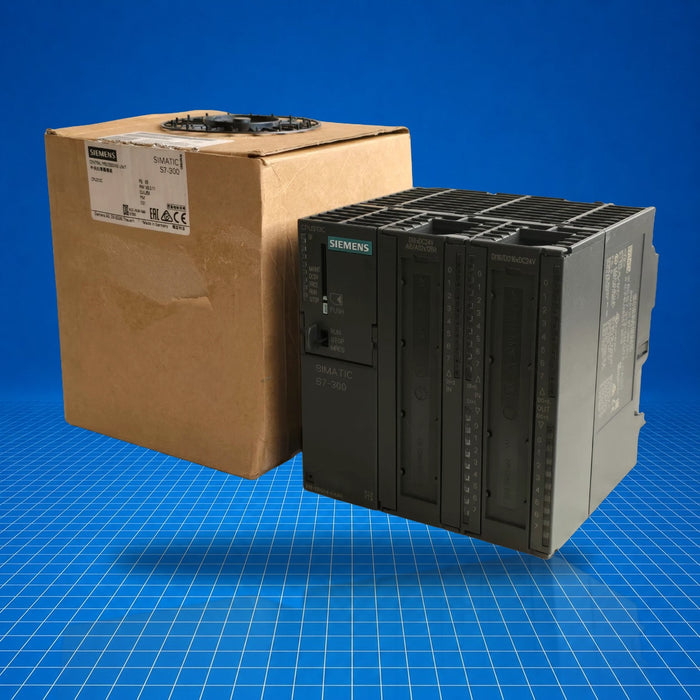

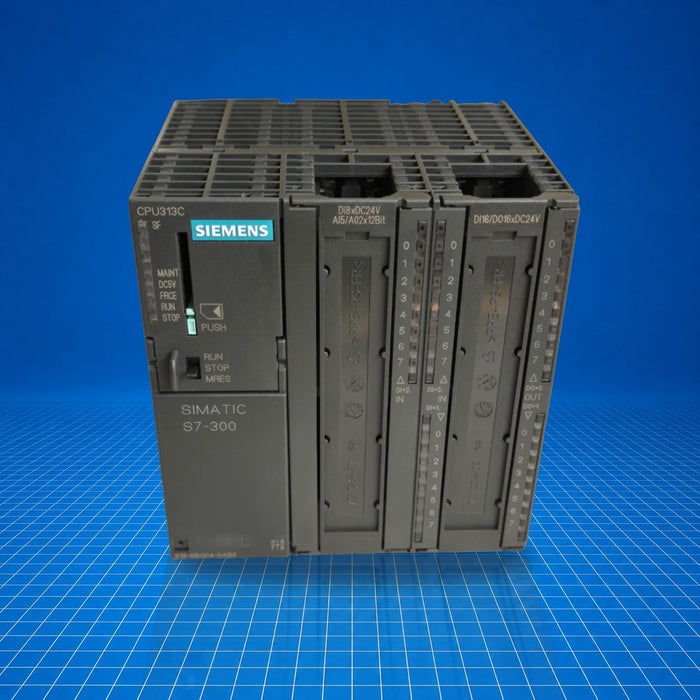

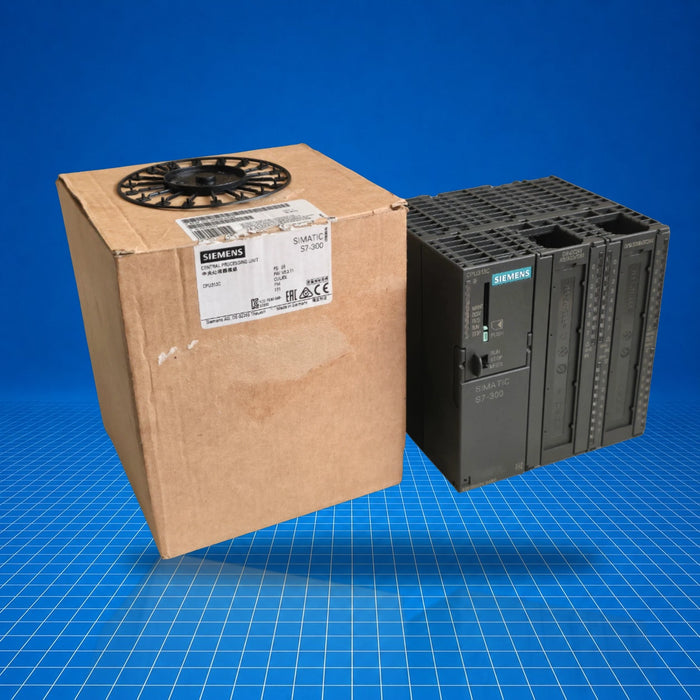

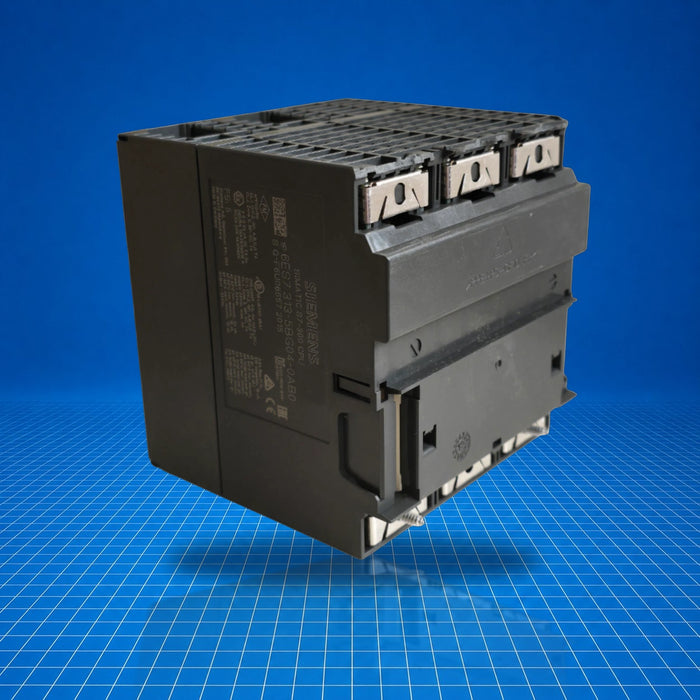

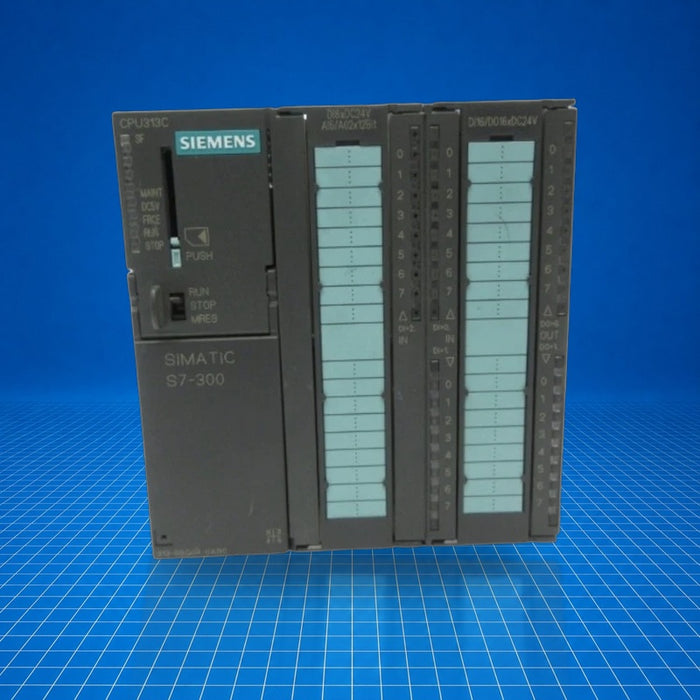

6ES7313-5BG04-0AB0 Siemens

Name: 6ES7313-5BG04-0AB0 Siemens
Brand: Siemens
SKU: 6ES7313-5BG04-0AB0
Price: 2034.7 USD
Availability: InStock
Rating: 3.0 (1 reviews)

$2,034.70 - $2,202.55

$2,034.70

$2,034.70 - $2,202.55

$2,034.70

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7313-5BG04-0AB0 is a SIMATIC S7-300 series compact CPU, designated CPU 313C, integrating central processing and basic I/O in one module. It includes an MPI (Multi-Point Interface) communication port and provides 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, a Pt100 input, and three high-speed 30 kHz counters. The unit features an integrated 24 V DC power supply and 128 kbyte of work memory, relying on a front connector (2 × 40-pole) and requiring a Micro Memory Card for load memory. Typical usage includes control logic execution, analog/digital signal handling, and counting applications in industrial control panels or machine-level automation environments.

Best Suited For

Distributed machine-level automation
Systems requiring mixed analog and digital I/O
Applications with simple counting and temperature input
Retrofit projects within S7-300 architecture

Digital I/O (DI/DO)

24 DI / 16 DO

Analog I/O (AI/AO)

4 AI / 2 AO

Work memory

128 kbyte

Power supply

24 V DC integrated

High-speed counters

3 × 30 kHz

Technical Specifications

I/O & Electrical

Digital inputs

24 inputs, 24 V, reverse-polarity protected

Digital outputs

16 outputs, 24 V, not reverse-polarity protected

Analog inputs

4 channels

Analog outputs

2 channels

Pt100 input

1 channel

High-speed counters

3 × 30 kHz

Communication & Power

Supply voltage (rated)

24 V DC

Supply voltage range

19.2 V - 28.8 V

Current consumption (no load)

150 mA (typical)

Current consumption (rated)

650 mA

Inrush current (typical)

5 A

I²t

0.7 A²·s

Power loss (typical)

12 W

External protection recommendation

Miniature circuit breaker type C ≥ 2 A or type B ≥ 4 A

Physical & Environmental

Front connector

2 × 40-pole

Micro Memory Card

required (plug-in)
