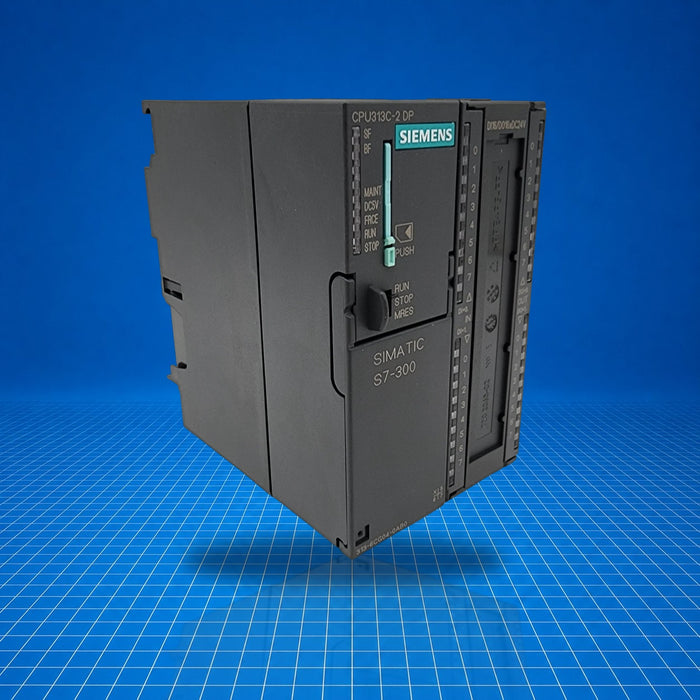

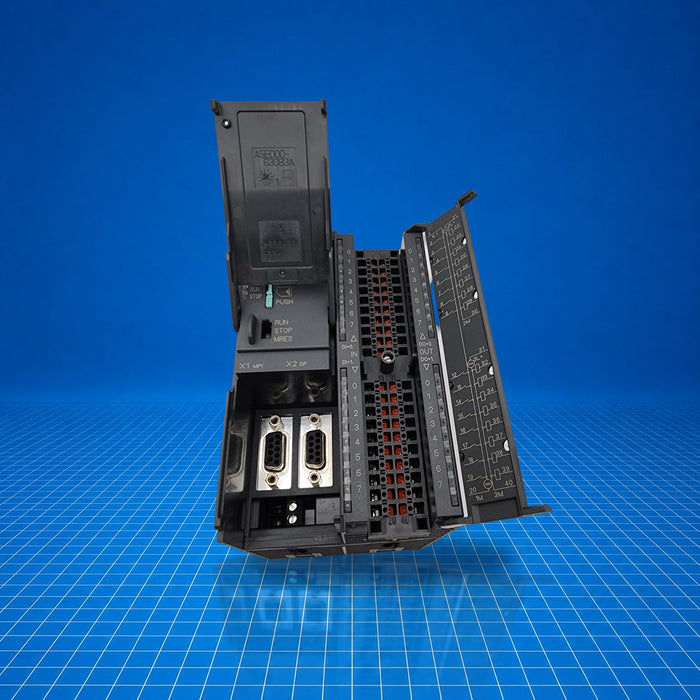

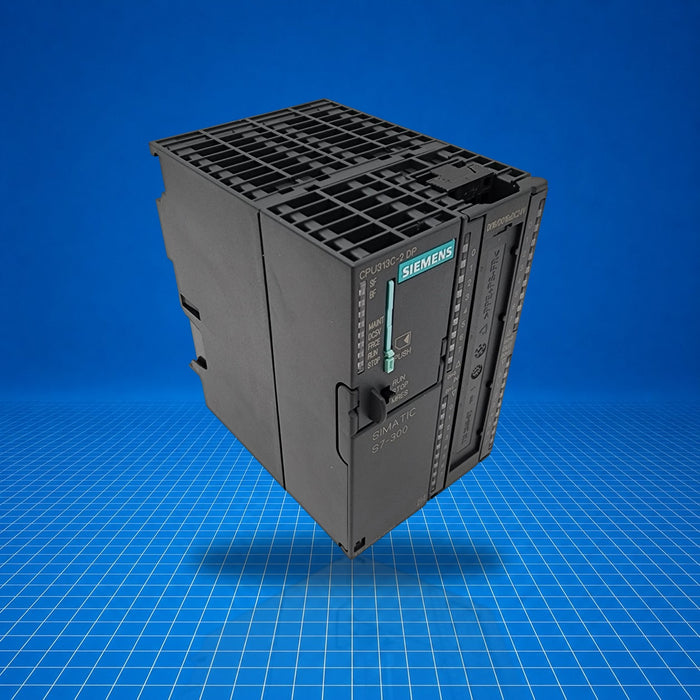

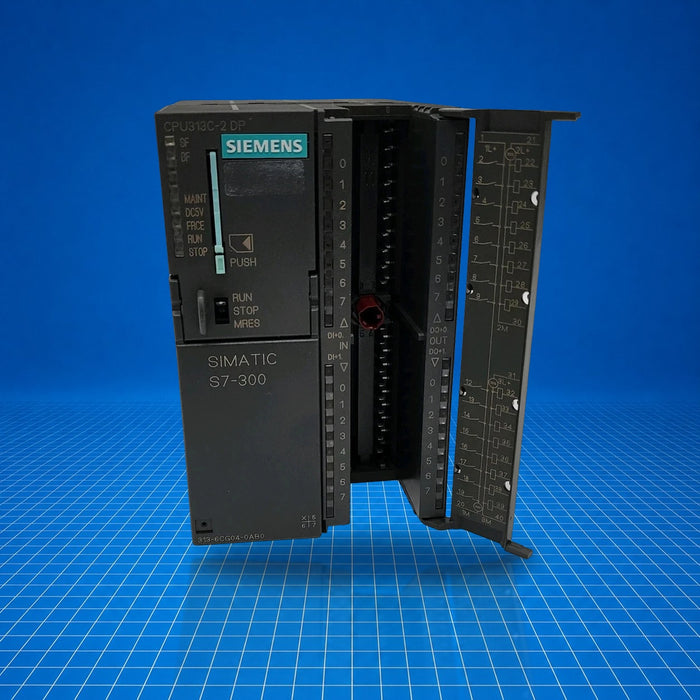

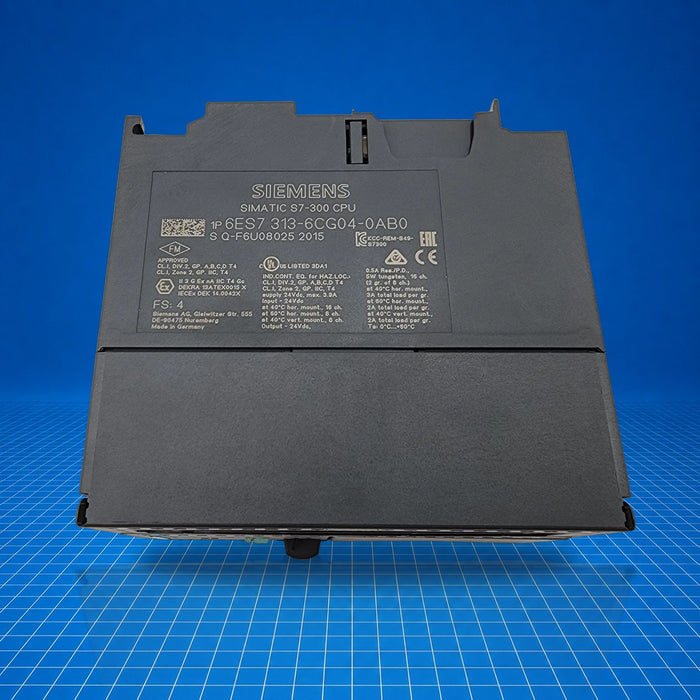

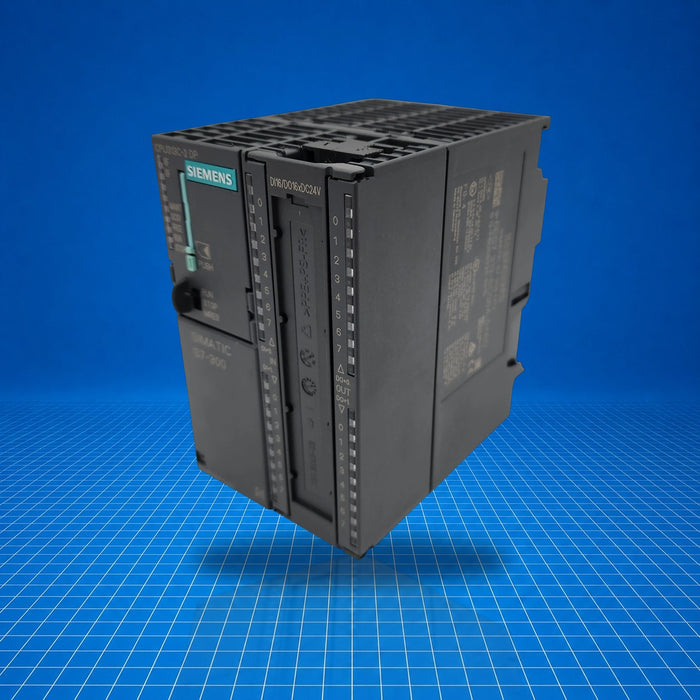

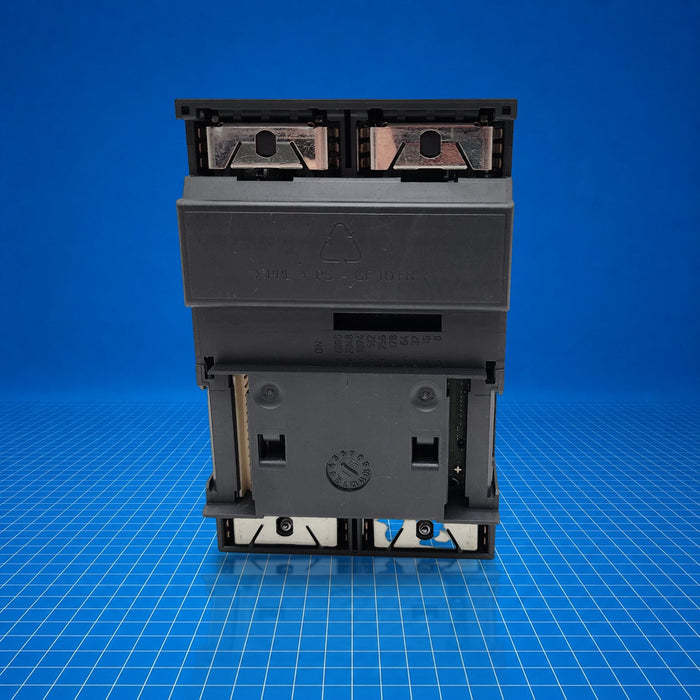

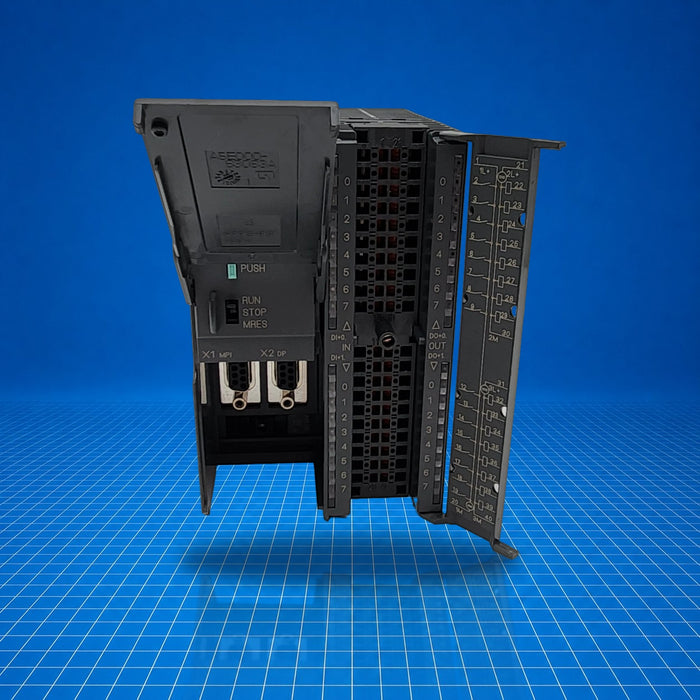

6ES7313-6CG04-0AB0 Siemens
Original price
$1,047.75
-
Original price
$3,427.25
Original price
$1,047.75
$1,047.75
-
$3,427.25
Current price
$1,047.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-300 CPU 313C-2 DP (6ES7313-6CG04-0AB0) is a compact central processing unit module within the S7-300 family. It provides 16 digital inputs and 16 digital outputs alongside three high-speed counters (30 kHz). It includes an integrated 24 V DC power supply, a DP interface, and requires a Micro Memory Card for load memory. It is engineered for mid-range programmable logic control, offering local I/O handling and PROFIBUS DP communication in packaging, machine control, and general automation systems.
Best Suited For
- Local discrete I/O control within S7-300 systems
- Applications requiring integrated high-speed counting
- PROFIBUS DP networked machine modules
- Compact installations with minimal expansion rack space
Digital I/O (DI/DO)
16/16
High-speed counters
3 (30 kHz)
Work memory
128 kbyte
Interfaces
MPI + PROFIBUS DP
Technical Specifications
I/O & Electrical
Digital inputs
16
Digital outputs
16
Input voltage
24 V DC
Output current (each)
max. 0.6 A; rated 0.5 A
Total output current (≤ 40 °C horiz.)
3 A
Communication & Power
Supply voltage (rated)
24 V DC
Supply voltage range
19.2-28.8 V DC
Current consumption (rated)
800 mA
No-load current (typ.)
110 mA
Inrush current (typ.)
5 A
Power loss (typ.)
9 W
MPI interface
RS-485, max 187.5 kbit/s
PROFIBUS DP interface
RS-485, max 12 Mbit/s, master/device
Physical & Environmental
Dimensions (W×H×D)
80 × 125 × 130 mm
Weight
≈ 500 g
Operating ambient temperature
0 °C to 60 °C
Certifications
EU Declaration of ConformityUK Declaration of ConformityManufacturer Declaration
