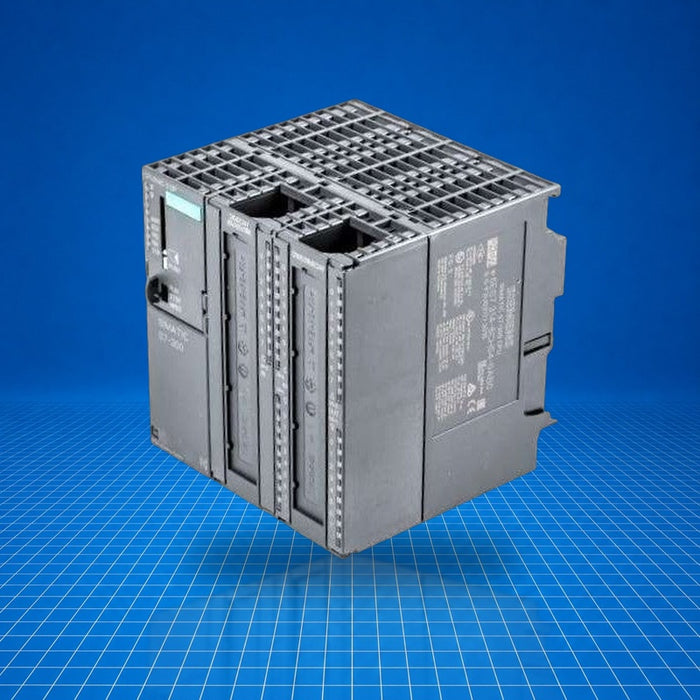

6ES7314-6CH04-0AB0 Siemens
Original price
$2,368.06
-
Original price
$6,780.00
Original price
$2,368.06
$2,368.06
-
$6,780.00
Current price
$2,368.06
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7314-6CH04-0AB0 is a SIMATIC S7-300 compact CPU module (CPU 314C-2 DP) that integrates a 24 V DC power supply, MPI interface, 24 digital inputs, 16 digital outputs, 4 analogue inputs, 2 analogue outputs, support for one Pt100 sensor, and four 60 kHz high-speed counters. It provides a 192 kB work memory and requires a Micro Memory Card for load memory. The unit is suited as the central processing element in medium-scale industrial automation installations, handling discrete, analogue and high-speed signal processing.
Best Suited For
- Distributed control in S7-300 systems
- Simple machine control with mixed digital and analogue I/O
- Applications requiring Pt100 temperature input monitoring
- Environments needing four high-speed 60 kHz counters
- Retrofits using MPI and Profibus-DP communication
Work memory
192 kbyte
Digital I/O
24 DI / 16 DO
Analogue I/O
4 AI / 2 AO
High-speed counters
4 × 60 kHz
Supply voltage
24 V DC (19.2-28.8 V)
Technical Specifications
I/O & Electrical
Digital inputs
24 DI, 24 V DC rated, reverse polarity protection Yes
Digital outputs
16 DO, 24 V DC rated, reverse polarity protection No
Analogue inputs
4 AI
Analogue outputs
2 AO
High-speed counters
4 counters, 60 kHz
Communication & Power
Supply voltage
24 V DC
Permissible voltage range
19.2-28.8 V DC
Current consumption (rated)
880 mA
Current consumption (no-load, typ.)
150 mA
Inrush current (typ.)
5 A
I²t
0.7 A²·s
Power loss (typ.)
13 W
Stored energy time (mains buffering)
5 ms
Repeat rate, min.
1 s
Physical & Environmental
Work memory (integrated)
192 kbyte
Load memory
Plug-in Micro Memory Card
Micro Memory Card required
Yes
Firmware version
V3.3
Programming package
STEP 7 V5.5 + SP1 or STEP 7 V5.3 + SP2 with HSP 203
Product weight
0.726 kg
Packaging dimensions
13.40 × 15.40 × 12.90 cm
