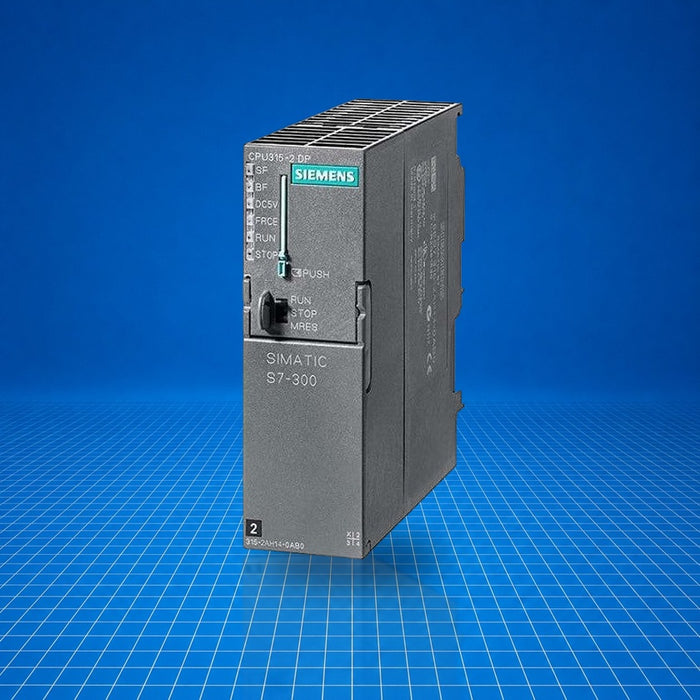

Product image is representative; revision or series may vary.
Contact us to request a specific version.

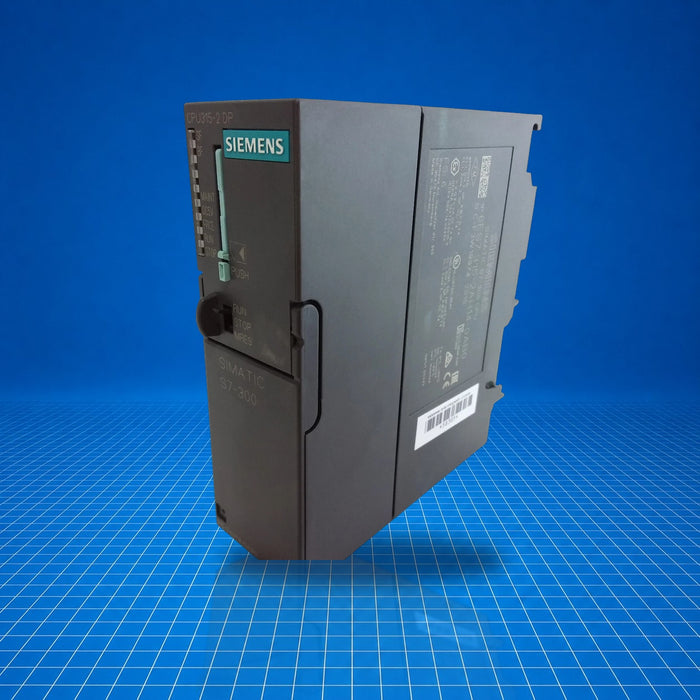

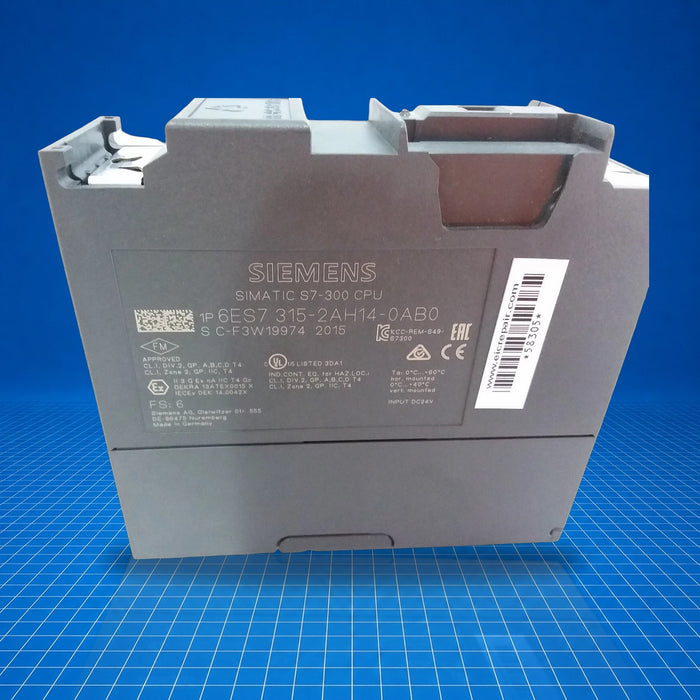

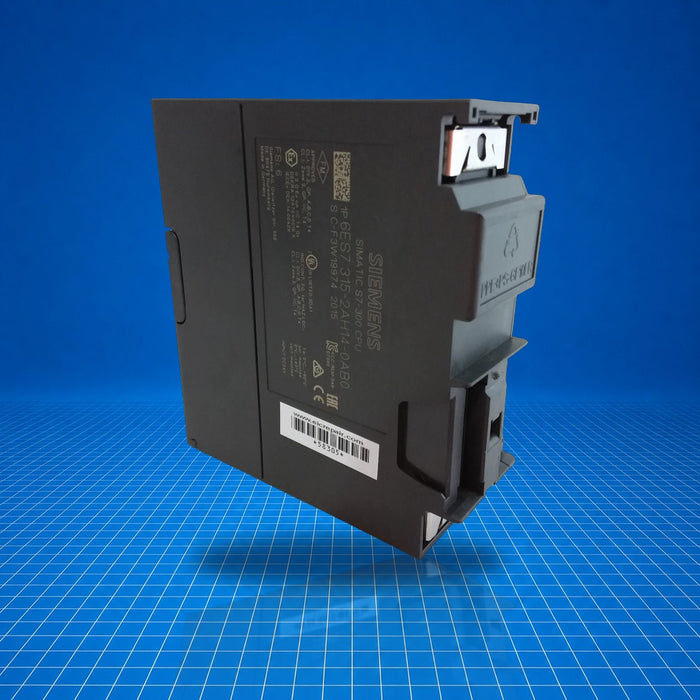

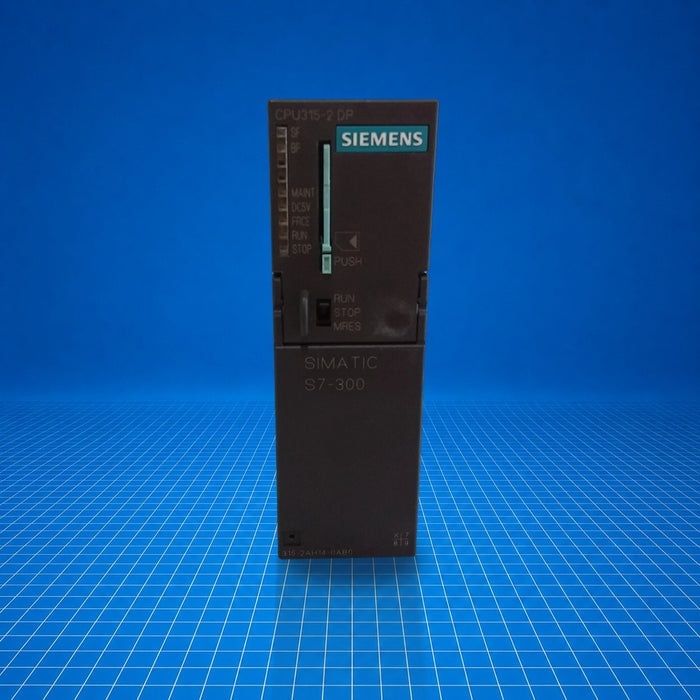

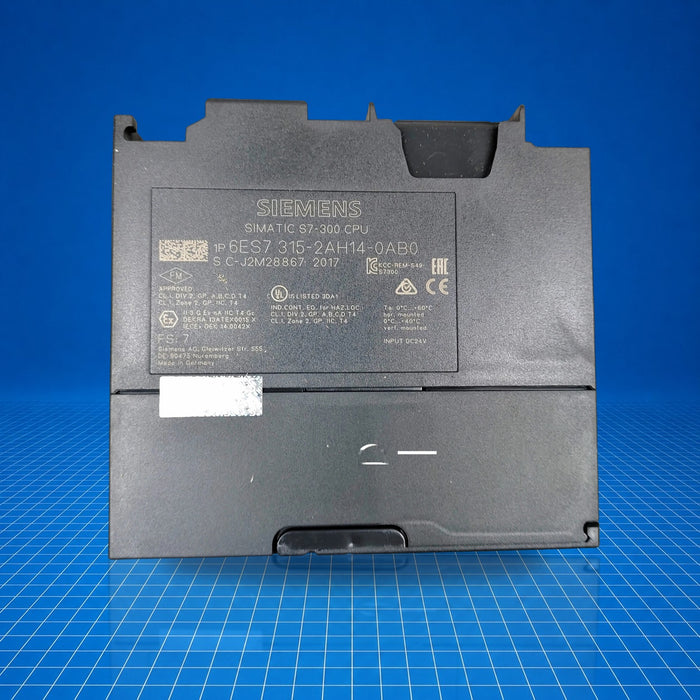

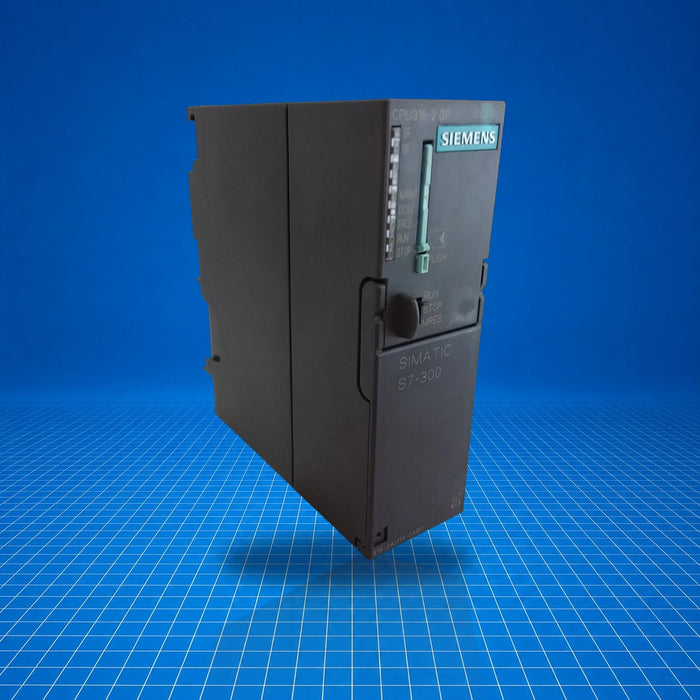

6ES7315-2AH14-0AB0 Siemens

Name: 6ES7315-2AH14-0AB0 Siemens
Brand: Siemens
SKU: 6ES7315-2AH14-0AB0
Price: 406.11 USD
Availability: InStock

$406.11 - $3,564.00

$406.11

$406.11 - $3,564.00

$406.11

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6ES7315-2AH14-0AB0 is a Siemens SIMATIC S7-300 series CPU 315-2DP central processing unit including an integrated MPI interface, onboard 24 V DC power supply, and 256 kB work memory. It supports PROFIBUS DP master/slave operation and requires a micro memory card for program and data retention. Its function within control systems is as the programmable logic core, executing user programs, managing communications via MPI and DP, and serving as a modular automation backbone for mid-range industrial applications. 6ES7315-2AH14-0AB0 is often specified in retrofit or spare-parts scenarios for existing S7-300 installations.

Best Suited For

Replacement or spare for existing SIMATIC S7-300 installations
Mid-range applications requiring both MPI and PROFIBUS DP communication
Systems requiring non-battery backup via MMC
Embedded use in compact automation racks

Work memory

256 kbyte

Supply voltage

24 V DC

Current consumption (rated)

850 mA

Interfaces

MPI plus PROFIBUS DP master/slave

Micro Memory Card

required, up to 8 Mbyte

Technical Specifications

I/O & Electrical

Supply voltage (rated)

24 V DC

Permissible voltage range

19.2 V to 28.8 V

External protection recommendation

≥ 2 A

Current consumption (rated)

850 mA

Current consumption (no-load), typical

150 mA

Inrush current, typical

3.5 A

I²t

1 A²·s

Power loss, typical

4.5 W

Communication & Power

Work memory (integrated)

256 kbyte

Work memory expandable

No

Micro Memory Card slot

Yes, up to 8 Mbyte

Backup

Via MMC, no battery, program and data retained

Isochronous mode

Yes

Programming software

STEP 7 V5.5 + SP1 or V5.2 + SP1 with HSP 218

Physical & Environmental

Net weight

0.331 kg

Packaging dimensions

13.10 × 15.30 × 5.20 cm
