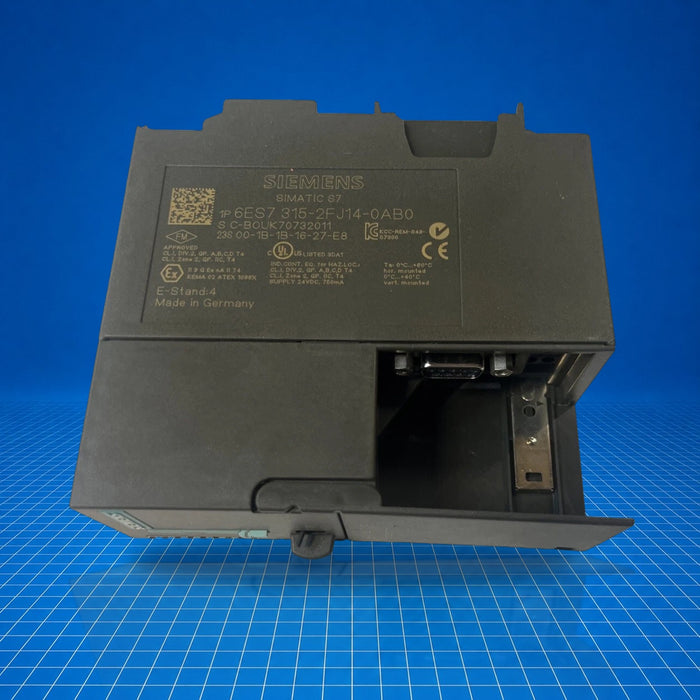

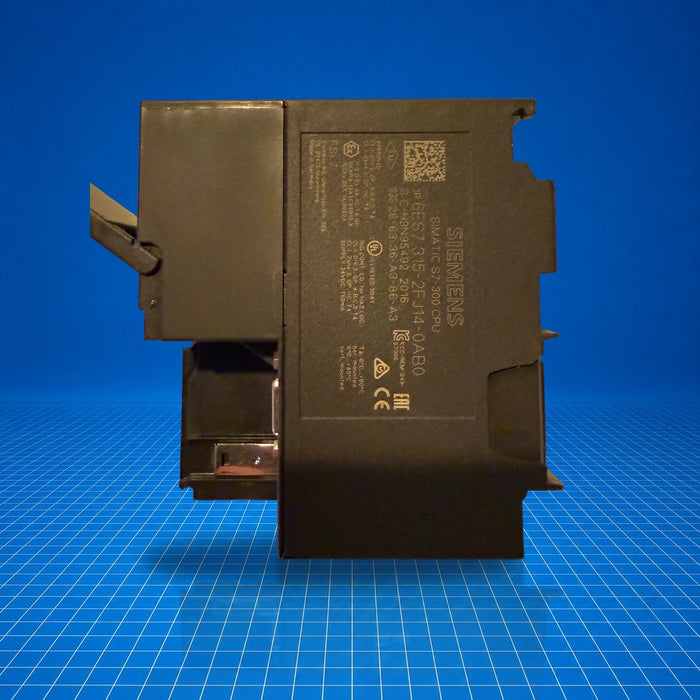

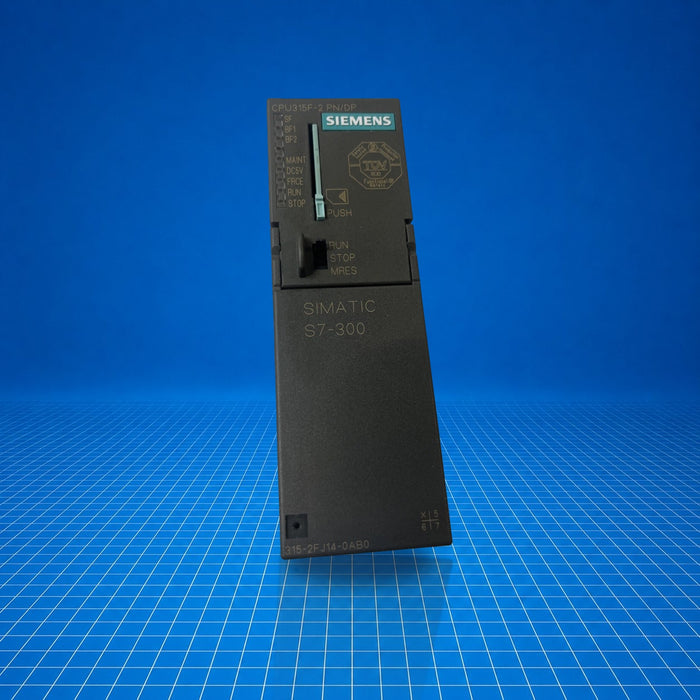

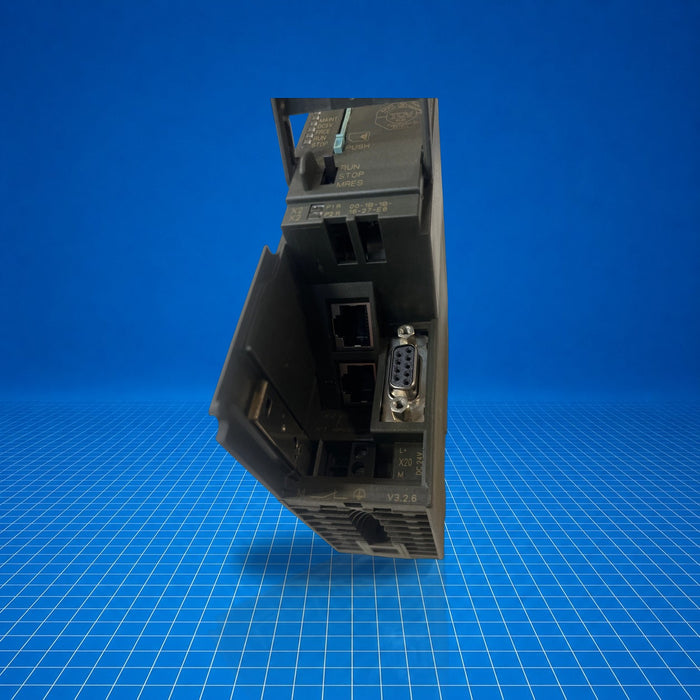

6ES7315-2FJ14-0AB0 Siemens
Original price
$1,320.00
-
Original price
$9,225.00
Original price
$1,320.00
$1,320.00
-
$9,225.00
Current price
$1,320.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7315-2FJ14-0AB0 is a SIMATIC S7-300 series CPU (CPU 315F-2 PN/DP) that combines standard control functionality with integrated safety processing. It includes 512 kB of work memory and dual communication interfaces (MPI/PROFIBUS DP and Ethernet PROFINET with an integrated 2-port switch). It is typically used in applications requiring integrated safety logic-such as machine or personnel protection and burner controls-within industrial automation systems.
Best Suited For
- Machine safety and burner control applications
- S7-300 system installations requiring integrated safety and standard logic in one CPU
- Environments using both MPI/PROFIBUS DP and PROFINET communication
- Applications where compact, single-device safety and control is preferred
Work memory
512 kbyte
Interfaces
MPI/DP (12 Mbit/s), Ethernet PROFINET (2-port)
Safety capability
Integrated fail-safe (F-CPU)
Power input
24 V DC (20.4 … 28.8 V)
Operating temp range
0 °C … 60 °C
Technical Specifications
I/O & Electrical
Input voltage
24 V DC (permissible range: 20.4 … 28.8 V)
Current consumption (rated)
750 mA
No-load current consumption
150 mA
Inrush current (typ.)
4 A
Power loss (typ.)
4.65 W
Communication & Power
MPI/PROFIBUS DP interface
12 Mbit/s
PROFINET interface
10/100 Mbit/s, 2 ports, integrated switch
Work memory
512 kbyte
Load memory (MMC)
Up to 8 Mbyte
Physical & Environmental
Dimensions (W×H×D)
40 mm × 125 mm × 130 mm
Weight
340 g
Ambient temperature (operation)
0 °C … 60 °C
Certifications
cULusEACEU declaration of conformityUK Declaration of Conformity
