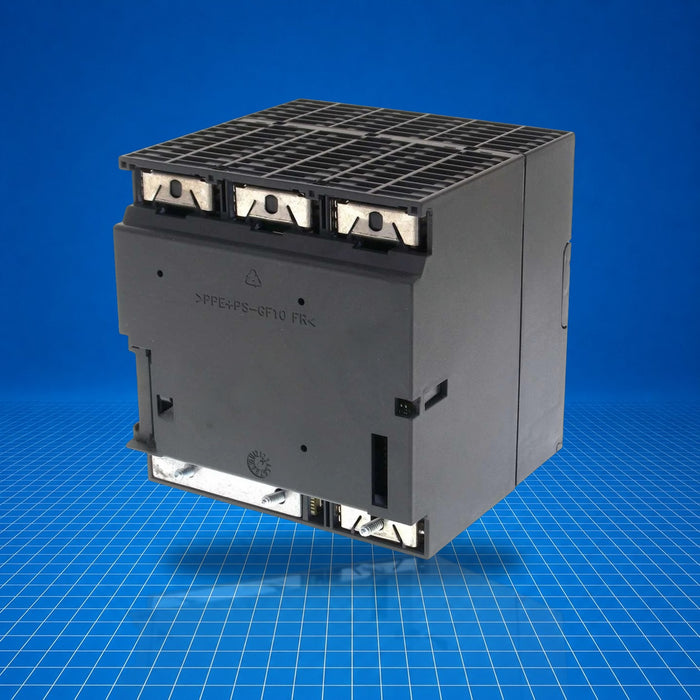

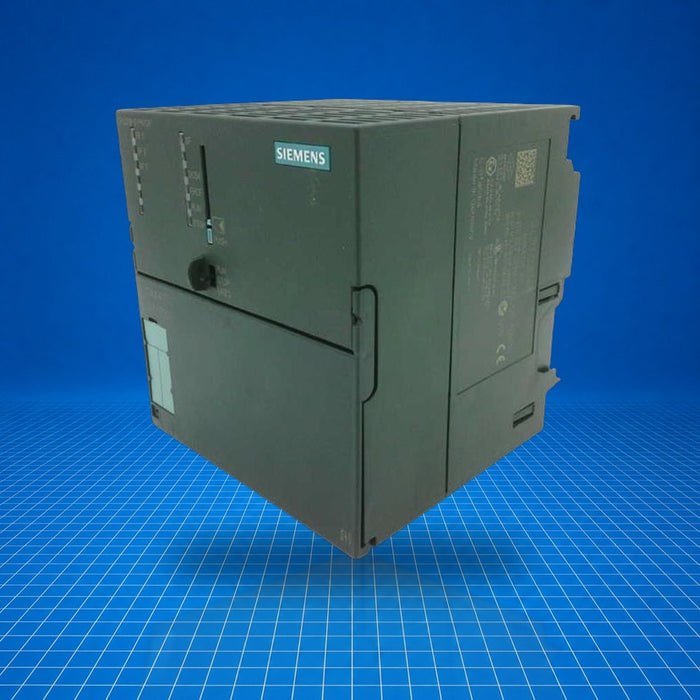

6ES7318-3EL00-0AB0 Siemens
Original price
$1,747.50
-
Original price
$3,918.60
Original price
$1,747.50
$1,747.50
-
$3,918.60
Current price
$1,747.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

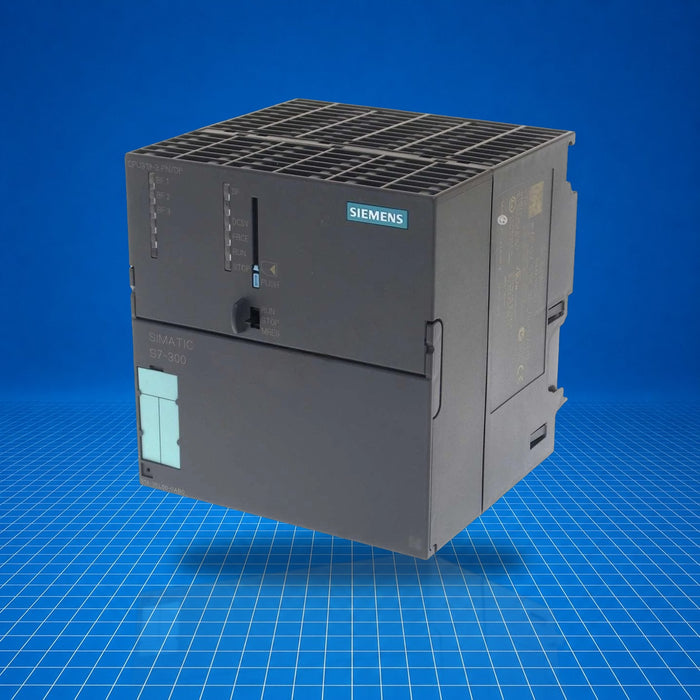

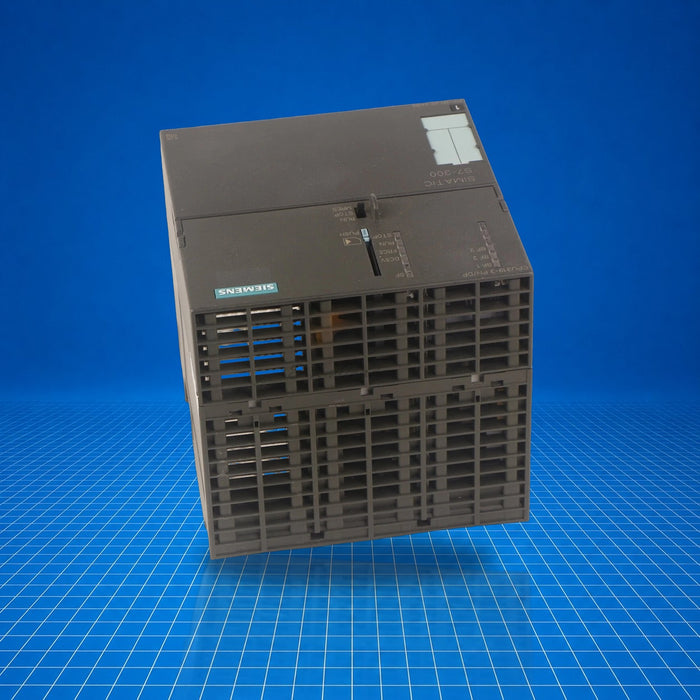

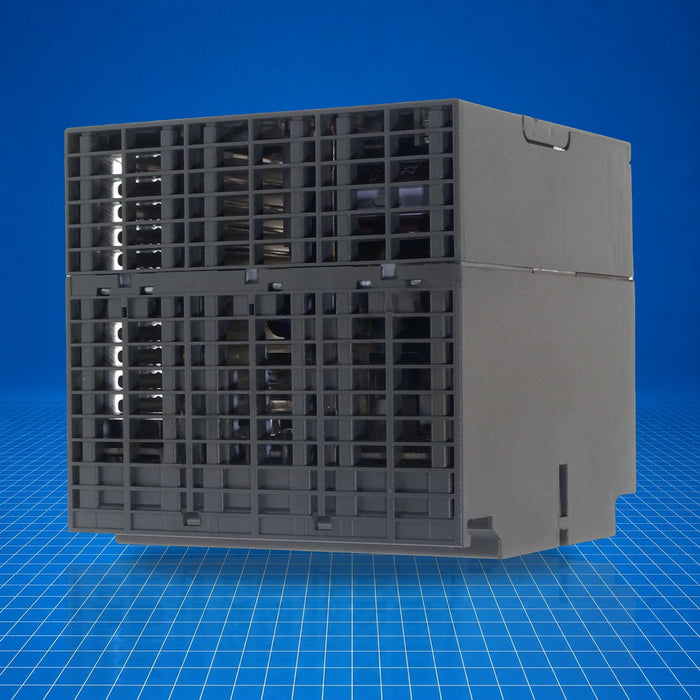

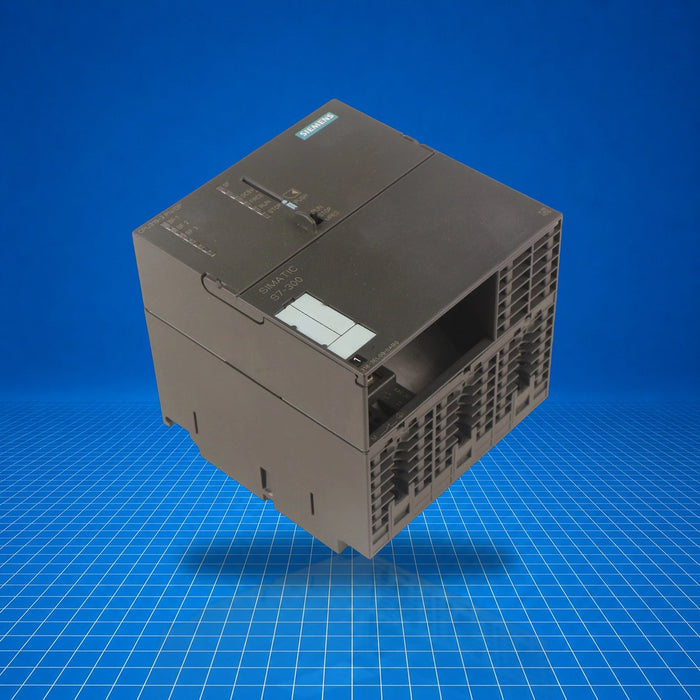

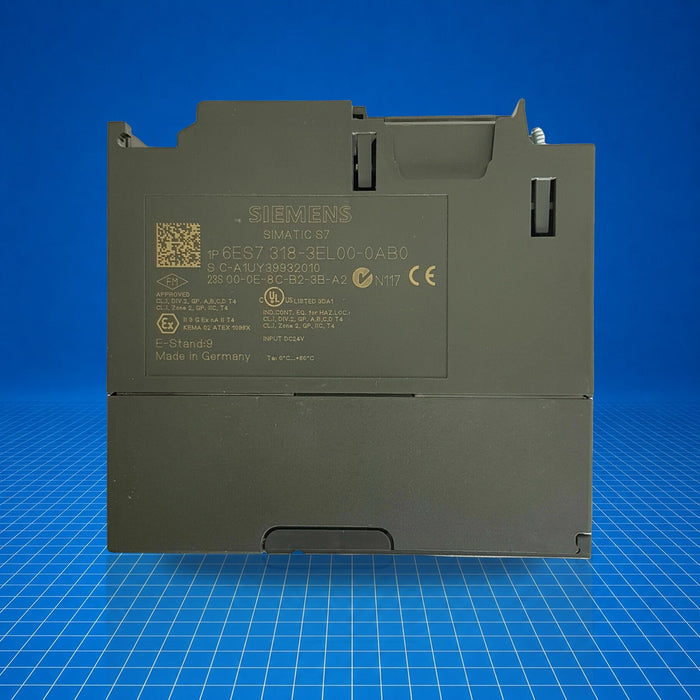

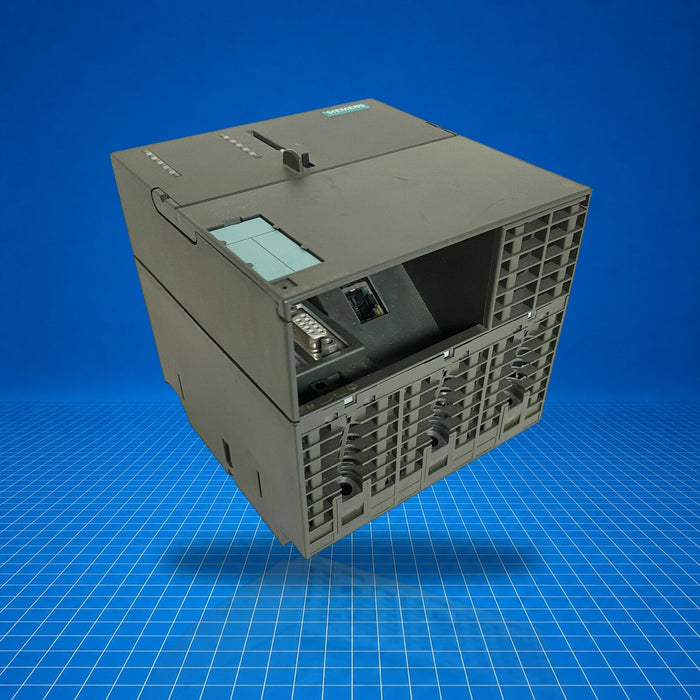

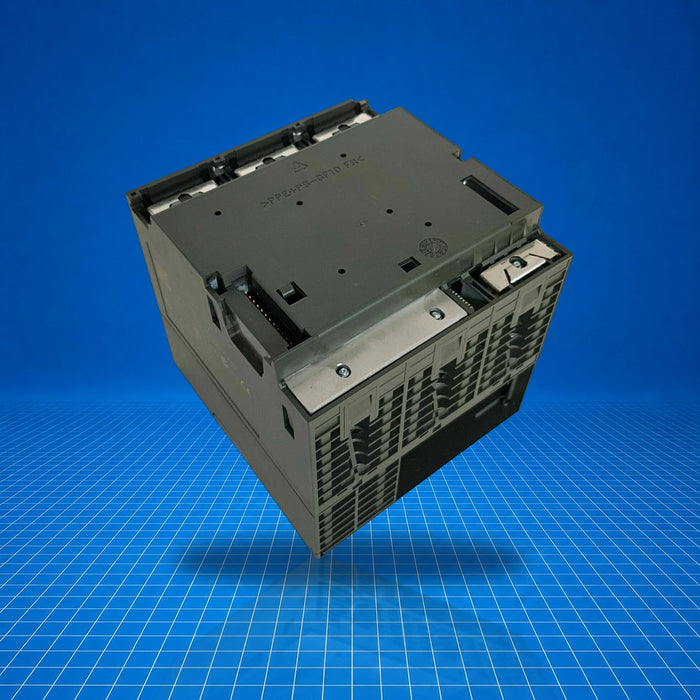

The Siemens CPU 319-3 PN/DP (6ES7318-3EL00-0AB0) is a central processing unit module for the SIMATIC S7-300 automation platform. It provides program execution and control logic in distributed systems, integrating MPI/DP, PROFIBUS DP master/slave, and PROFINET communication. Typical industrial installations include machine control, discrete manufacturing, and process interface layers. 6ES7318-3EL00-0AB0 includes built-in work memory and requires a Micro Memory Card for load memory and program backup.
Best Suited For
- Distributed machine control with centralized MPI/DP network
- Integration into PROFINET-based automation architectures
- PROFIBUS DP master or slave setups in legacy S7-300 systems
- Applications requiring non-battery back-up of load memory
Work memory
2 048 kbyte
Interfaces
MPI/DP + PROFIBUS DP + PROFINET (2-port switch)
Input voltage
24 V DC
Memory card
Micro Memory Card required
Power loss (typ.)
14 W
Technical Specifications
I/O & Electrical
Supply voltage
24 V DC (19.2 - 28.8 V DC)
Current consumption (rated)
1 250 mA
Current consumption (no-load, typ.)
500 mA
Inrush current (typ.)
4 A
Power loss (typ.)
14 W
Communication & Power
MPI/DP interface
Yes, RS-485, 12 Mbit/s
PROFIBUS DP
Master/slave, integrated
PROFINET
Yes, 2-port switch RJ45
Physical & Environmental
Operating temperature
0 to 40 °C
Storage temperature
0 to 50 °C
Humidity (operating/storage)
≤ 80 %, non-condensing
Max. altitude (oper./storage)
1 000 m above sea level
Weight
0.60 kg
