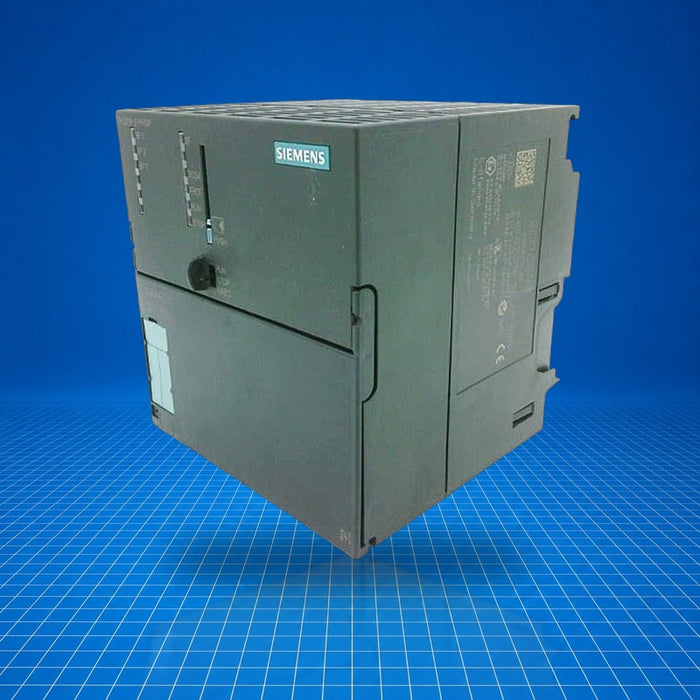

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7318-3EL01-0AB0 Siemens
Original price
$2,205.00
-
Original price
$4,947.45
Original price
$2,205.00
$2,205.00
-
$4,947.45
Current price
$2,205.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7318-3EL01-0AB0 is a SIMATIC S7-300 CPU 319-3 PN/DP central processing unit produced by Siemens and designated as a spare part. It features 2 MB of integrated work memory and supports communication via MPI/DP at up to 12 Mbit/s, PROFIBUS DP (master/slave), and PROFINET with an integrated two-port switch. In system architectures it serves as the main logic controller for medium-scale automation tasks in manufacturing, assembly lines, and machine-level installations. Programming and configuration use STEP 7 V5.5 or higher. Part number (6ES7318-3EL01-0AB0) is referenced within this description once.
Best Suited For
- Machine-level central control in S7-300 systems
- PROFINET and PROFIBUS DP integrated networks
- Environments requiring MMC load memory via Micro Memory Card
- Applications needing isochronous mode via DP or PROFINET interfaces
Work memory
2 048 kbyte
Communication interfaces
MPI/DP, PROFIBUS DP, PROFINET (2-port switch)
Supply voltage range
19.2 V to 28.8 V DC
Power loss (typ.)
14 W
Operating temperature range
0 °C to 60 °C
Technical Specifications
I/O & Electrical
Supply voltage (rated)
24 V DC
Supply voltage range
19.2 V - 28.8 V DC
Current consumption (rated)
1 250 mA
Current consumption (no-load, typ.)
500 mA
Inrush current (typ.)
4 A
Power loss (typ.)
14 W
Communication & Power
MPI/DP interface
up to 12 Mbit/s (RS 485)
PROFIBUS DP master/slave interface
RS 485, up to 12 Mbit/s
PROFINET interface
RJ45, 10/100 Mbit/s, 2 ports (switch)
Physical & Environmental
Work memory
2 048 kbyte (integrated)
Load memory (MMC)
up to 8 Mbyte
Mains buffering time
5 ms
Operating temperature (min)
0 °C
Operating temperature (max)
60 °C
Dimensions (W×H×D)
120 mm × 125 mm × 130 mm
Weight
1 250 g
Certifications
ULEU Declaration of ConformityUK Declaration of ConformityChina RoHS
