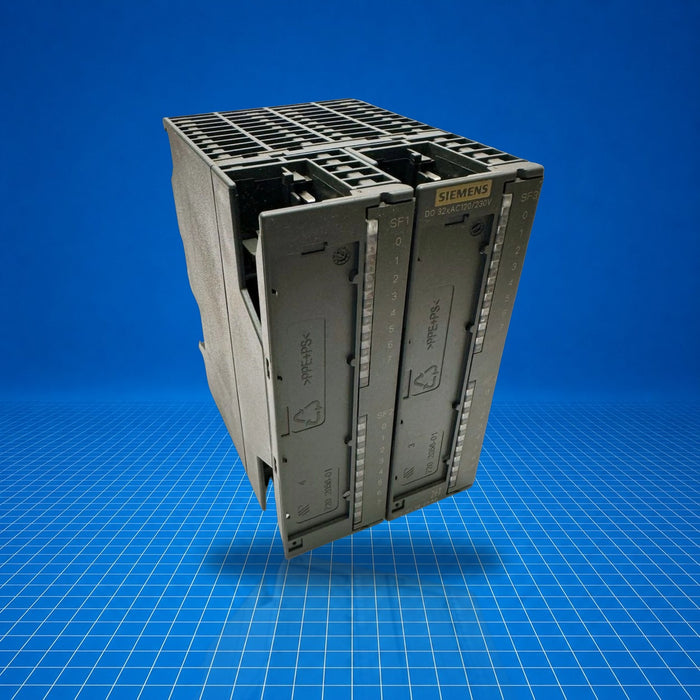

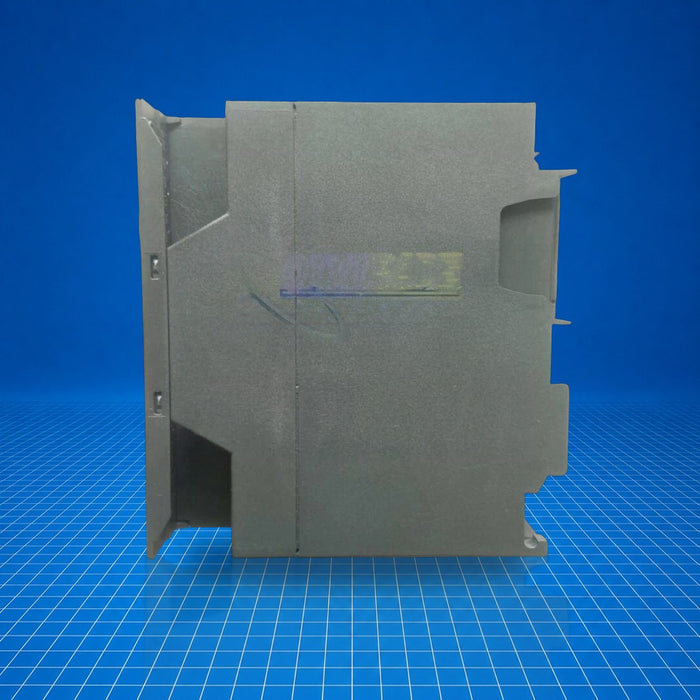

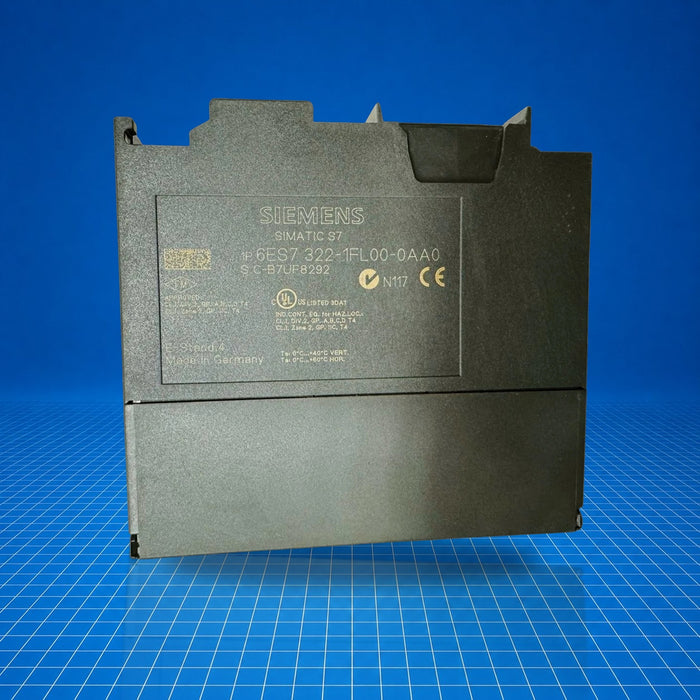

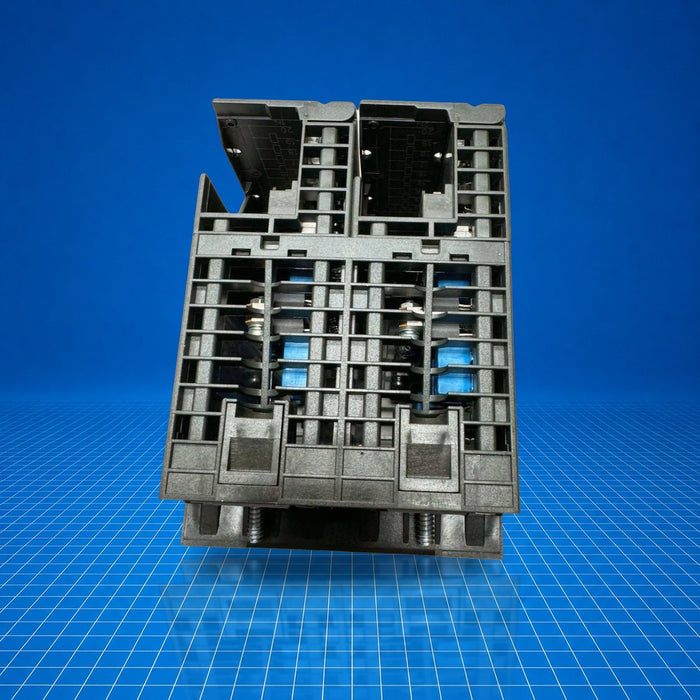

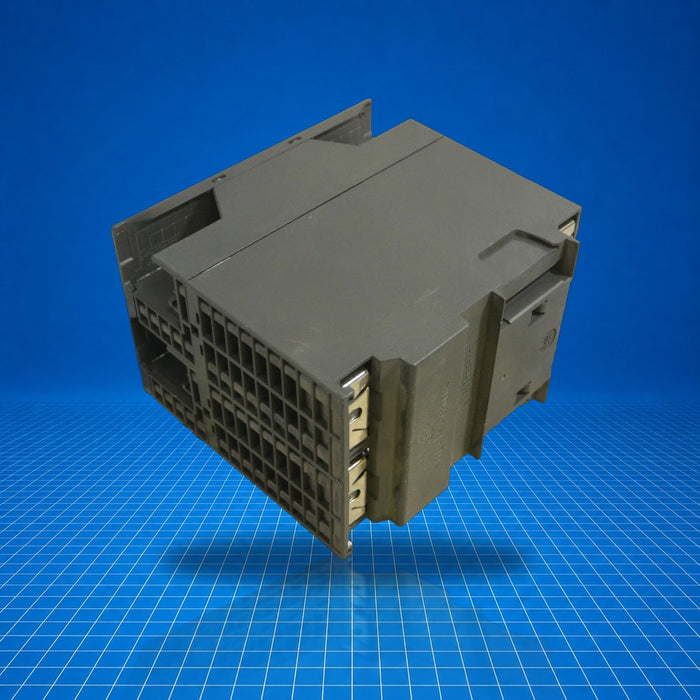

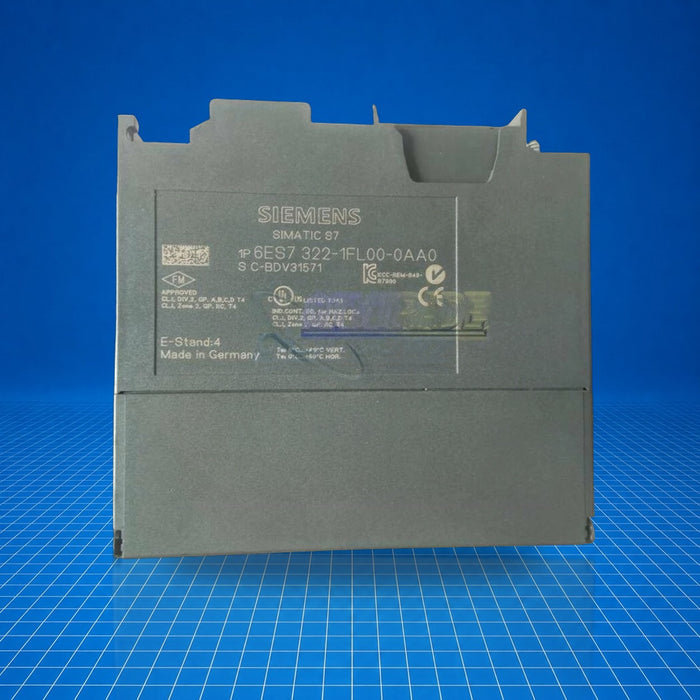

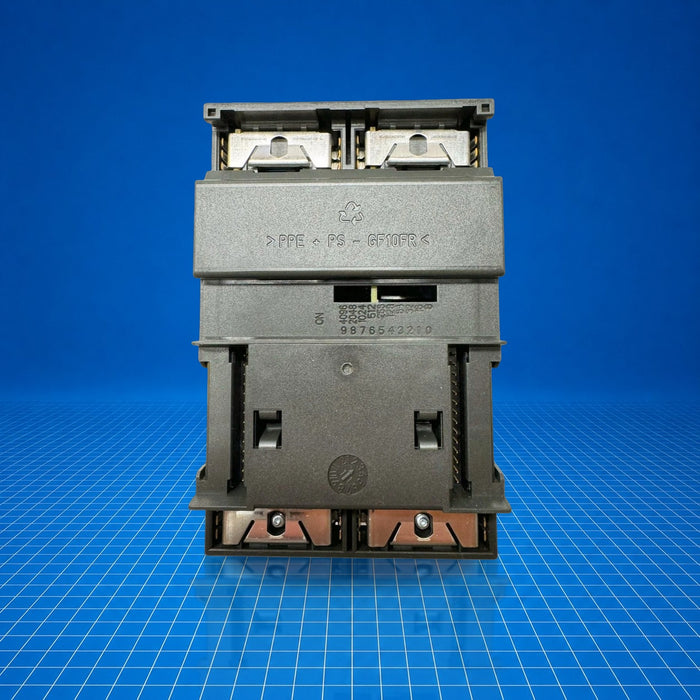

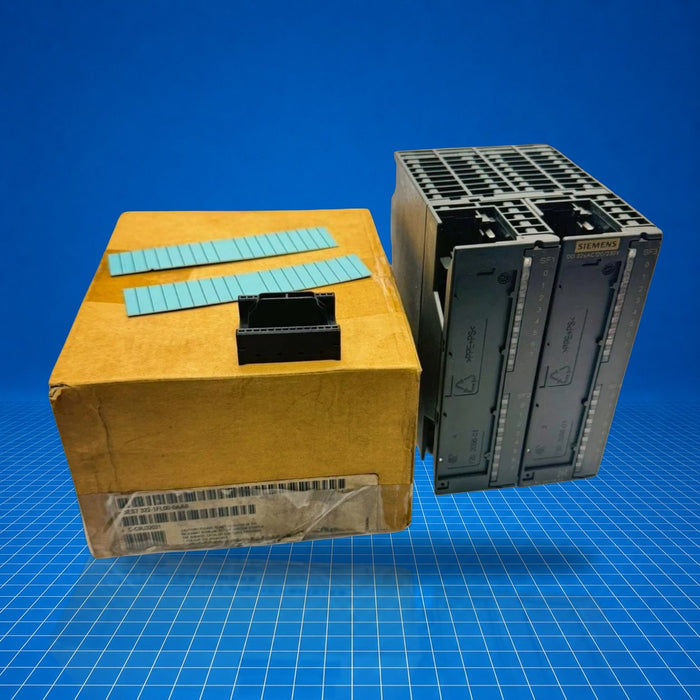

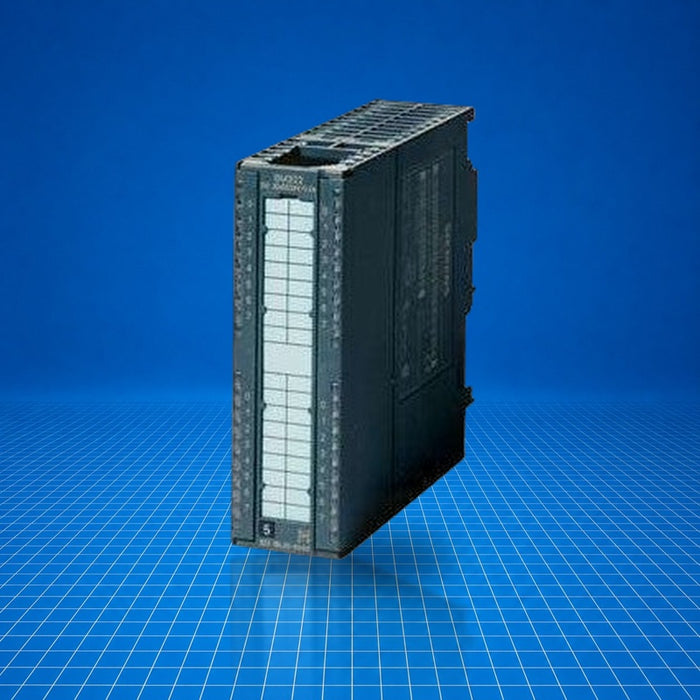

6ES7322-1FL00-0AA0 Siemens
Original price
$1,071.48
-
Original price
$1,265.00
Original price
$1,265.00
$1,071.48
-
$1,265.00
Current price
$1,265.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7322-1FL00-0AA0 is a Siemens SIMATIC S7-300 series digital output module (SM 322) providing 32 isolated AC outputs. It supports switching of AC loads such as solenoids, contactors, starters, and signal lamps at 120/230 VAC up to 1 A per channel. It features fused groups of eight outputs, blown-fuse group indicators, short-circuit protection, and is suitable as a spare-part in industrial automation control racks. Its function is to interface a PLC rack with AC actuator devices, acting as the output stage in process and machine control applications.
Best Suited For
- AC solenoid and contactor control in S7-300 racks
- Signal lamp or FHP motor switching
- Retrofit or spare-part replacement in existing S7-300 installations
- Applications requiring isolated digital AC outputs
Outputs
32 AC channels
Rated load voltage
120/230 VAC
Output current per channel
1.0 A
Isolation groups
8-channel groups, isolated
Short-circuit protection
electronic, typ. 1 A threshold
Technical Specifications
I/O & Electrical
Rated load voltage
120/230 VAC
Output current per channel
1.0 A
Load resistance range
48 Ω to 4 kΩ
Lamp load max
5 W
Switching frequency (resistive)
max. 100 Hz
Switching frequency (inductive, DC13)
max. 0.5 Hz
Switching frequency (lamp load)
max. 10 Hz
Short-circuit protection
electronic, typ. 1 A threshold
Inductive shutdown voltage limit
L + (-53 V)
Communication & Power
Fused isolated groups
yes, groups of 8 outputs
Blown-fuse group indicator
yes
Backplane isolation
yes, 250 VAC to backplane
Isolation test voltage
4000 VDC
Physical & Environmental
Dimensions (W × H × D)
80 × 125 × 117 mm
Weight
ca. 500 g
Cable length max unshielded
600 m
Cable length max shielded
1000 m
Mounting
S7-300 rack module
Output connector
40-pin front connector
