6ES7322-1HF01-0AA0 Siemens
Original price
$0.00
-
Original price
$400.00
Original price
$400.00
$0.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

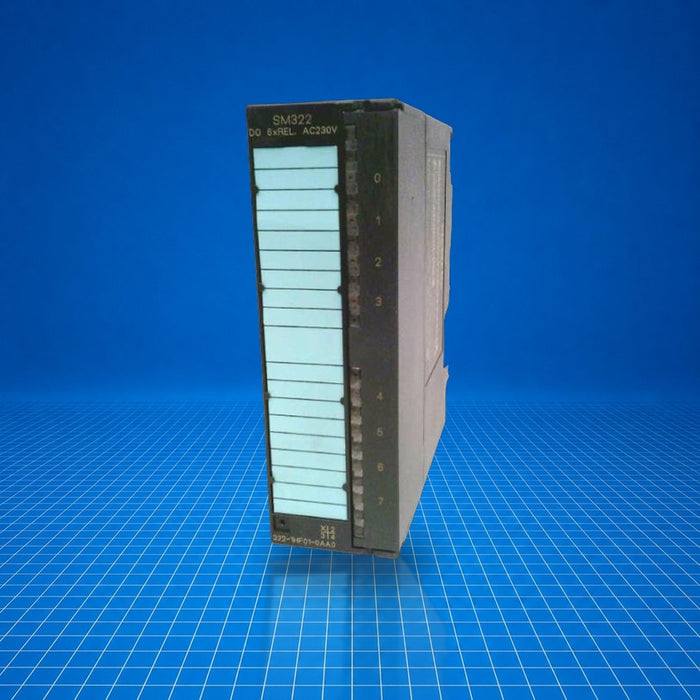

The 6ES7322-1HF01-0AA0 is a SIMATIC S7-300 series digital output module (SM 322) featuring eight relay outputs in an isolated configuration, designed for mounting on the S7-300 backplane. It facilitates control of AC or DC loads (e.g. solenoid valves, contactors, signal lamps) within automated systems. The module supports both 24 V DC and up to 230 V AC loads, enabling its use in general automation tasks, machine control, and signal switching applications where electrical isolation is required.
Best Suited For
- S7-300 control rack I/O expansion
- Switching solenoid valves or contactors
- Controlling AC/DC signal lamps
- Applications requiring channel-to-channel isolation
Digital outputs (relay)
8 channels
Output load voltage range
24 V DC to 230 V AC
Max output current per channel
2 A
Backplane bus consumption
max. 40 mA from 5 V DC
Power dissipation (typical)
3.2 W
Technical Specifications
I/O & Electrical
Number of outputs
8 (relay)
Output load voltage (rated)
24 V DC / 48 V AC / 230 V AC
Output current rated (signal "1")
2 A
Minimum load current
5 mA
Total current of outputs (per group)
max. 4 A
Backplane current consumption
max. 40 mA at 5 V DC
Supply current consumption
max. 160 mA from L+
Power dissipation
typ. 3.2 W
Isolation
Yes, between channels and backplane and between channel groups of 2
Switching frequency (mechanical)
max. 10 Hz
Switching frequency (resistive load)
max. 1 Hz
Switching frequency (inductive, per IEC 60947-5-1)
max. 0.5 Hz
Switching frequency (lamp load)
max. 1 Hz
Useful life, e.g. 24 V DC resistive
0.7 million cycles
Parallel outputs for redundant control
supported (same group)
Parallel outputs for uprating
not supported
Communication & Power
Power supply (L+)
24 V DC
Backplane bus
5 V DC
Physical & Environmental
Module weight
0.312 kg
Packaging dimensions
13.10 × 15.10 × 5.20 cm
Mounting
20-pole front connector to actuator wiring
Cable length, unshielded
max. 600 m
Cable length, shielded
max. 1000 m
Certifications
RoHS compliantWEEE Take-Back
