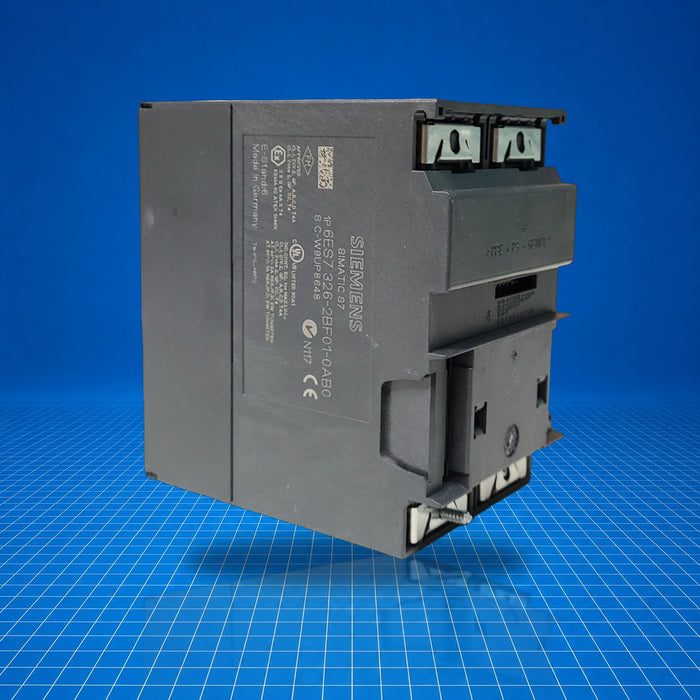

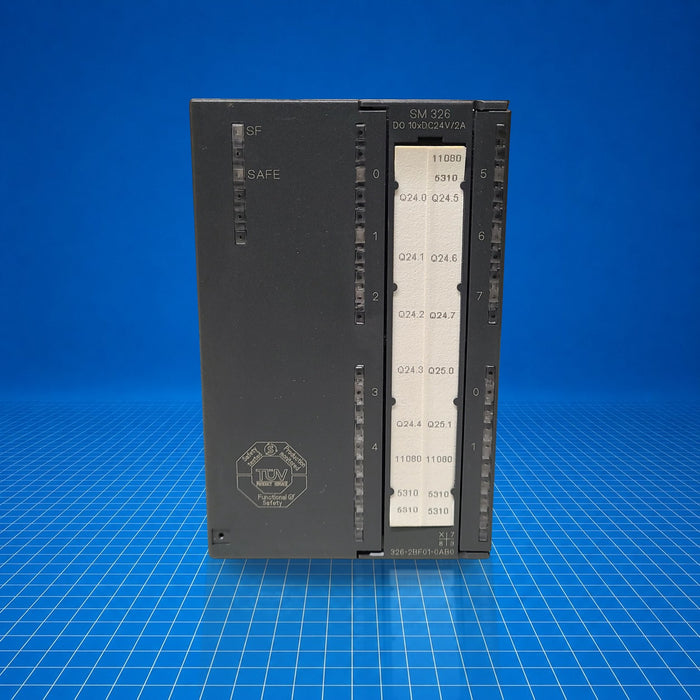

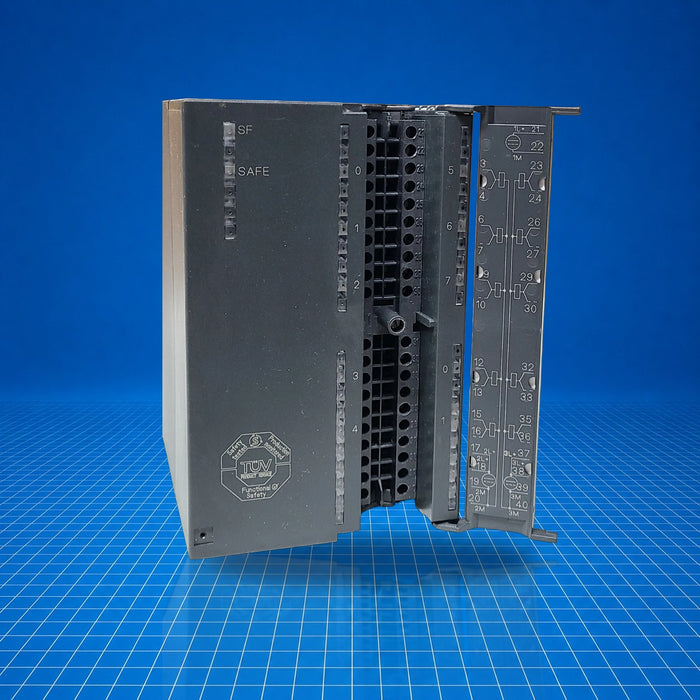

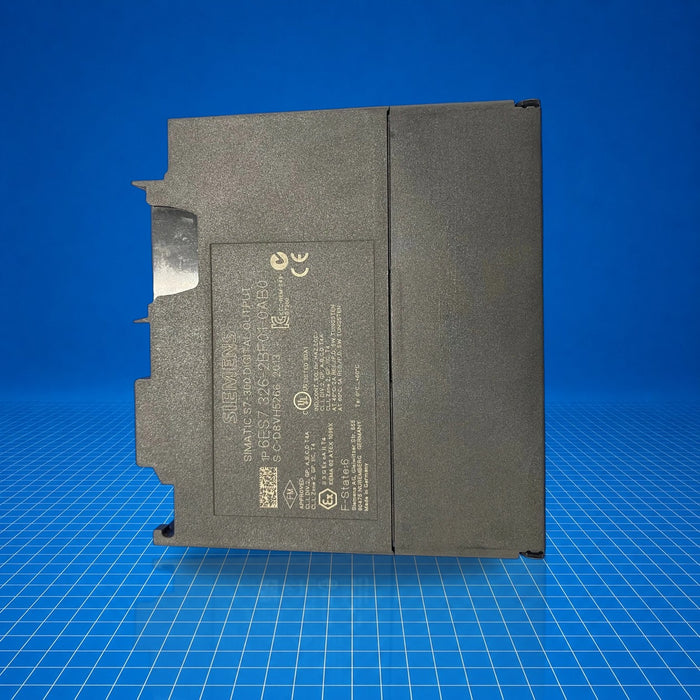

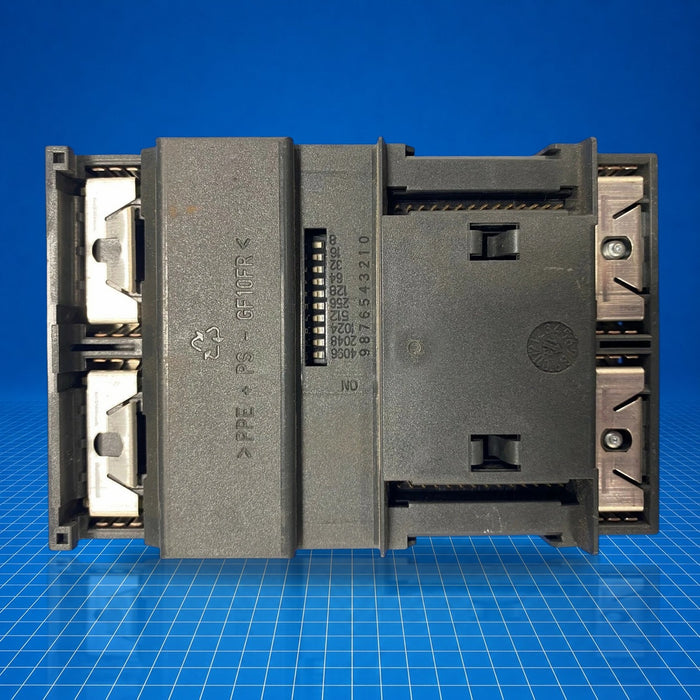

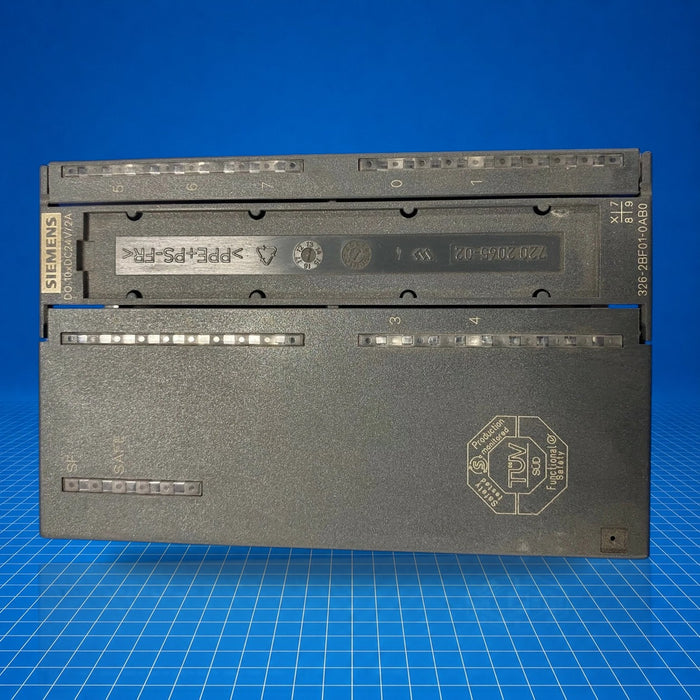

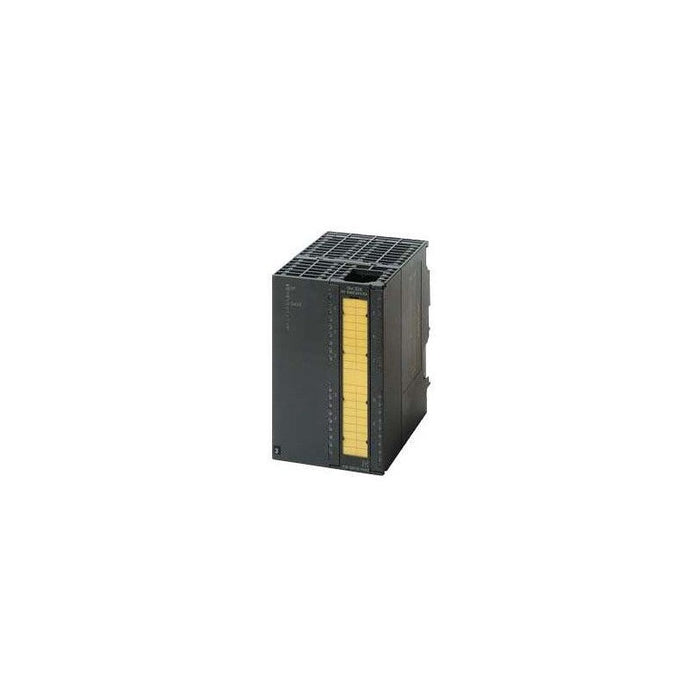

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7326-2BF01-0AB0 Siemens
Original price
$515.58
-
Original price
$2,470.50
Original price
$515.58
$515.58
-
$2,470.50
Current price
$515.58
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7326-2BF01-0AB0 is a SIMATIC S7 fail-safe digital output signal module (SM 326) from Siemens. It provides 10 digital outputs, rated at 24 V DC each, with up to 2 A per channel. Designed for use in S7-300 F-systems, it offers diagnostic functions and safety integration. The module performs control of solenoids, contactors, or signal lamps in safety applications. 6ES7326-2BF01-0AB0 integrates into S7-300 racks and supports both standard and fail-safe operation with per-channel status indication and group fault signaling.
Best Suited For
- SIMATIC S7-300 F safety-integrated systems
- Control of solenoid valves or DC actuators in safety circuits
- Applications requiring per-channel diagnostic status LEDs
- Use where up to Cat.4 (EN 954-1)/SIL3 (IEC 61508)/PLE (ISO 13849) safety level modules are needed
Digital outputs
10 (two isolated groups of 5)
Output voltage
24 V DC rated
Output current per channel
2 A
Module status indicators
Channel-status LEDs, group Fault (SF), SAFE display
Diagnostics
Programmable diagnostics functions, diagnostic alarm
Technical Specifications
I/O & Electrical
Number of outputs
10 (two electrically isolated groups of 5)
Output voltage (rated)
24 V DC
Output current per channel
2 A
Residual current ("0" signal) max.
0.5 mA
Load resistance range up to 40 °C
12 Ω to 3.4 kΩ
Load resistance range up to 60 °C
24 Ω to 3.4 kΩ
Lamp load max.
5 W
Switching frequency (resistive load) max.
10 Hz
Switching frequency (inductive load) max.
2 Hz
Switching frequency (lamp load) max.
10 Hz
Short-circuit protection
Electronic, threshold 2.6-4.5 A; redundant interconnection 5.2-9 A
Physical & Environmental
Mounting position
Horizontal or vertical (ranges vary by orientation)
Weight
0.532 kg
Connector
40-pole rack connection
Certifications
Fail-safe performance applies to 10-year proof-test interval and MTR of 100 h.
