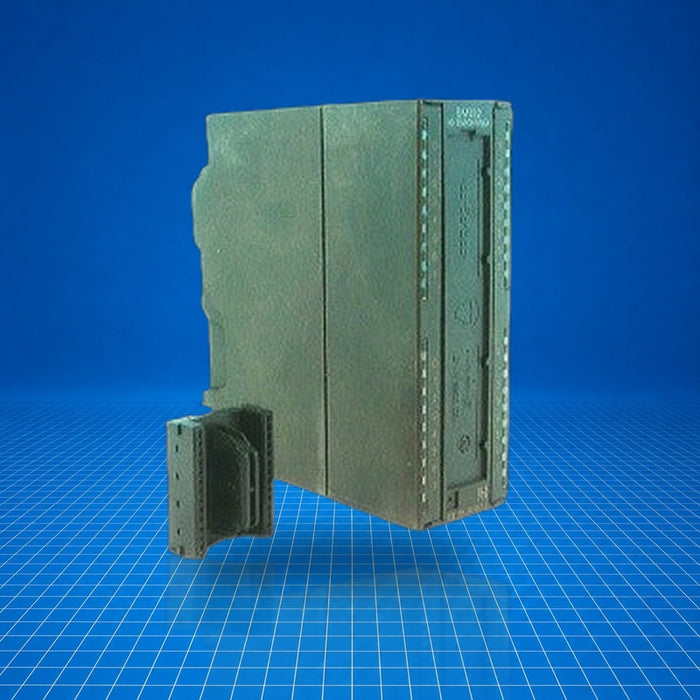

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7331-1KF00-0AB0 Siemens

Name: 6ES7331-1KF00-0AB0 Siemens
Brand: Siemens
SKU: 6ES7331-1KF00-0AB0
Price: 684.75 USD
Availability: InStock

$0.00 - $684.75

$684.75

$0.00 - $684.75

$684.75

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (7) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6ES7331-1KF00-0AB0 is a SIMATIC S7-300 analog input module (SM 331) providing eight isolated analog input channels with 13-bit resolution. It integrates into the S7-300 rack via a 40-pole backplane connector. Designed for measuring voltage, current, resistance, and RTDs such as Pt100, Ni100, Ni1000, and LG-Ni1000, it features a ~66 ms conversion time per channel. Typical uses include process data acquisition, sensor integration, and temperature/resistance monitoring in industrial automation systems. The 6ES7331-1KF00-0AB0 follows platform consistency with the later 1KF02 model.

Best Suited For

Analog signal integration in S7-300 systems
Voltage and current sensor input applications
Resistance thermometer (RTD) measurement
Retrofitting or spare replacement for SM 331 modules

Analog channels

8 (isolated)

Resolution

13 bit

Supported inputs

Voltage, current, resistance, Pt100/Ni100/Ni1000/LG-Ni1000

Backplane supply current

90 mA

Power loss

0.4 W

Technical Specifications

I/O & Electrical

Analog input channels

8

Supported input types

Voltage, current, resistance, RTDs (Pt100, Ni100, Ni1000, LG-Ni1000)

Resolution

13 bit

Destruction limit voltage

30 V (12 V continuous)

Destruction limit current

40 mA

Input resistance, voltage ranges

100 kΩ

Input resistance, current ranges

100 Ω

RTD/resistor input resistance

100 MΩ

Conversion time per channel

~66 ms

Parametrizable integration time

50 / 60 ms

Communication & Power

Backplane bus supply current

90 mA (5 V DC)

Typical power loss

0.4 W

Physical & Environmental

Connector

40-pole backplane connector

Isolation tested to

500 V DC

Maximum cable length (shielded)

200 m (max 50 m at 50 mV)

Dimensions (W × H × D)

40 mm × 125 mm × 117 mm

Weight

≈ 250 g
