6ES7331-1KF01-0AB0 Siemens

Name: 6ES7331-1KF01-0AB0 Siemens
Brand: Siemens
SKU: 6ES7331-1KF01-0AB0
Price: 591.25 USD
Availability: InStock

$591.25 - $2,252.25

$591.25

$591.25 - $2,252.25

$591.25

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

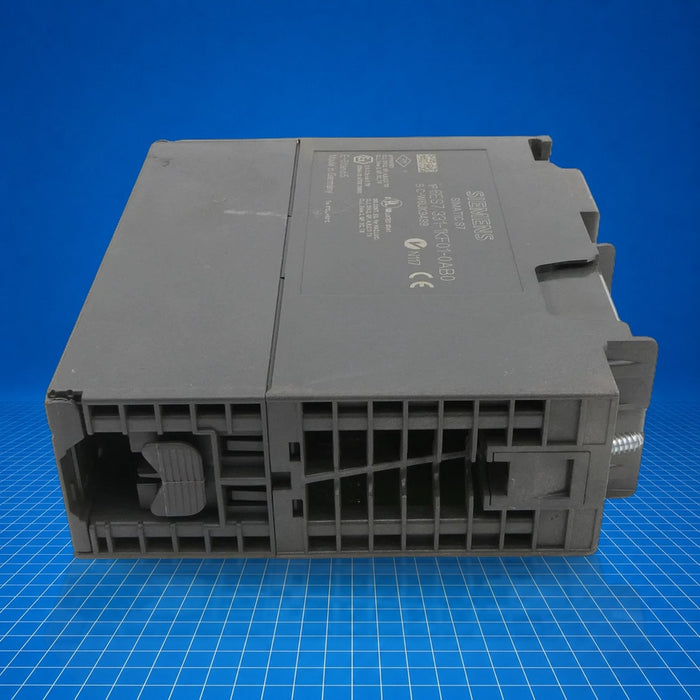

Siemens 6ES7331-1KF01-0AB0 is a SIMATIC S7-300 analog input signal module (SM 331) offering eight isolated measurement channels with 13-bit resolution. It supports measurement of voltage, current, resistance, and Pt100 sensors. The module connects via a 40-pin backplane interface to the S7-300 rack, converting process signals into digital values for the control CPU. Commonly used in industrial automation systems, it is applied in process control, temperature monitoring, and machine-level analog data acquisition. This discontinued module (S7-300 SM 331, part number 6ES7331-1KF01-0AB0) integrates into existing legacy S7-300 infrastructures.

Best Suited For

Expanding analog input capability on S7-300 PLC rack
Voltage/current measurement in process control systems
Resistance and Pt100 temperature sensor integration
Legacy S7-300 systems requiring isolated multi-channel analog input

Analog channels

8

Resolution

13-bit

Channel isolation

Optically isolated

Module status

Discontinued

Technical Specifications

I/O & Electrical

Analog inputs

8 channels

Supported signal types

Voltage, current, resistance, Pt100

Input ranges (voltage)

0 … +10 V, 1 … 5 V, -1 … +1 V, -10 … +10 V, -5 … +5 V, -50 … +50 mV

Input resistance (voltage)

100 kΩ

Input resistance (0 … 20 mA)

100 Ω

Max permissible input voltage (destruction limit)

30 V (12 V continuous)

Max permissible input current (destruction limit)

40 mA

Communication & Power

Power consumption from backplane

5 V DC, max. 90 mA

Typical power loss

0.4 W

Physical & Environmental

Mounting

S7-300 backplane via 40-pin connector

Weight (net)

0.293 kg

Dimensions

13.20 × 15.20 × 5.10 cm

Lifecycle status

Discontinued (since 01 Oct 2012)
