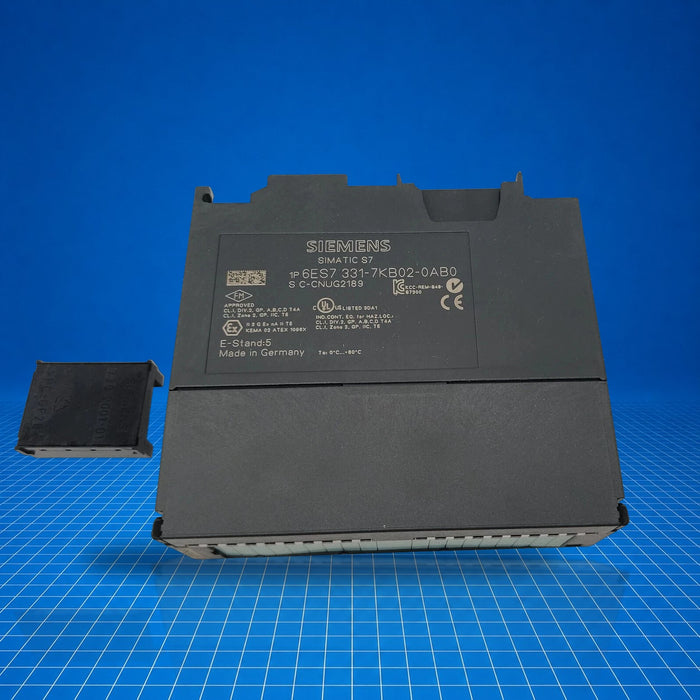

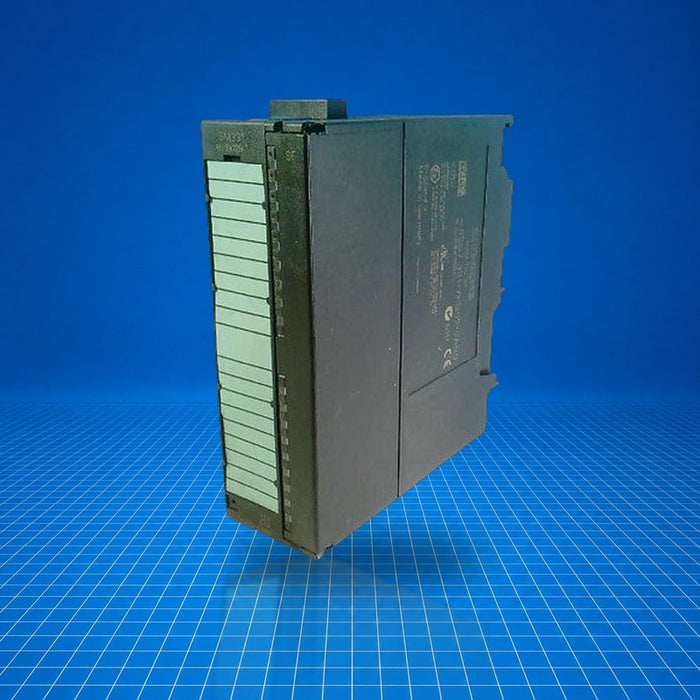

6ES7331-7KB02-0AB0 Siemens

Name: 6ES7331-7KB02-0AB0 Siemens
Brand: Siemens
SKU: 6ES7331-7KB02-0AB0
Price: 372.6 USD
Availability: InStock

$372.60 - $1,364.11

$372.60

$372.60 - $1,364.11

$372.60

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC S7-300 analog input module SM 331, part number 6ES7331-7KB02-0AB0, offers two isolated analog input channels with selectable resolution of 9-/12-/14-bits. It supports voltage, current, thermocouple, resistance thermometer, and resistance measurements, and provides alarm and diagnostic functions. It plugs into the S7-300 backplane and integrates into modular PLC systems. Typical industrial applications include process monitoring, temperature sensing, and analog signal acquisition in machinery or plant control environments.

Best Suited For

Small-scale analog signal acquisition within S7-300 racks
Temperature measurement via thermocouples or RTDs
General voltage/current looping sensor inputs
Upgrades or replacements in legacy S7-300 systems

Analog channels

2

Supported signal types

Voltage, Current, Thermocouple, RTD, Resistance

Supply voltage

24 V DC

Power dissipation

1 W (typical)

Technical Specifications

I/O & Electrical

Analog inputs

2 channels

Supported measurement types

Voltage, Current, Thermocouple, Resistance thermometer, Resistance

Input ranges, voltage

±10 V, ±5 V, ±2.5 V, ±1 V, ±250 mV, ±5 V, 1 V to 5 V

Input resistance (typ)

100 kΩ (1 V to 5 V, ±10 V, ±2.5 V, ±5 V), 10 MΩ (±1 V, ±250 mV)

Current input resistance

25 Ω (0-20 mA, ±10 mA)

Destruction limits

Voltage: 20 V continuous / 75 V for max. 1 s; Current: 40 mA

Communication & Power

Supply voltage

24 V DC

Reverse-polarity protection

Yes

Input current

30 mA from L+, 50 mA from 5 V backplane

Power dissipation (typ)

1 W

Physical & Environmental

Module mounting

Plug-in to S7-300 backplane (20-pole connector)

Weight

0.249 kg
