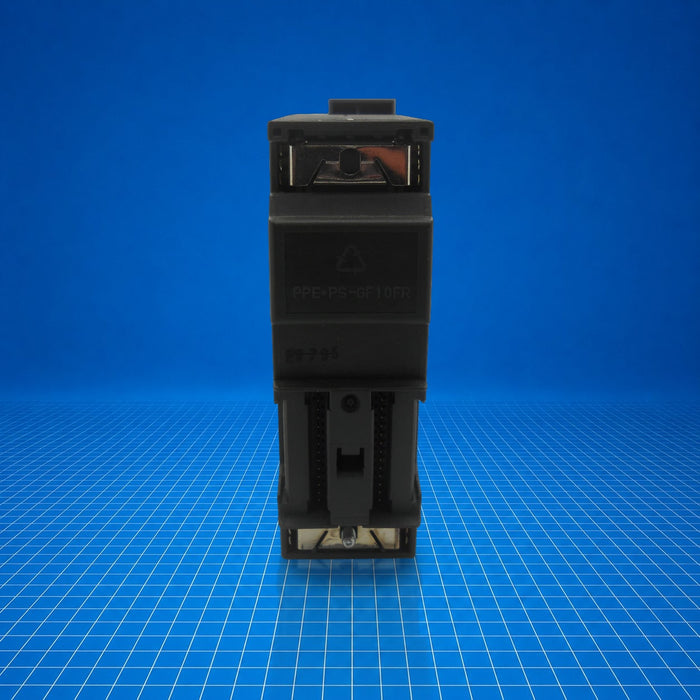

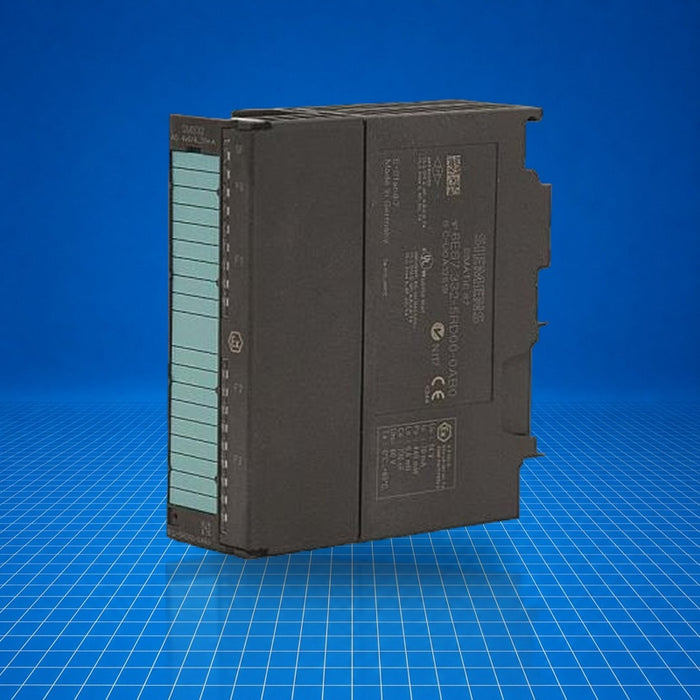

6ES7332-5RD00-0AB0 Siemens
Original price
$599.97
-
Original price
$2,113.25
Original price
$599.97
$599.97
-
$2,113.25
Current price
$599.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

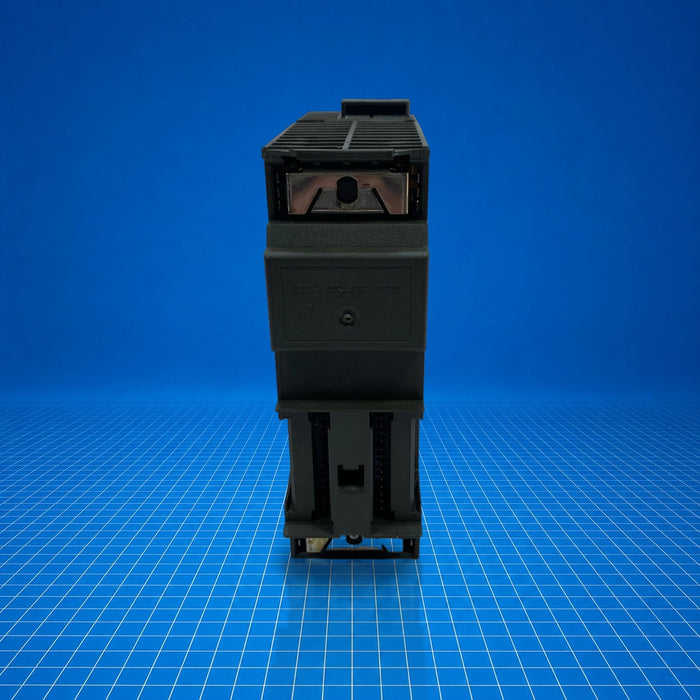

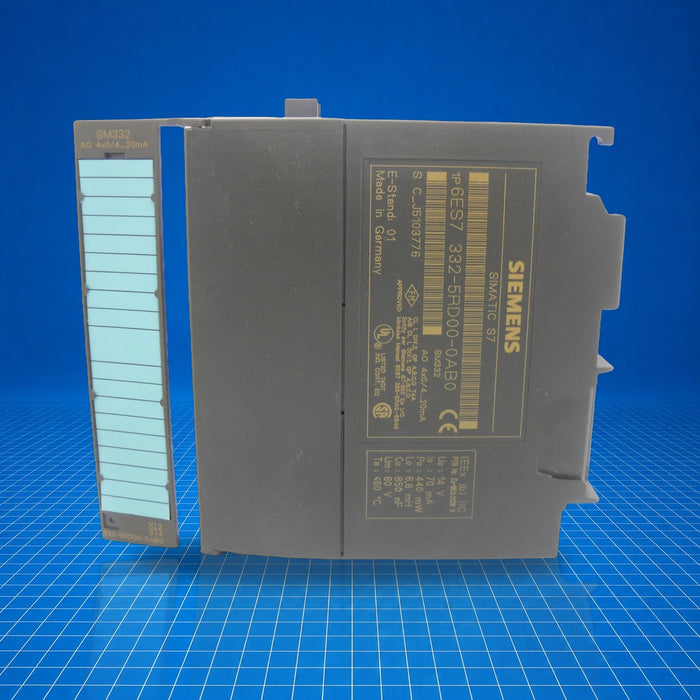

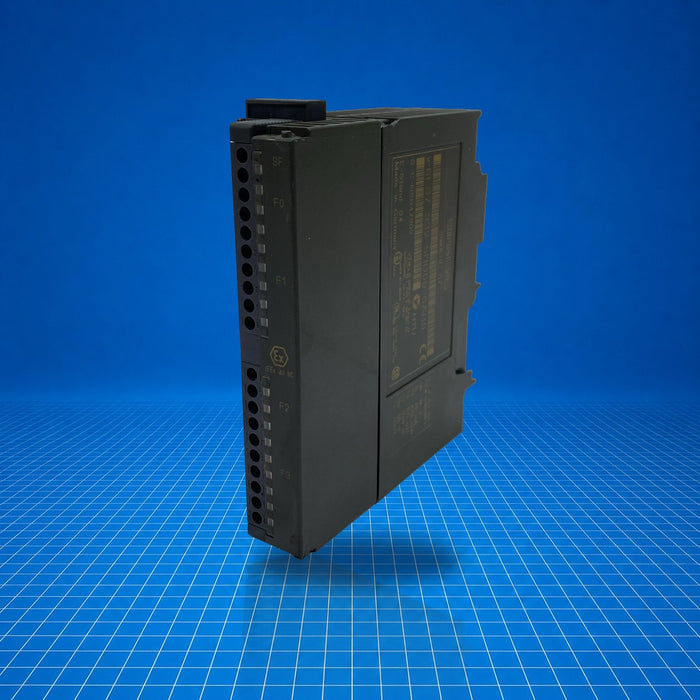

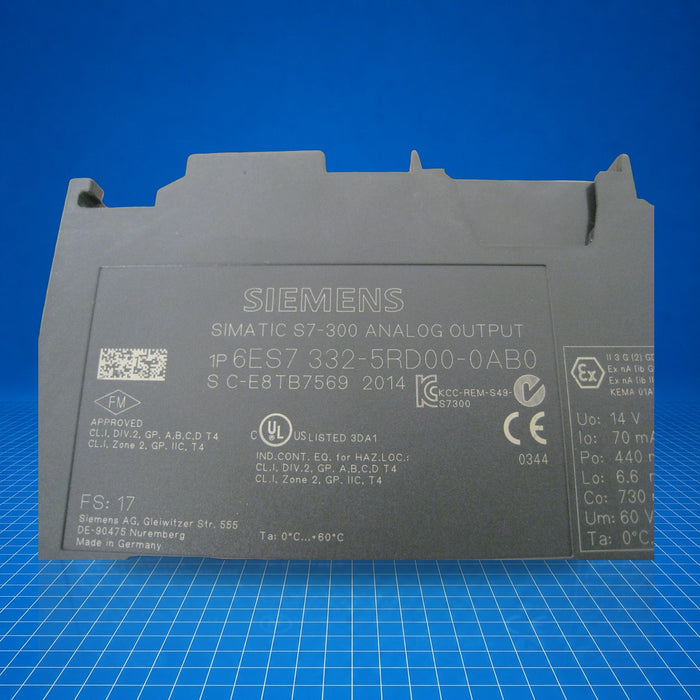

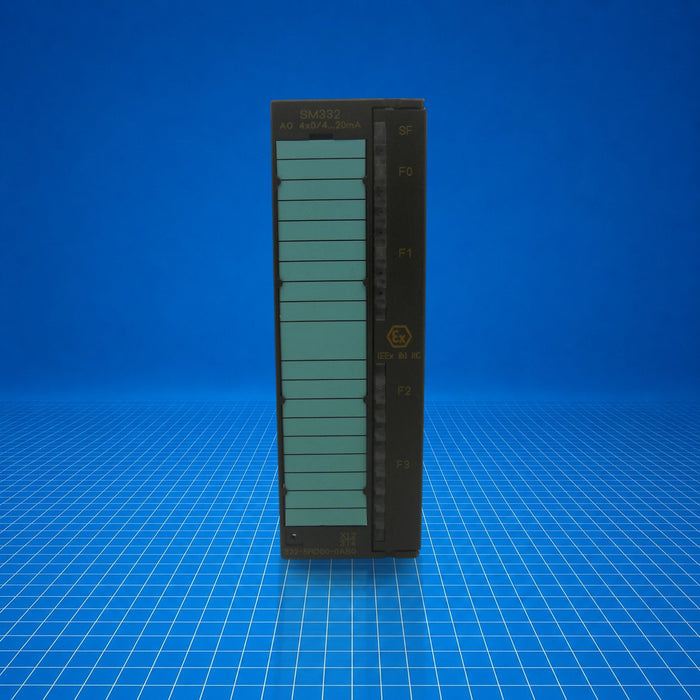

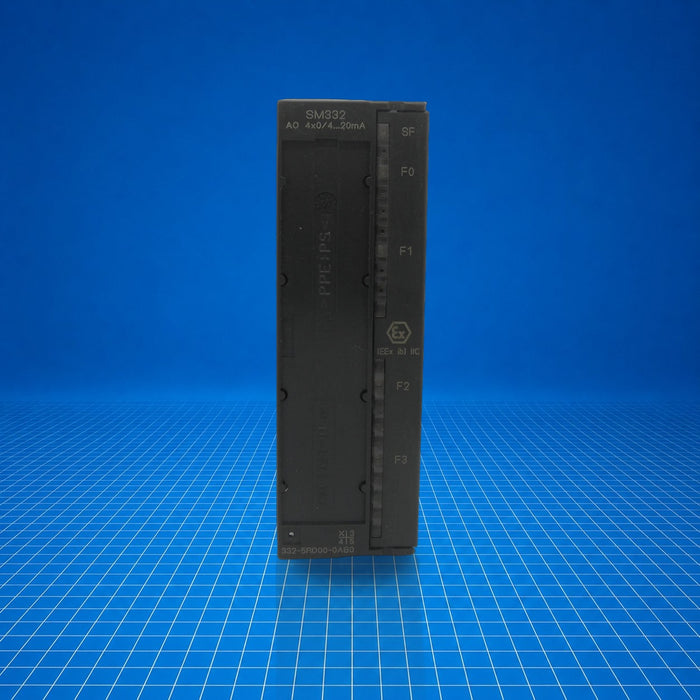

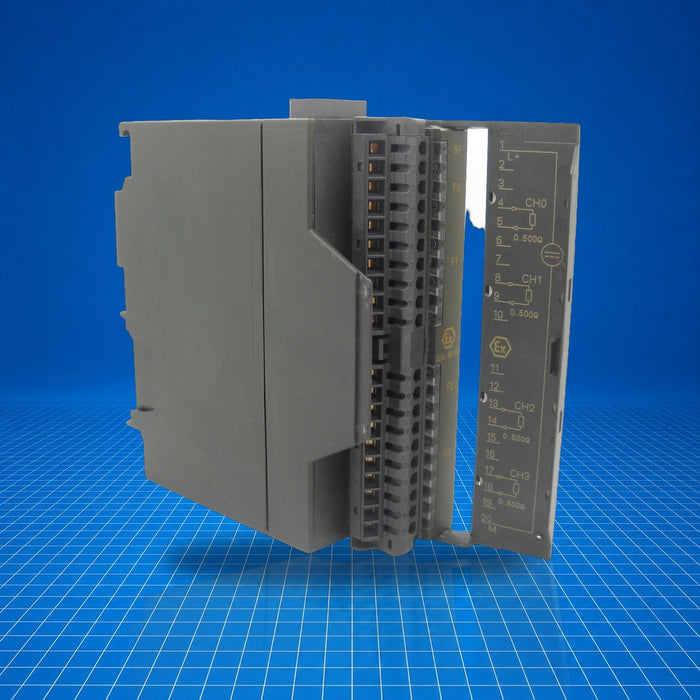

The 6ES7332-5RD00-0AB0 is a SIMATIC S7-300 analog output module (SM 332, isolated, 4 analog outputs) providing 0/4 to 20 mA signal generation. It interfaces with the S7-300 backplane and is suitable for intrinsically safe (Ex i) hazardous-area signal applications, offering diagnostic capabilities and PTB testing. Typically used in process control and distributed I/O systems requiring intrinsically safe 4-20 mA outputs.
Best Suited For
- SIMATIC S7-300 distributed analog output in Ex i hazardous areas
- 4-20 mA current loop control of field instrumentation
- Process control applications requiring diagnostics and isolation
- Replacement in phased-out modules with PTB certification
Analog outputs
4 channels (0/4…20 mA)
Isolation
Yes (isolated)
Diagnostics
Over-range, wire-break, LED indicators
Power loss (typ.)
4 W
Backplane current (5 V)
80 mA
Technical Specifications
I/O & Electrical
Number of analog outputs
4
Output current range
0 to 20 mA, 4 to 20 mA
Max. no-load voltage
14 V
Short-circuit current (voltage output)
70 mA
Max. load impedance (current outputs)
500 Ω
Communication & Power
Supply voltage (L+)
24 V DC
Reverse-polarity protection
Yes
Input current (from L+, no load)
200 mA
Current from backplane bus 5 V
80 mA
Power loss, typical
4 W
Physical & Environmental
Cable length (shielded, max.)
200 m
Resolution per channel
15 bit (including sign)
Certifications
PTB tested
PTB tested; module suitable for Ex i (intrinsically safe) hazardous-area use
