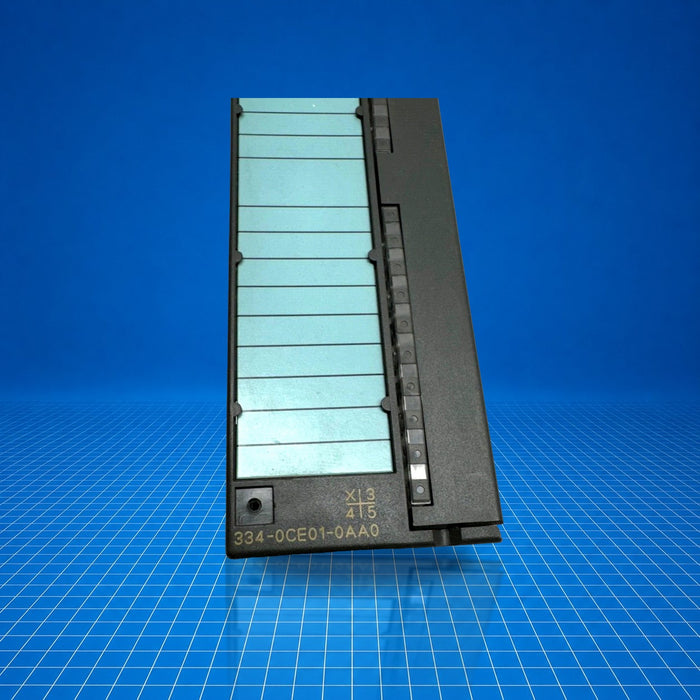

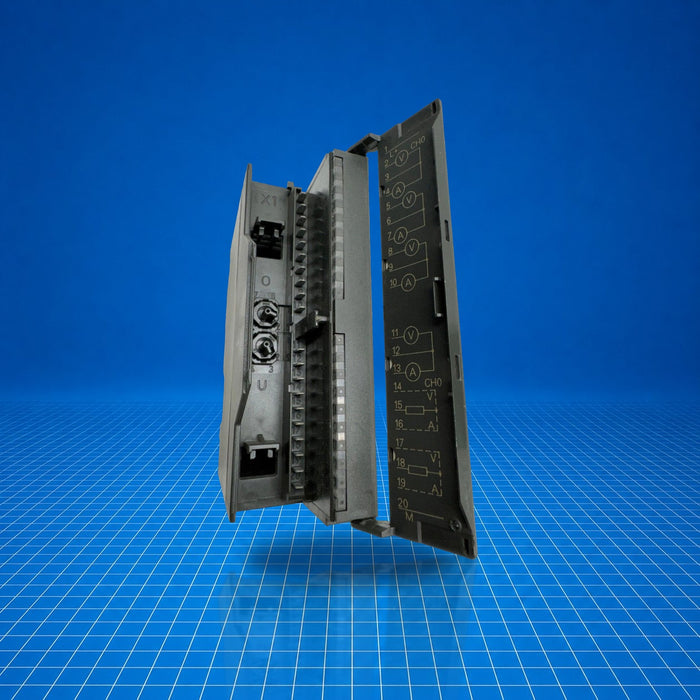

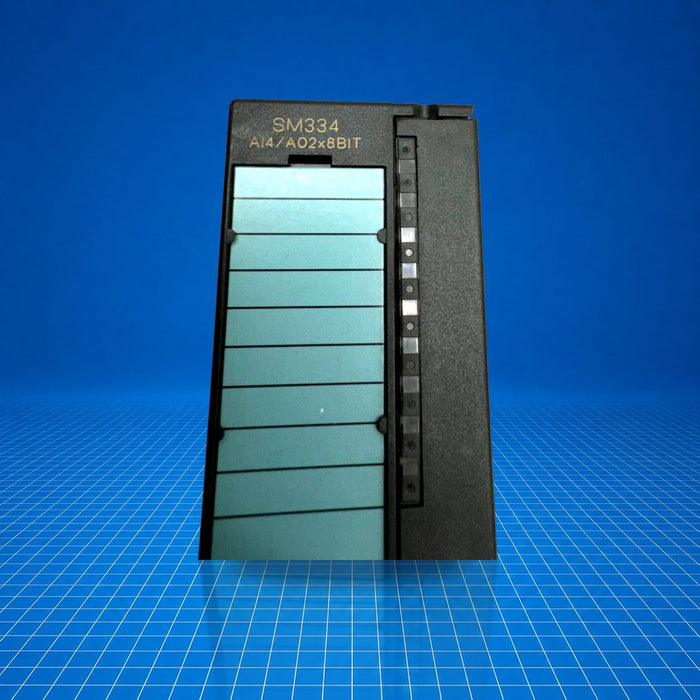

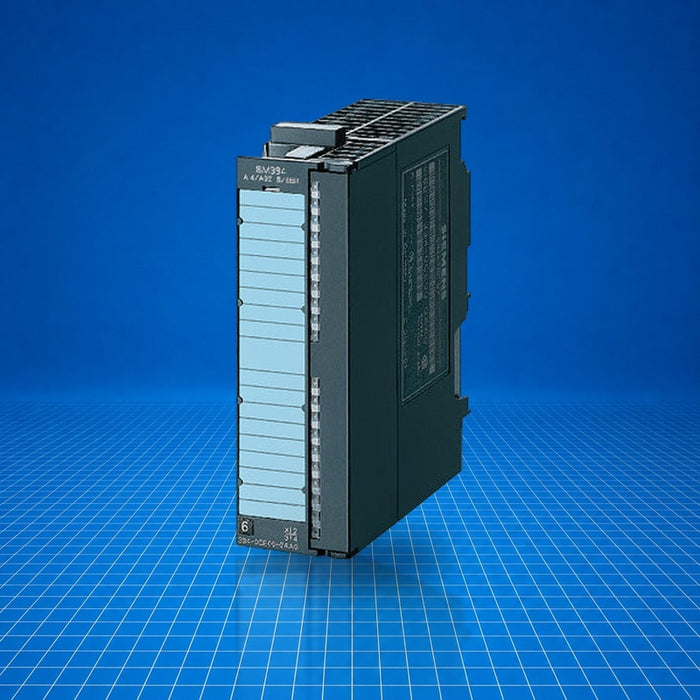

6ES7334-0CE01-0AA0 Siemens
Original price
$363.00
-
Original price
$1,462.50
Original price
$363.00
$363.00
-
$1,462.50
Current price
$363.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens S7-300 analog module SM 334, part number 6ES7334-0CE01-0AA0, provides four analog voltage or current inputs and two analog outputs. It is a non-isolated I/O module mounted on the S7-300 backplane, suitable for signal acquisition and control in process and factory automation. Typical uses include interfacing with sensors or actuators requiring 0-10 V or 0-20 mA signals in mid-range control systems.
Best Suited For
- S7-300 systems requiring mixed analog input/output
- Voltage and current signal interfacing (0-10 V, 0-20 mA)
- Compact modular PLC installations
- Field-level control and monitoring tasks
Analog inputs / outputs
4 AI / 2 AO
Supply voltage
24 V DC
Cycle time (all channels)
5 ms
Power loss
3 W
Weight
0.243 kg
Technical Specifications
I/O & Electrical
Number of analog inputs
4
Number of analog outputs
2
Voltage input range
0 to +10 V
Voltage input resistance
100 kΩ
Current input range
0 to 20 mA
Current input resistance
50 Ω
Permissible input voltage (destruction limit)
20 V
Permissible input current (destruction limit)
40 mA
Voltage output range
0 to 10 V
Current output range
0 to 20 mA
Short-circuit current, voltage output max.
11 mA
No-load voltage, current output max.
15 V
Communication & Power
Supply voltage (DC)
24 V
Input current from L+ (no load)
110 mA
Input current from backplane bus 5 V
55 mA
Power loss, typ.
3 W
Cycle time (all channels)
5 ms
Cable length, shielded max.
200 m
Physical & Environmental
Connection method
20-pin front connector
Net weight
0.243 kg
Dimensions (packaging)
13.10 × 14.90 × 5.20 cm
Mounting
Removable/insertion on active backplane bus
