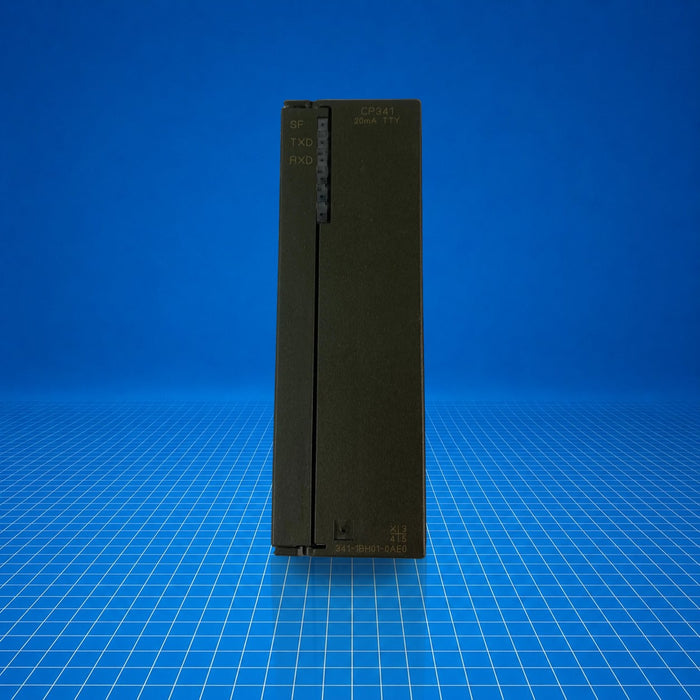

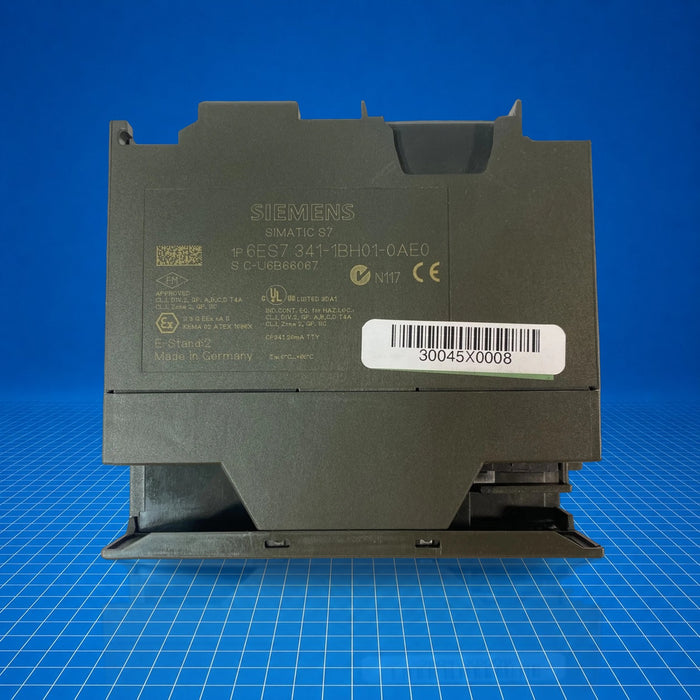

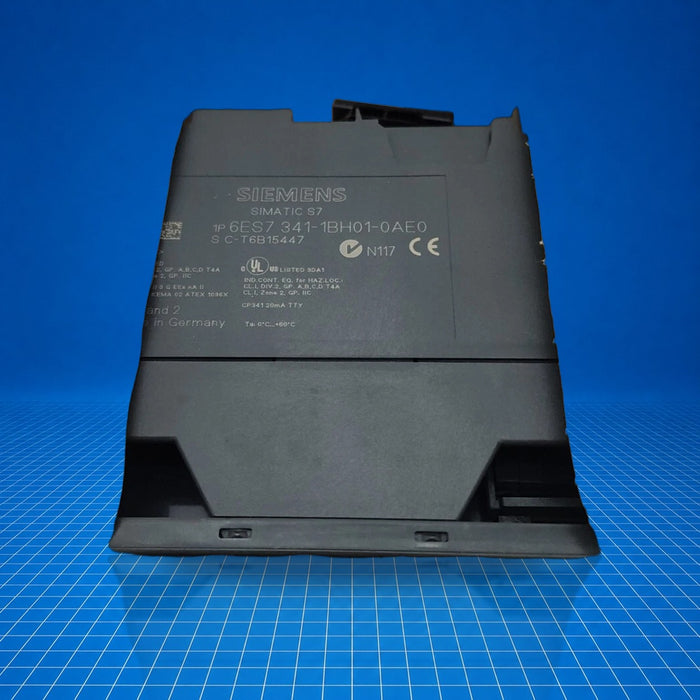

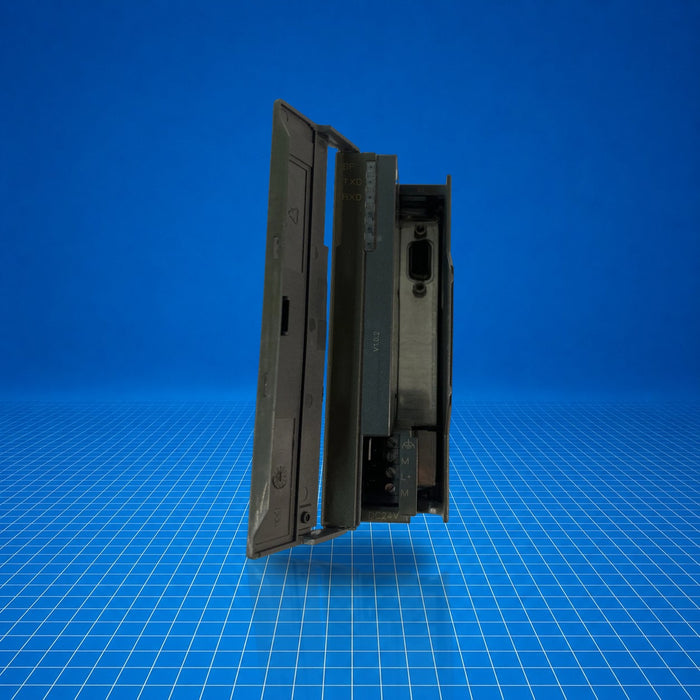

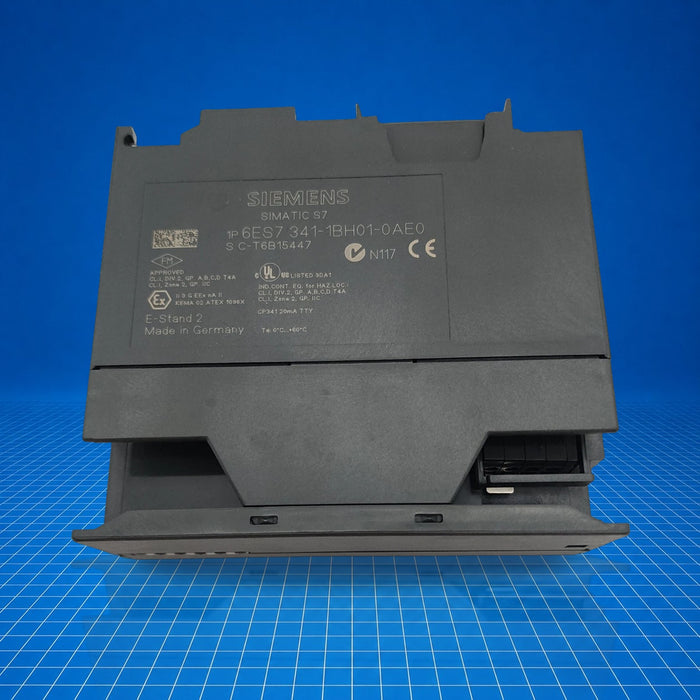

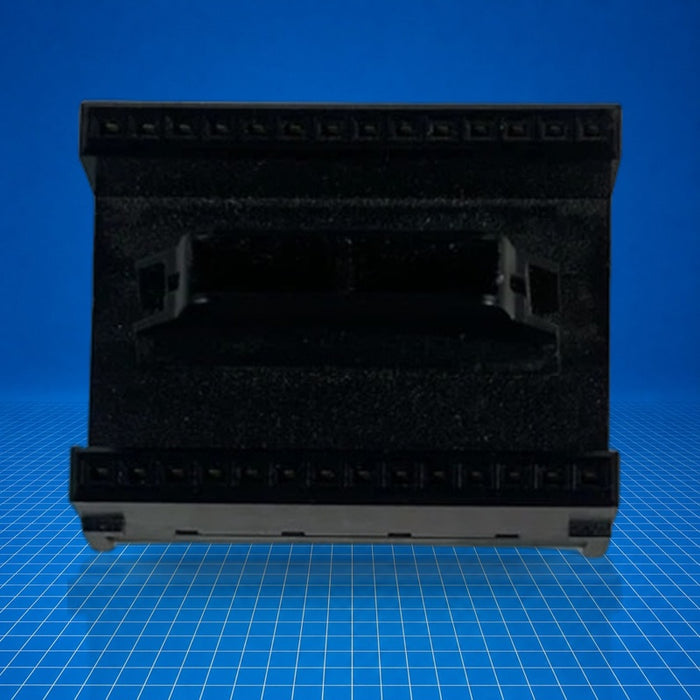

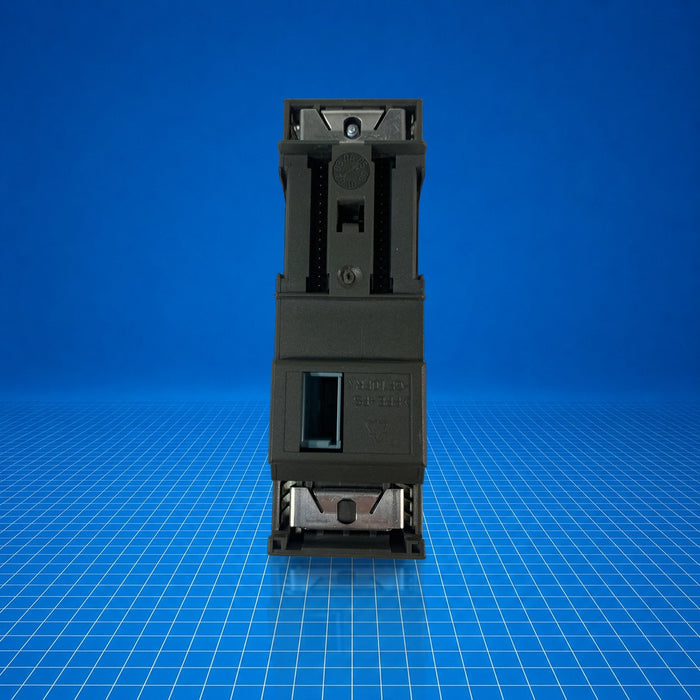

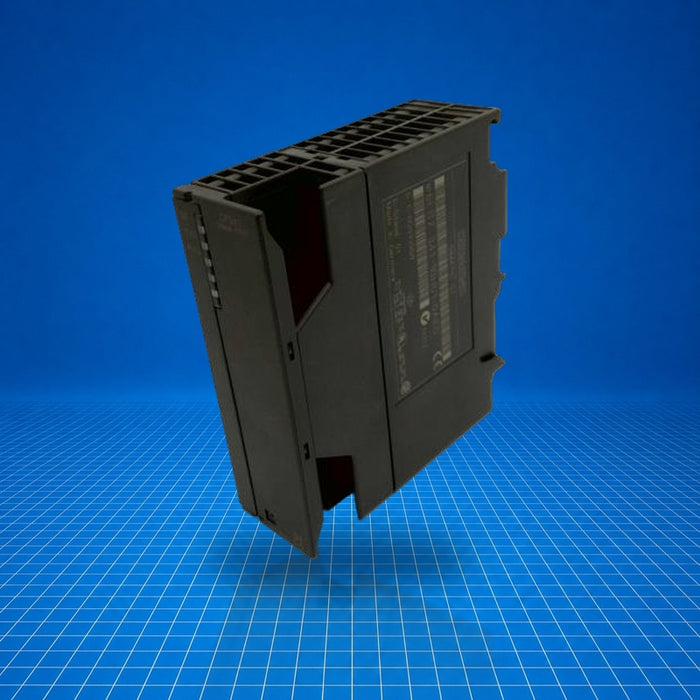

6ES7341-1BH01-0AE0 Siemens
Original price
$1,042.25
-
Original price
$1,962.50
Original price
$1,042.25
$1,042.25
-
$1,962.50
Current price
$1,042.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
SIMATIC S7-300 communication processor CP 341, part number 6ES7341-1BH01-0AE0 is a point-to-point serial interface module using 20 mA TTY signaling. It mounts in the S7-300 rack to enable connection to serial devices or printers via TTY interface. Typical use cases include legacy device communication, industrial point-to-point links, or printer integration in S7-300 automation systems.
Best Suited For
- Serial device integration via TTY link
- Connecting S7-300 to legacy printer over point-to-point
- Migrating or interfacing older equipment with 20 mA signaling
Interface type
20 mA (TTY)
Supply voltage
24 V DC
Power loss (typ.)
1.6 W
Transmission rate (max)
19.2 kbit/s
Ambient operating temperature
0 °C - 60 °C
Technical Specifications
I/O & Electrical
Supply voltage
24 V DC
Input current (L+)
max. 100 mA
Backplane bus 5 V input current
max. 70 mA
Power loss, typical
1.6 W
Power loss, max.
2.4 W
Communication & Power
Interface/bus type
20 mA (TTY)
Number of interfaces
1 (isolated)
Transmission rate, min
0.3 kbit/s
Transmission rate, max
19.2 kbit/s
Cable length (max)
1 000 m
Connector type
9-pin sub-D socket
Protocols supported
3964 (R), ASCII, RK 512 (max telegram 4 096 byte)
Physical & Environmental
Ambient temperature, min (operation)
0 °C
Ambient temperature, max (operation)
60 °C
