Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

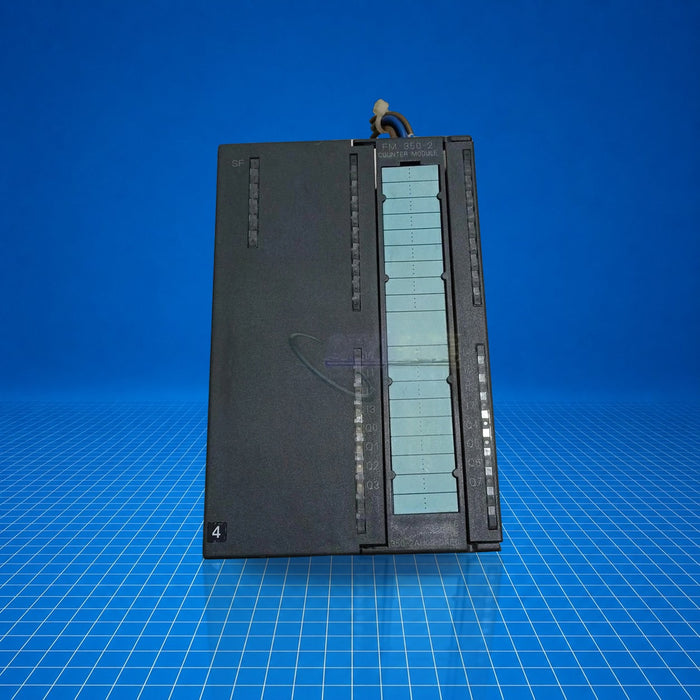

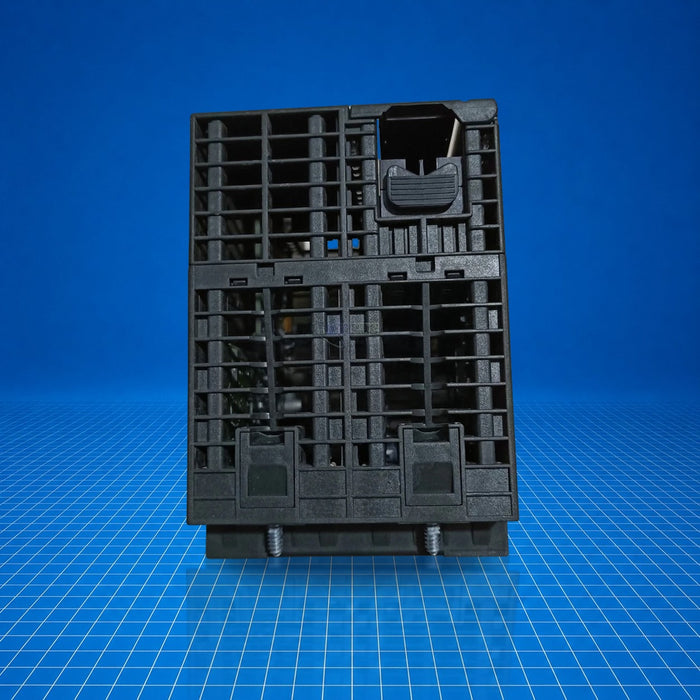

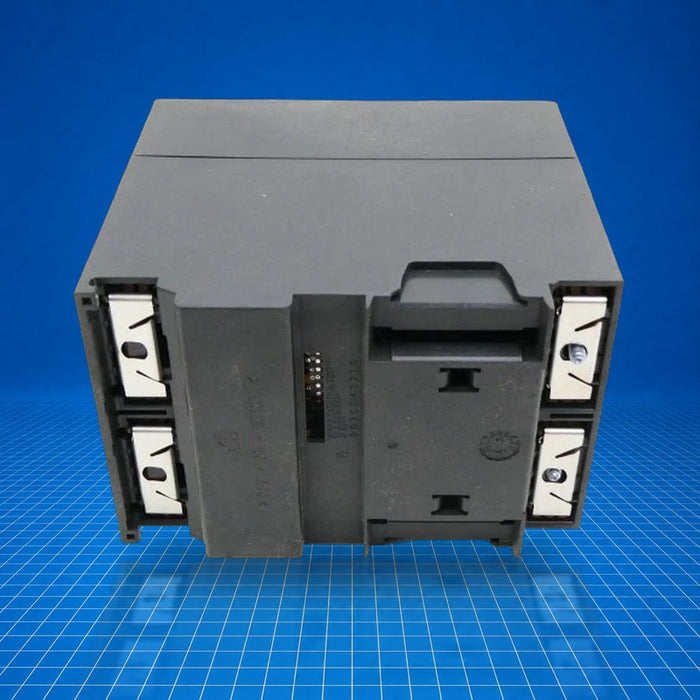

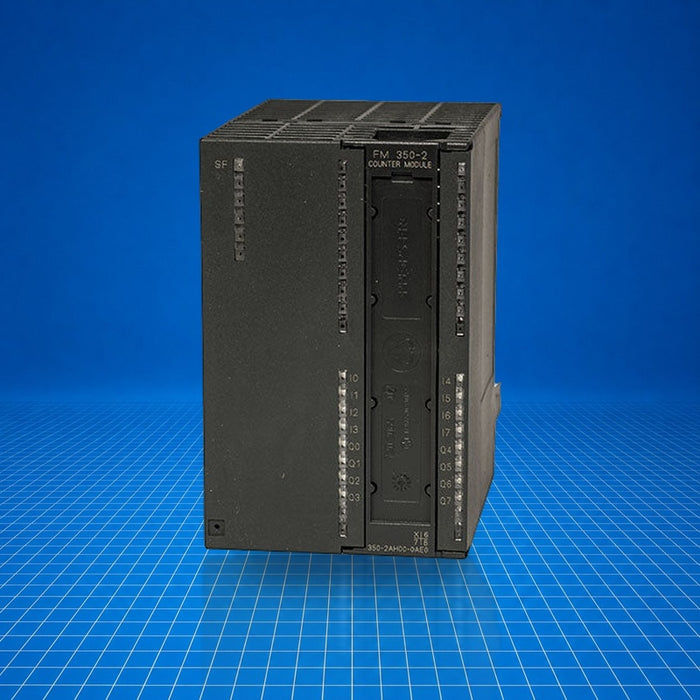

The Siemens 6ES7350-2AH00-0AE0 is a SIMATIC S7-300 FM350-2 eight-channel counter module. It processes signals from 24 V encoders to perform counting, frequency measurement, speed detection, period duration measurement, and proportioning. The module mounts on an S7-300 rack via the backplane bus and is used in industrial automation systems requiring precise counting and encoder signal evaluation. It is commonly applied in material handling, dosing systems, motion monitoring, and packaging machines. 6ES7350-2AH00-0AE0 has been discontinued, with the successor being 6ES7350-2AH01-0AE0.
Best Suited For
- Encoder counting and speed measurement
- Frequency and period duration measurement
- Proportioning/dosing control applications
- Integration in SIMATIC S7-300 automation systems
Channels
8
Encoder Supply Voltage
8.2 V (NAMUR)
Input frequency capability
20 kHz
Auxiliary Voltage Range
20.4 - 28.8 V DC
Technical Specifications
I/O & Electrical
Channels
8 digital/NAMUR inputs
Encoder supply voltage
8.2 V (NAMUR)
Auxiliary voltage (DC)
24 V rated; 20.4 - 28.8 V permissible
Input current (no load)
150 mA (from L+), 100 mA (from 5 V backplane)
Max input frequency
20 kHz
Communication & Power
Backplane bus supply
5 V DC, 100 mA max
Physical & Environmental
Power loss
approx. 10 W typical
Cable length (shielded)
max. 100 m
