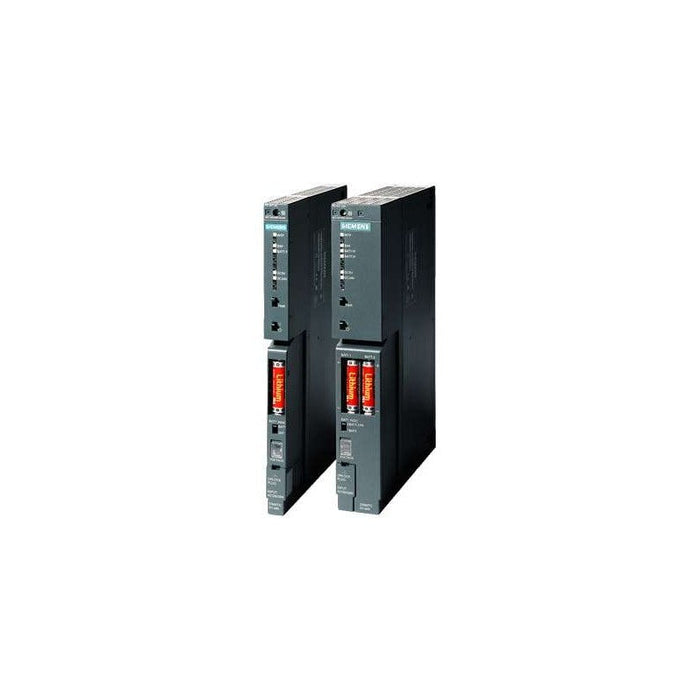

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7405-0DA02-0AA0 Siemens
Original price
$657.25
-
Original price
$1,497.50
Original price
$657.25
$657.25
-
$1,497.50
Current price
$657.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7405-0DA02-0AA0 is a PS 405 series power supply module designed for the SIMATIC S7-400 automation system. It provides both 24 V DC (up to 0.5 A) and 5 V DC (up to 4 A) outputs for the backplane bus and on-board electronics. It accepts a wide DC input range and offers inrush current handling, overload protection, and power-failure buffering. Integration into S7-400 racks makes it suitable for industrial control cabinets in discrete and process automation environments. Part number 6ES7405-0DA02-0AA0 is the standard 4 A variant.
Best Suited For
- SIMATIC S7-400 control rack power supply
- Redundant or single-supply rack configurations
- Control cabinet mounting in industrial automation
- Areas requiring bus-voltage buffering per NAMUR NE 21
Output current (5 V)
4 A
Output current (24 V)
0.5 A
Input voltage range
Static 19.2 to 72 V DC; Dynamic 18.5 to 75.5 V DC
Inrush current
18 A (20 ms FWHM)
Power consumption
48 W (at 24 V DC)
Technical Specifications
I/O & Electrical
Input voltage (static)
19.2 to 72 V DC
Input voltage (dynamic)
18.5 to 75.5 V DC
Output voltage 5 V
5 V DC
Output current 5 V
4 A
Output voltage 24 V
24 V DC
Output current 24 V
0.5 A
Inrush current
18 A (20 ms FWHM)
Communication & Power
Bus-power buffering
>20 ms per NAMUR NE 21
Backup current (power-off)
max 100 µA
In-system battery option
1× lithium AA, 3.6 V/2.3 Ah
Physical & Environmental
Protection class
I, with protective conductor
Overvoltage category
II
Pollution degree
2
Test voltage secondary to PE
700 V DC
Test voltage primary to secondary/PE
2200 V DC
Connection terminals
3× 1.5 mm² solid or stranded (3-9 mm OD)
Dimensions (W×H×D)
25 × 290 × 217 mm
Weight
~760 g
Operating temperature
0 °C to 60 °C (Ta) for FM-approval T4
Certifications
FM-approved T4IEC 61131-2 protective separation
