6ES7405-0KR02-0AA0 Siemens
Original price
$2,108.27
-
Original price
$3,874.50
Original price
$2,108.27
$2,108.27
-
$3,874.50
Current price
$2,108.27
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

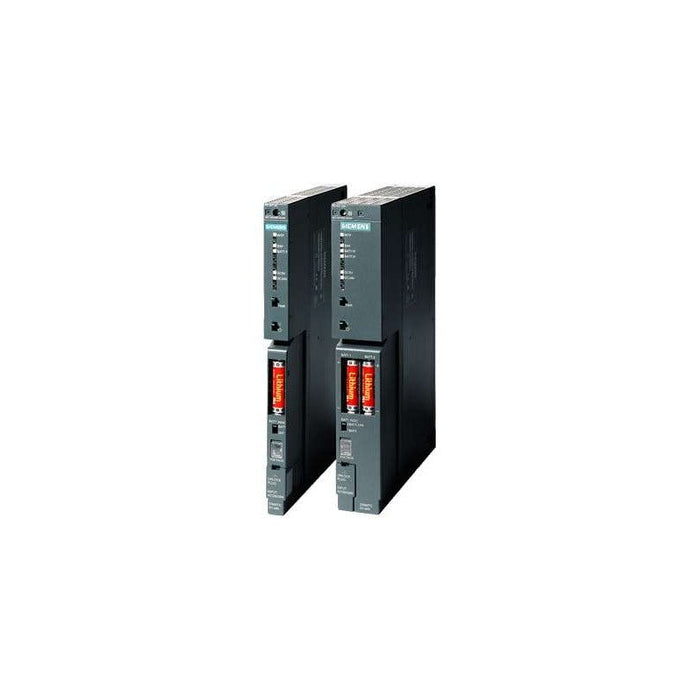

The 6ES7405-0KR02-0AA0 is a Siemens SIMATIC S7-400 PS405 10 A R redundant power supply module. It provides dual-output DC power (5 V and 24 V) to the S7-400 backplane, with selectable input ranges of 24, 48, or 60 V DC. Designed for use in redundant power architectures, it delivers uninterruptible operation in medium- to large-scale industrial control systems such as manufacturing lines, process plants, and infrastructure automation.
Best Suited For
- Redundant power feed in S7-400 racks
- Continuous operation under supply failure
- Backplane power provision (5 V/24 V)
- SIMATIC S7-400 control systems
Redundant supply capability
Yes
Input voltage range
24 / 48 / 60 V DC
Backplane output currents
5 V:10 A, 24 V:1 A
Power consumption
95 W
Technical Specifications
I/O & Electrical
Rated input voltages
24 V DC; 48 V DC; 60 V DC
Permitted input range (static)
19.2 to 72 V DC
Permitted input range (dynamic)
18.5 to 75.5 V DC
Input current at 24 V DC
4 A
Input current at 48 V DC
2 A
Input current at 60 V DC
1.6 A
Inrush current, max
18 A (20 ms FWHM)
Output voltage
5 V DC; 24 V DC
Backplane bus output current (5 V)
10 A (no base load required)
Backplane bus output current (24 V)
1 A (idling-proof)
Short-circuit protection
Yes
Communication & Power
Power consumption
95 W
Power loss
20 W
Backup stored-energy time
>20 ms (NAMUR NE 21)
Backup battery (optional)
2× lithium AA, 3.6 V / 2.2 Ah
Backup current when power off
≤100 µA
Physical & Environmental
Slots required
2
Equipment protection class
I (with protective conductor)
Overvoltage category
II
Pollution degree
2
Primary-secondary isolation test voltage
2200 V DC
Secondary-PE isolation test voltage
700 V DC
Weight (net)
approx. 1.2 kg
Width × Height × Depth
50 mm × 290 mm × 217 mm
Certifications
RoHSWEEENAMUR NE 21 complianceIEC 61131-2 protective separation
