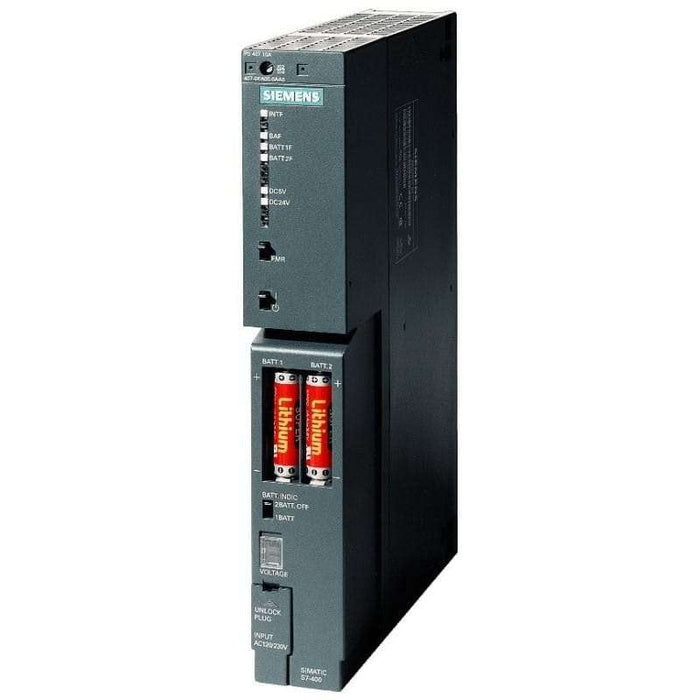

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7405-0KR02-0AA1 Siemens
Original price
$0.00
-
Original price
$3,240.00
Original price
$3,240.00
$0.00
-
$3,240.00
Current price
$3,240.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7405-0KR02-0AA1 is a PS 405 10 A R series power supply module for the SIMATIC S7-400 automation platform. It converts a wide-range DC input (24/48/60 V) to dual outputs (5 V DC and 24 V DC) for backplane and system power, with integrated redundancy support for enhanced system availability. It incorporates mains buffering according to NAMUR NE 21 and optional AA-battery backup, suitable for industrial applications such as process control systems, redundant PLC configurations, and extended-temperature installations.
Best Suited For
- Redundant S7-400 PLC power architectures
- Applications requiring >20 ms voltage-failure buffering via NAMUR NE 21
- Process control environments with extended temperature or conformal coating needs
- Systems needing both 5 V and 24 V DC outputs for backplane and external loads
Input voltage range
19.2-75.5 V DC
Output currents
5 V DC: 10 A; 24 V DC: 1 A
Mains buffering time
>20 ms (NAMUR NE 21)
Power loss (typ.)
20 W
Backup battery (optional)
2 × AA lithium, 3.6 V/2.2 Ah
Technical Specifications
I/O & Electrical
Input voltage range (static)
19.2-72 V DC
Input voltage range (dynamic)
18.5-75.5 V DC
Rated input current at 24 V DC
4 A
Rated input current at 48 V DC
2 A
Rated input current at 60 V DC
1.6 A
Inrush current, max.
18 A, 20 ms FWHM
Output voltage
5.1 V DC and 24 V DC
Output current (5 V)
10 A
Output current (24 V)
1 A
Short-circuit protection
Yes
Communication & Power
Power consumption (input)
95 W
Power loss (typical)
20 W
Backup current when off
≤100 µA
Backup battery
2 × AA lithium, 3.6 V/2.2 Ah
Physical & Environmental
Protection class
I (protective conductor)
Overvoltage category
II
Pollution degree
2
Slots required
2
Protective separation
Yes (primary/secondary)
