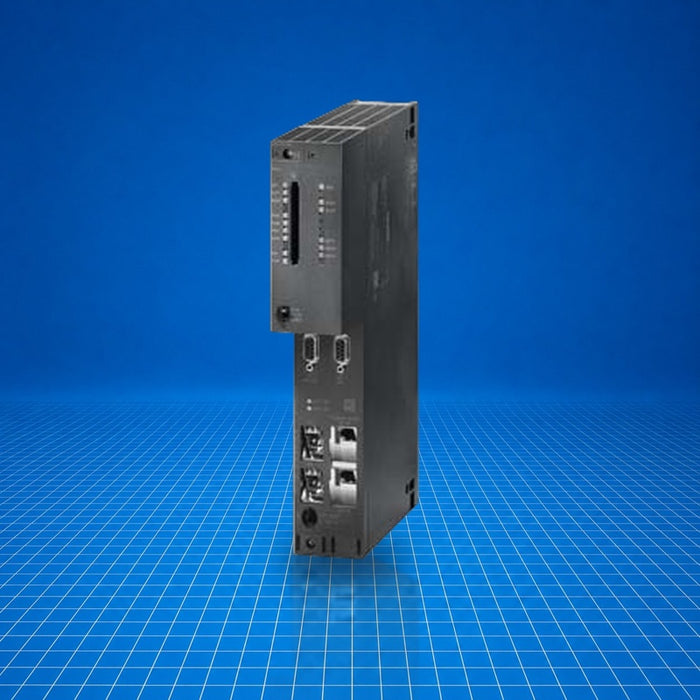

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7412-5HK06-0AB0 Siemens
Original price
$2,870.25
-
Original price
$4,850.28
Original price
$2,870.25
$2,870.25
-
$4,850.28
Current price
$2,870.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The SIMATIC S7-400H CPU 412-5H (part number 6ES7412-5HK06-0AB0) is a central processing unit within the S7-400H and S7-400F/FH fault-tolerant automation platform. It provides five communication interfaces (MPI/DP, DP, PROFINET, and two sync module ports) and 1 MB of integrated RAM (512 KB for data, 512 KB for program), expandable via flash memory card. Used in industrial control systems for high-availability applications where redundancy and synchronization are required. Part number 6ES7412-5HK06-0AB0.
Best Suited For
- Redundant S7-400H control systems
- High-availability manufacturing lines
- Process synchronization with sync modules
- Industrial plants requiring fault-tolerant CPU redundancy
Integrated memory (data/program)
512 kbyte / 512 kbyte
Communication interfaces
MPI/DP, DP, PROFINET, 2 sync module ports
Power loss (typical)
7.5 W
Backplane current (5 V typ.)
1.6 A
Dimensions (W × H × D)
50 mm × 290 mm × 219 mm
Technical Specifications
I/O & Electrical
Backplane bus current (5 V, typ.)
1.6 A
Backplane bus current (5 V, max.)
1.9 A
Backplane bus current (24 V, max.)
150 mA; per DP interface
Interface 5 V DC, max.
90 mA; per DP interface
Communication & Power
Power loss (typical)
7.5 W
Physical & Environmental
Dimensions (W × H × D)
50 mm × 290 mm × 219 mm
Weight
995 g
Certifications
ULChina RoHSEU Declaration of ConformityUK Declaration of ConformityCCS
UL, China RoHS, EU and UK Declarations of Conformity, CCS (China Classification Society)
