6ES7414-3EM06-0AB0 Siemens

Name: 6ES7414-3EM06-0AB0 Siemens
Brand: Siemens
SKU: 6ES7414-3EM06-0AB0
Price: 4374.98 USD
Availability: InStock

$4,374.98 - $18,609.30

$4,374.98

$4,374.98 - $18,609.30

$4,374.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

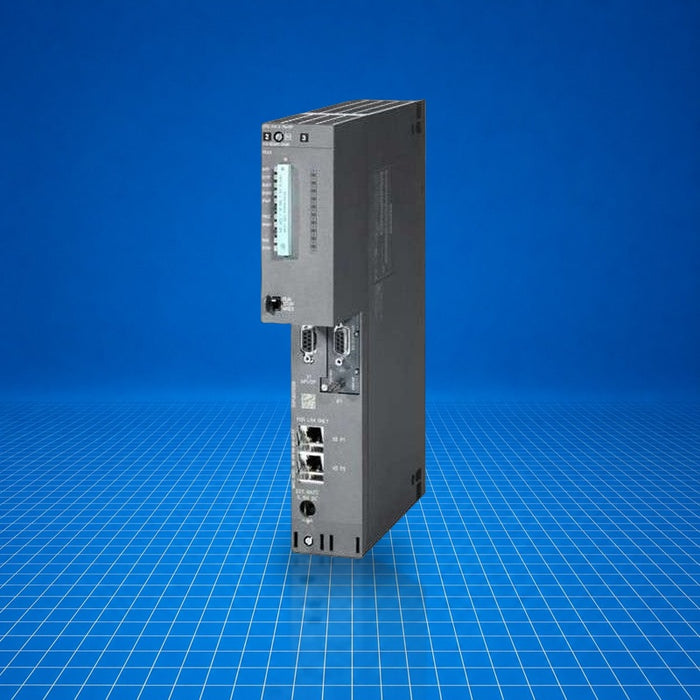

The SIMATIC CPU 414-3 PN/DP (6ES7414-3EM06-0AB0) is a central processing unit module for the Siemens SIMATIC S7-400 automation platform. It provides 4 MB of work memory (2 MB program, 2 MB data), supports both PROFIBUS DP and PROFINET communication via MPI/DP and Ethernet interfaces, and accepts a plug-in IF 964-DP interface. Positioned for mid-to-large scale industrial automation, this CPU executes control logic, handles communication and synchronization in distributed systems. Common applications include manufacturing process control, batching systems, and complex machine automation requiring deterministic networking and modular I/O expansion.

Best Suited For

Distributed control via PROFIBUS DP networks
Ethernet-based communication in S7-400 systems
Configuration-in-RUN (CiR) system updates
Memory-intensive control applications (up to 4 MB work memory)

Work memory

4 Mbyte (2 Mbyte program, 2 Mbyte data)

Communication interfaces

MPI/DP 12 Mbit/s, Ethernet/PROFINET, IF 964-DP

Power loss (typ.)

6.5 W

Backplane power (5 V)

typ. 1.3 A, max. 1.5 A

Memory expandability

Up to 64 Mbyte via memory card (FLASH/RAM)

Technical Specifications

I/O & Electrical

Backplane bus 5 V input current (typ.)

1.3 A

Backplane bus 5 V input current (max.)

1.5 A

Backplane bus 24 V input current (max.)

300 mA (150 mA per DP interface)

Interface 5 V input current (max.)

90 mA per DP interface

Power loss (typ.)

6.5 W

Communication & Power

Communication ports

MPI/DP 12 Mbit/s, Ethernet/PROFINET, plug-in IF 964-DP

Physical & Environmental

Memory type

RAM; expandable via memory card (FLASH/RAM) up to 64 Mbyte

Backup battery current (typ.)

125 µA (up to 40 °C)

Backup battery current (max.)

450 µA
