6ES7414-5HM06-0AB0 Siemens

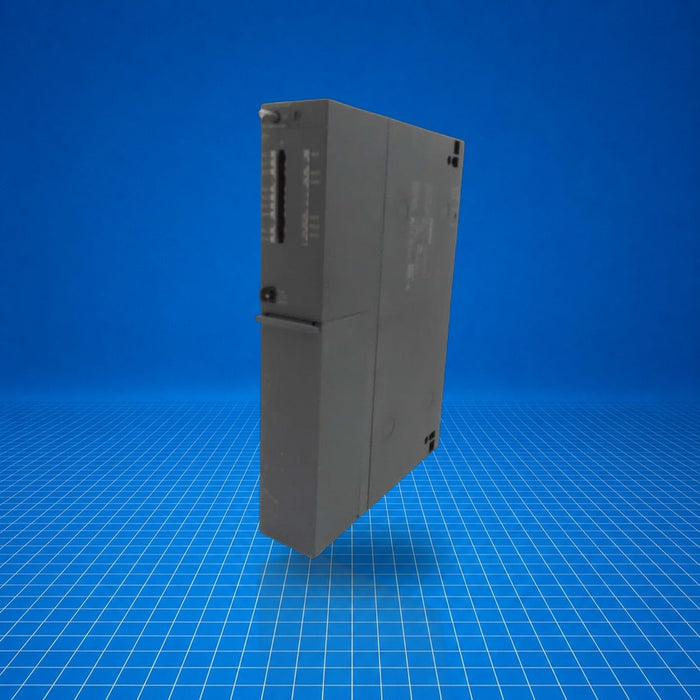

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7414-5HM06-0AB0 Siemens

$0.00 - $4,256.84
$4,256.84
$0.00 - $4,256.84
$4,256.84
Surplus - Tested (With Warranty)
Need a Specific Revision?
$4,256.84
2 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6ES7414-5HM06-0AB0 is a SIMATIC S7-400H CPU 414-5H PN/DP central processing unit by Siemens, for use in high-availability and fail-safe S7-400H and S7-400F/FH automation systems. It provides deterministic and redundant control capabilities in demanding industrial environments. Equipped with multiple communication interfaces and substantial memory, it is used in architecture requiring synchronized redundancy, fail-safe safety logic, or high-reliability process control.

Best Suited For

  • High-availability S7-400H systems
  • Synchronized redundant control with sync modules
  • Mixed PROFINET and PROFIBUS DP networks
  • Applications requiring onboard memory expansion (via memory card)
  • Industrial control requiring rigorous certification (e.g. maritime)
Memory (work)
4 Mbyte (2 Mbyte program / 2 Mbyte data)
Interfaces
1× MPI/DP, 1× DP, 1× PN, 2× sync
Power loss (typ.)
7.5 W
Backplane current (5 V DC typ.)
1.6 A

Technical Specifications

I/O & Electrical

Backplane bus current (5 V DC, typ.)
1.6 A
Backplane bus current (5 V DC, max.)
1.9 A
Backplane bus current (24 V DC, max.)
150 mA
DP interface current (5 V DC, max.)
90 mA per DP interface

Communication & Power

Interfaces
1× MPI/DP, 1× DP, 1× PN, 2× sync
Power loss (typ.)
7.5 W

Physical & Environmental

Firmware version (min)
V6.0
Memory card (FEPROM) expandable to
64 Mbyte
Integrated RAM max
512 kbyte
Expandable RAM max
64 Mbyte
Backup battery current (typ.)
180 µA up to 40 °C
Backup battery current (max.)
1 000 µA
Weight
1.320 kg
Packaging dimensions
23.30 × 30.10 × 6.30 cm
Compliance
RoHS, WEEE, REACH

Certifications

Bureau VeritasLloyd's RegisterPRSRINARoHSWEEEREACH

Test certificates available; maritime approvals from Bureau Veritas, Lloyd's Register, PRS, RINA; environmental profiles (EPD Typ II/III, Siemens EcoTech Profile) available.
