6ES7416-2XN05-0AB0 Siemens
Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7416-2XN05-0AB0 Siemens

$799.84 - $3,552.39
$799.84
$799.84 - $3,552.39
$799.84
Surplus - Tested (With Warranty)
Need a Specific Revision?
$799.84
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$3,552.39
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

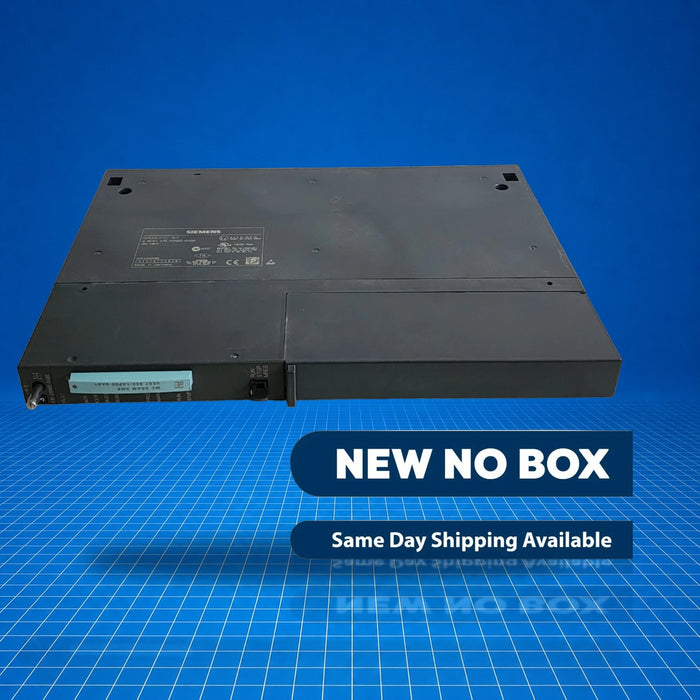

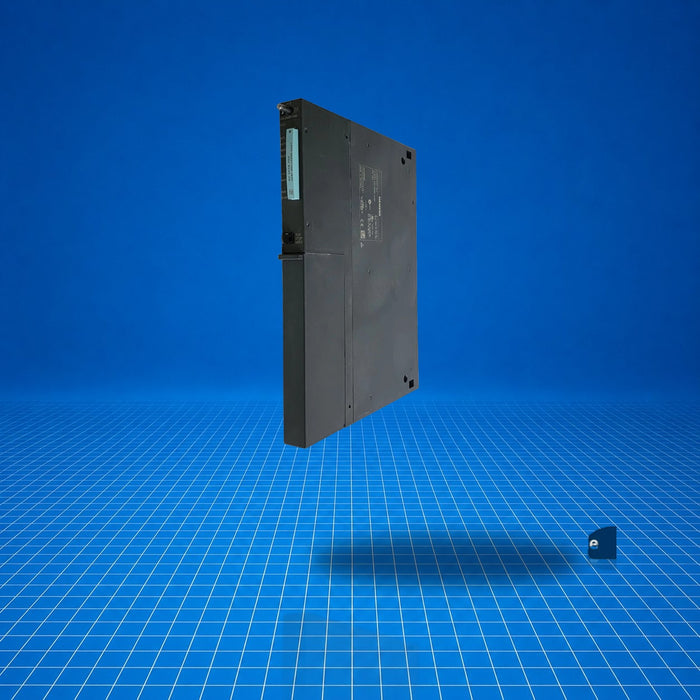

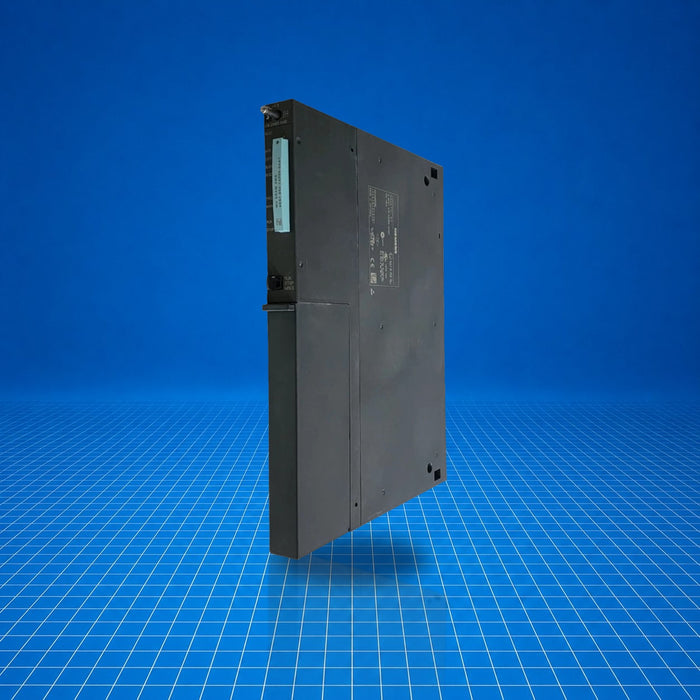

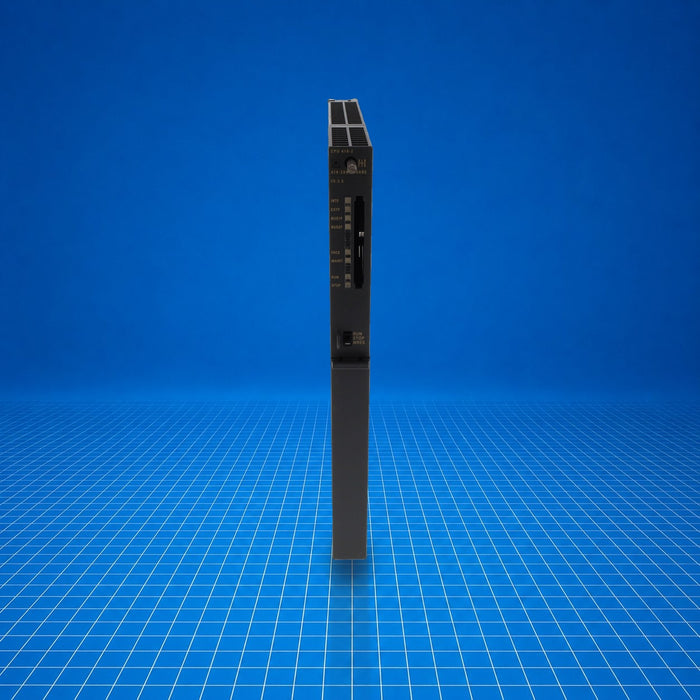

The Siemens 6ES7416-2XN05-0AB0 is a CPU 416-2 central processing unit module, part of the SIMATIC S7-400 automation platform. This unit serves as the system's main controller, executing control programs and managing communication over MPI/DP (12 Mbit/s) and PROFIBUS DP networks. It features integrated RAM (5.6 MB total: 2.8 MB code and 2.8 MB data) and supports isochronous (synchronous) operation for PROFIBUS. The module is typically deployed in mid- to large-scale industrial automation applications such as batch processing, material handling, or production line control systems. (Part number 6ES7416-2XN05-0AB0)

Best Suited For

  • SIMATIC S7-400 control systems requiring PROFIBUS DP interface
  • Replacement of older CPU 416-2 models without program changes
  • Systems needing isochronous PROFIBUS operation
  • Applications using STEP 7 V5.3 SP2 engineering environment
Work memory
5.6 Mbyte (2.8 Mbyte code + 2.8 Mbyte data)
Communication interfaces
MPI/DP 12 Mbit/s ; PROFIBUS DP
Power loss
4.5 W (typical)
Input current (backplane 5 V)
0.9 A (typ), 1.1 A (max)

Technical Specifications

I/O & Electrical

Power loss
4.5 W (typical)
Input current from backplane bus 5 V DC
0.9 A (typical), 1.1 A (max)
Input current from backplane bus 24 V DC
300 mA (max); 150 mA per DP interface
Input current from interface 5 V DC
90 mA (max) per DP interface

Communication & Power

MPI/DP interface
12 Mbit/s
PROFIBUS DP interface
Yes; isochronous mode supported

Physical & Environmental

Dimensions (W × H × D)
25 mm × 290 mm × 219 mm
Weight
≈ 720 g
Ambient operating temperature
0 °C to 60 °C

Certifications

ULKCRCMATEXIECExEU Declaration of ConformityUK Declaration of ConformityChina RoHS

Approvals include UL, KC, RCM; ATEX and IECEx for hazardous areas; EU and UK Declarations of Conformity; China RoHS compliant.
