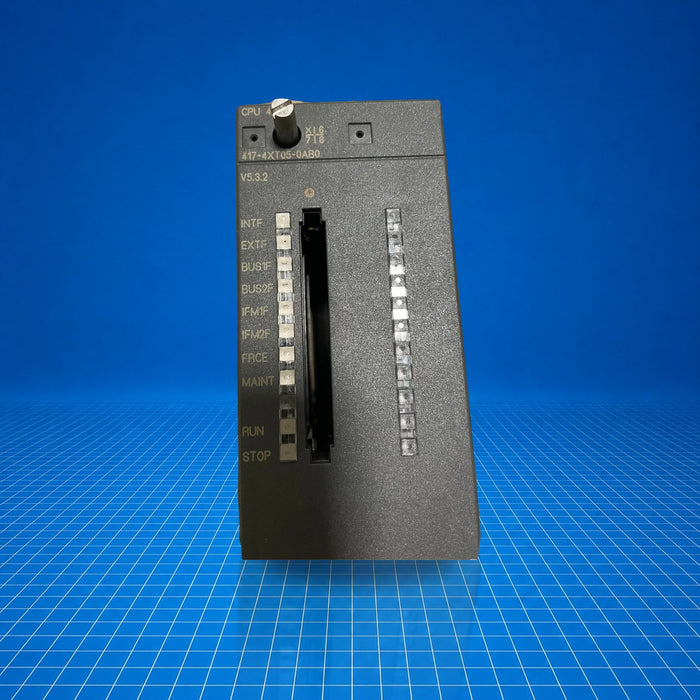

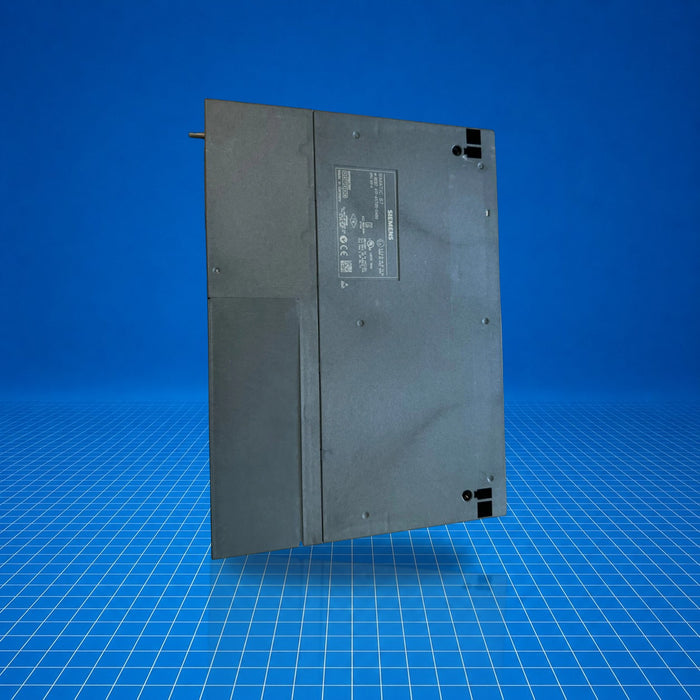

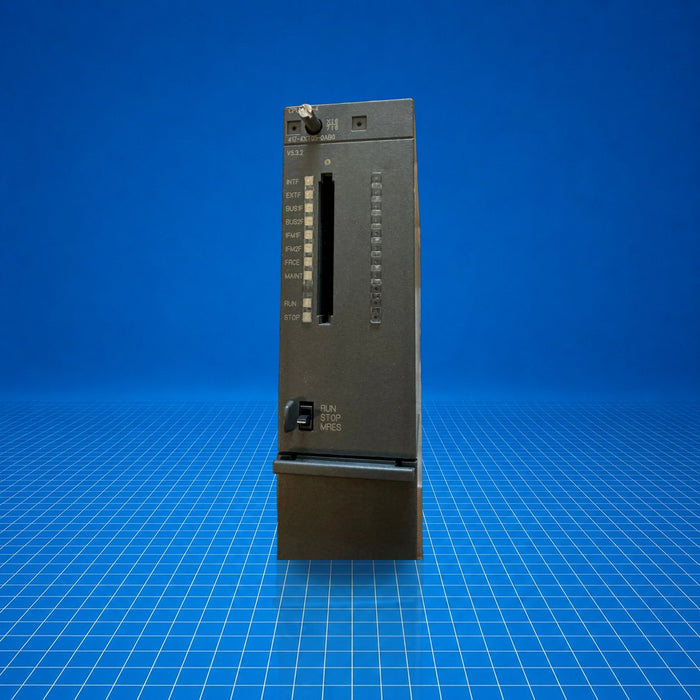

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7417-4XT05-0AB0 Siemens

Name: 6ES7417-4XT05-0AB0 Siemens
Brand: Siemens
SKU: 6ES7417-4XT05-0AB0
Price: 6847.5 USD
Availability: InStock

$5,022.41 - $6,847.50

$6,847.50

$5,022.41 - $6,847.50

$6,847.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7417-4XT05-0AB0 is a SIMATIC S7-400 CPU 417-4 central processing unit, designed for use within the S7-400 automation platform. It provides 30 Mbyte of work memory (15 Mbyte for program and 15 Mbyte for data), interfaces for MPI (12 Mbit/s), PROFIBUS DP, and two plug-in IFM modules. It supports isochronous mode on PROFIBUS, battery-backup, and integration via STEP 7 engineering software. It is suitable for mid-to-large industrial control applications requiring deterministic communication, high memory capacity, and modular interface expansion.

Best Suited For

Complex process control systems on the S7-400 rack
Applications requiring PROFIBUS DP master/slave communication
Environments needing battery-backed memory retention during power loss
Use cases where isochronous PROFIBUS synchronization is required

Work memory (program/data)

15 Mbyte / 15 Mbyte

Interfaces

MPI + PROFIBUS DP + 2 IFM slots

Power loss (typ.)

7.5 W

Dimensions (W×H×D)

50 mm × 290 mm × 219 mm

Weight (approx.)

0.9 kg

Technical Specifications

I/O & Electrical

Input current from 5 V DC (typ.)

1.5 A

Input current from 5 V DC (max.)

1.8 A

Input current from 24 V DC (max.)

600 mA

Input current per DP interface 24 V DC

150 mA

Power loss (typ.)

7.5 W

Communication & Power

Work memory

30 Mbyte (15 Mbyte program, 15 Mbyte data)

Expandable FEPROM (max.)

64 Mbyte

Expandable RAM (max.)

64 Mbyte

MPI interface speed

12 Mbit/s

PROFIBUS DP

master/device, 12 Mbit/s, isochronous mode supported

Physical & Environmental

Dimensions (W×H×D)

50 mm × 290 mm × 219 mm

Weight (approx.)

0.9 kg

Backup current (typ., up to 40 °C)

225 µA

Backup current (max.)

750 µA

Certifications

CEUKCAChina RoHSUL ListedKCRCMATEXIECExFMBVDNV

Approvals include EU Declaration of Conformity, UK Declaration of Conformity, China RoHS, UL, KC, RCM, ATEX, IECEx, FM, BV and DNV (maritime).
