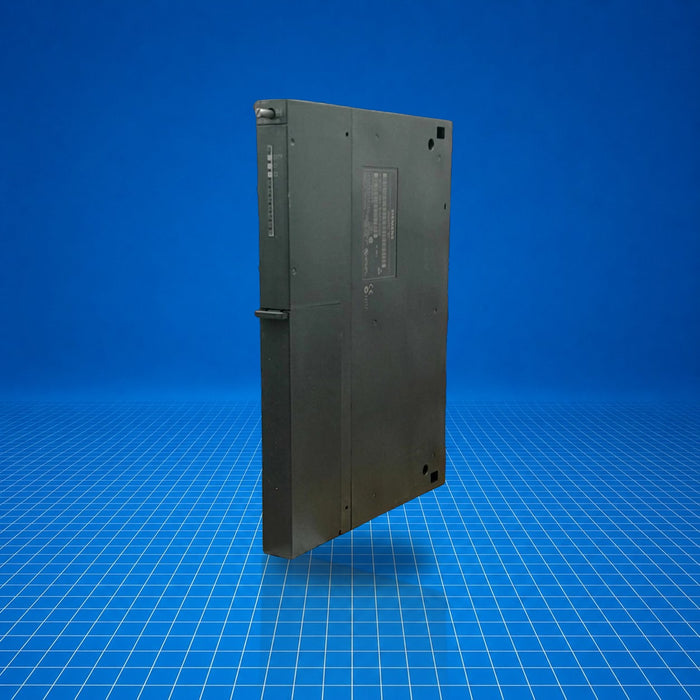

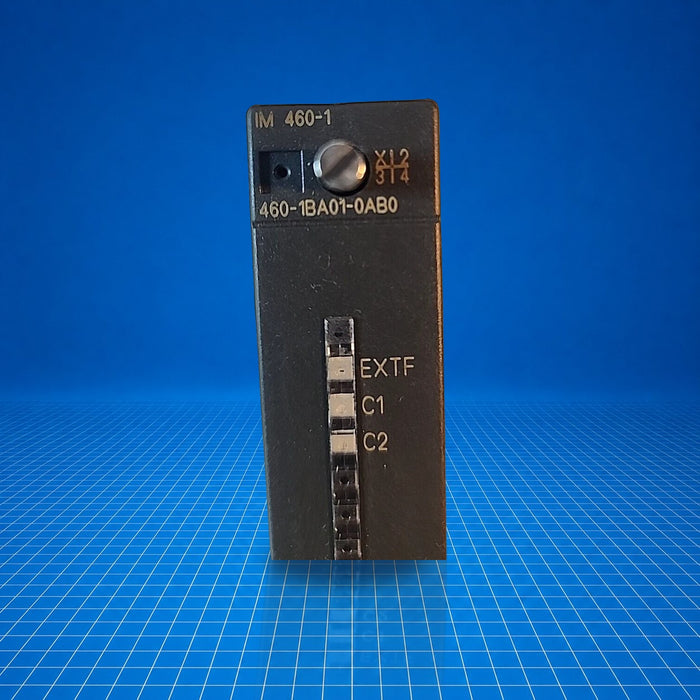

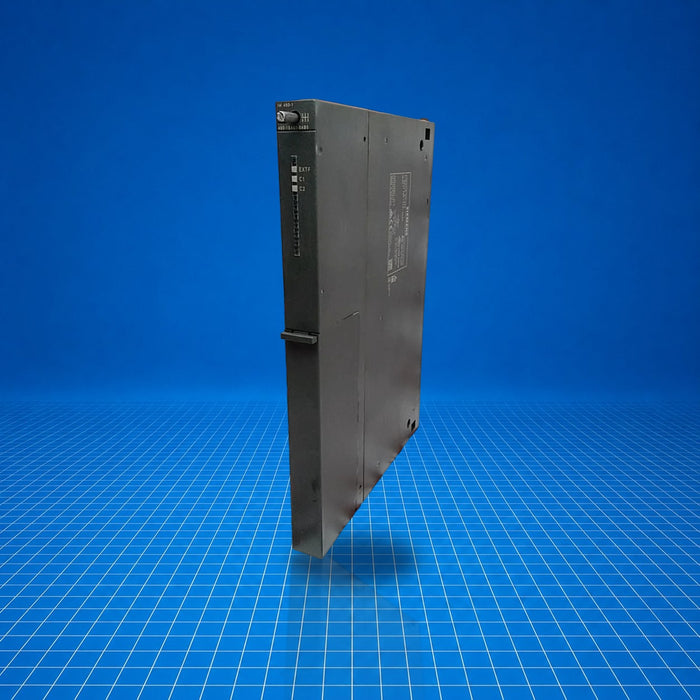

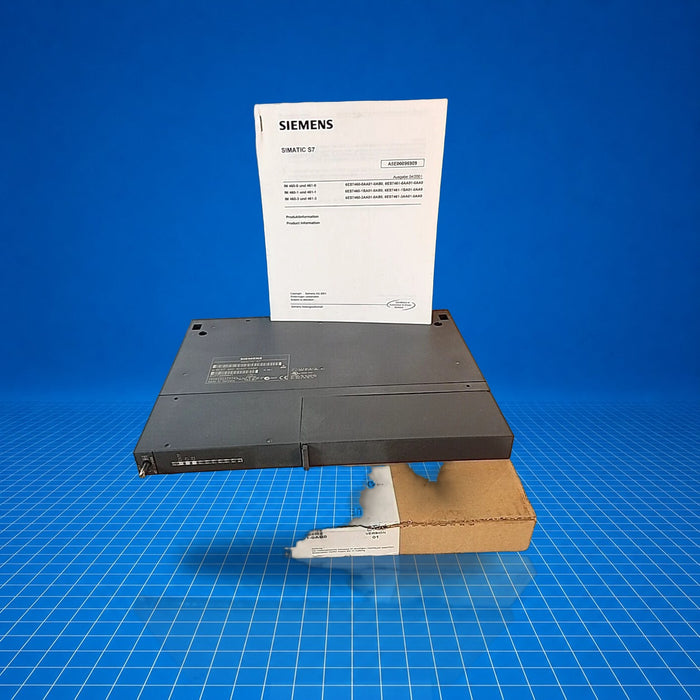

6ES7460-1BA01-0AB0 Siemens
Original price
$527.52
-
Original price
$559.95
Original price
$559.95
$527.52
-
$559.95
Current price
$559.95
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-400 IM 460-1 (Siemens part number 6ES7460-1BA01-0AB0) is a centrally-mounted interface module within the S7-400 automation platform. It functions as a 'Send' interface for P-bus expansion, providing a 5 V DC power supply downstream and enabling connection of up to two expansion racks at maximum cable lengths of 1.5 m. Widely used in distributed control architectures, it plugs into the central controller and pairs with IM 461-1 expansion modules for extended I/O deployment.
Best Suited For
- P-bus expansion of SIMATIC S7-400 systems
- Distributed I/O rack configuration with IM 461-1
- Central controller to expansion rack coupling
- Systems requiring 5 V power from backplane
Input current
85 mA (from 5 V DC backplane)
Power loss, max.
425 mW
Max cable length (first-last module)
1.5 m
Dimensions (W×H×D)
25 mm × 290 mm × 217 mm
Weight, approx.
600 g
Technical Specifications
I/O & Electrical
Input voltage
5 V DC (backplane)
Input current (max)
85 mA
Communication & Power
Power loss (max)
425 mW
Cable span limit
1.5 m between interface modules
Physical & Environmental
Width
25 mm
Height
290 mm
Depth
217 mm
Weight
600 g
Certifications
China RoHSKCEMVHazardous-location approval
General Product Approval; China RoHS; KC; EMV; suitable for use in hazardous locations
