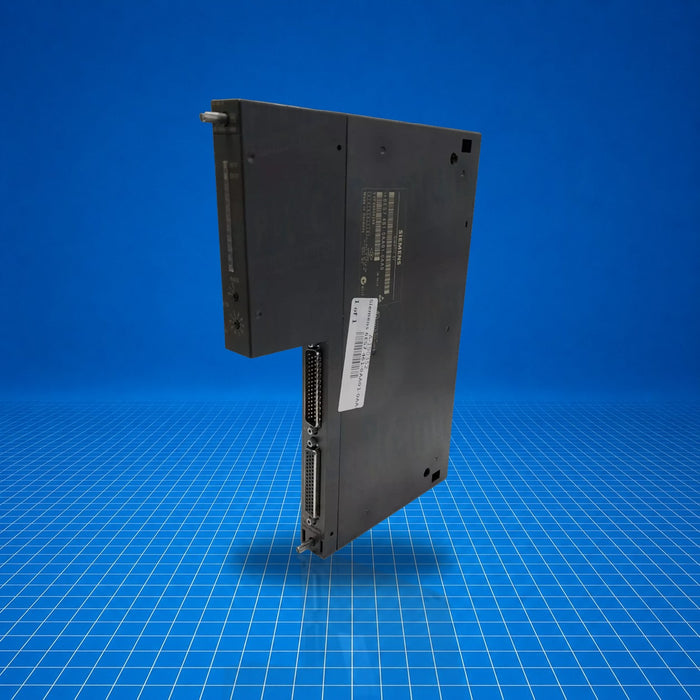

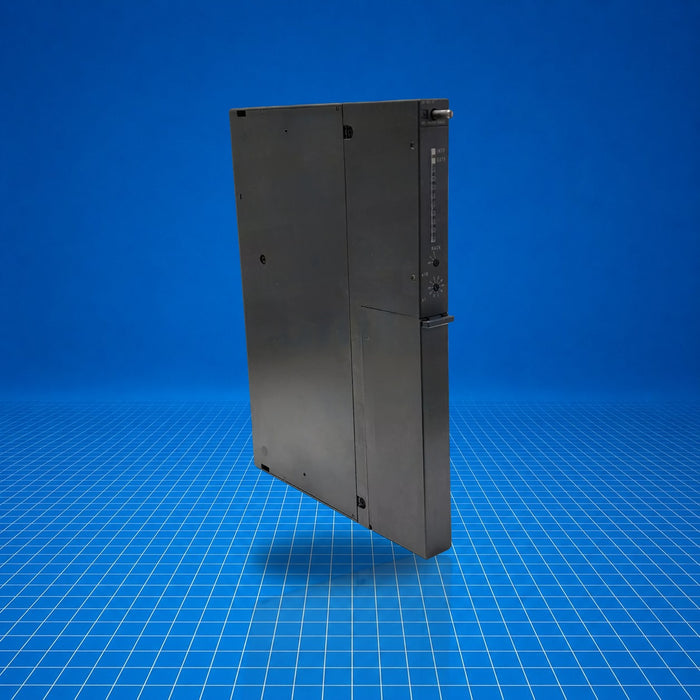

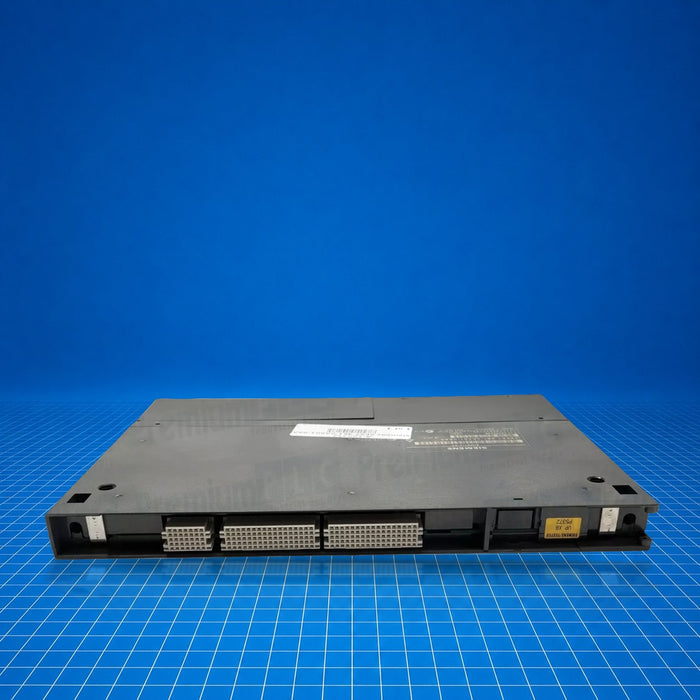

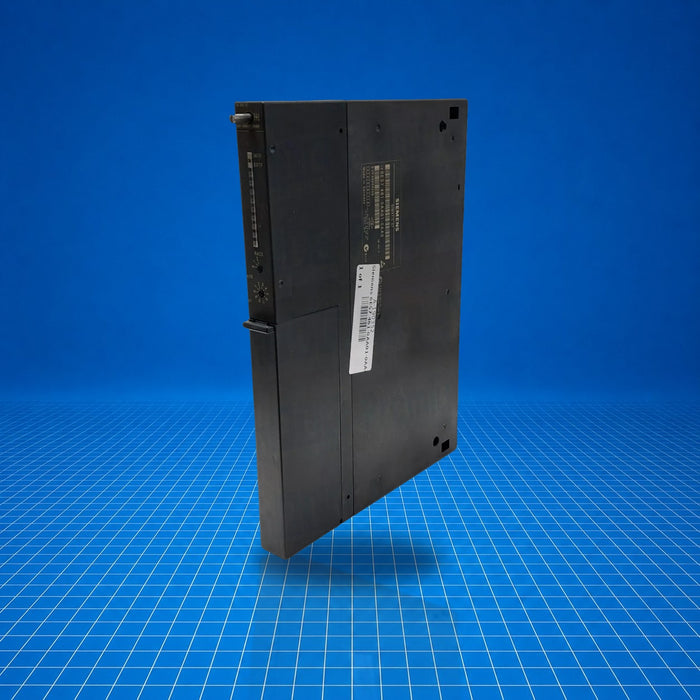

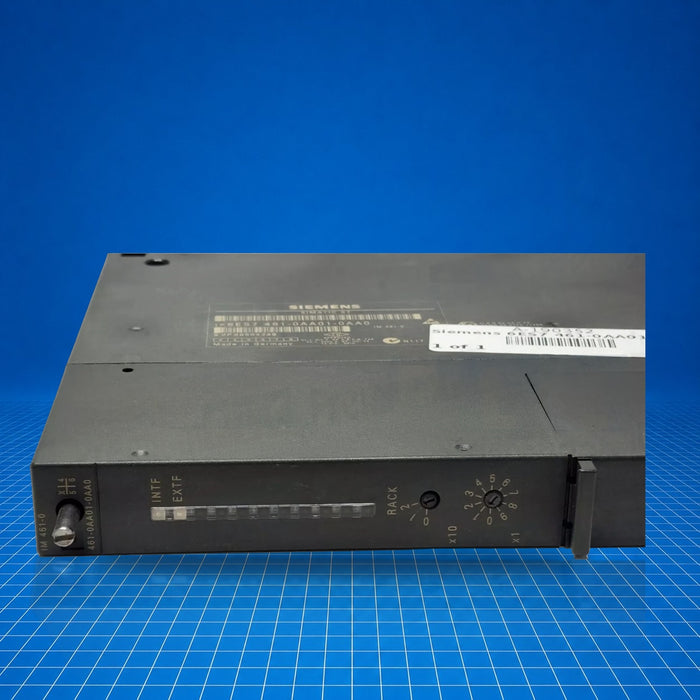

6ES7461-0AA01-0AA0 Siemens
Original price
$684.75
-
Original price
$987.25
Original price
$987.25
$684.75
-
$987.25
Current price
$987.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7461-0AA01-0AA0 is an IM 461-0 interface module (receiver) designed for the SIMATIC S7-400 advanced controller series. It provides coupling for centralized expansion of P- and K-bus segments without requiring power supply transfer. Installed in the expansion rack, it supports cable runs up to 5 m between modules. It is typically used in distributed automation systems where modular expansion and signal integrity between racks are required.
Best Suited For
- Centralized expansion of S7-400 racks
- P- and K-bus segment coupling
- Applications requiring up to 5 m bus extension
- Use exclusively with IM 460-0 transmitting module
Backplane bus input current
max. 290 mA
Max power loss
1 450 mW
Max cable length between interface modules
5 m
Weight, approx.
610 g
Technical Specifications
I/O & Electrical
Input current (from backplane bus 5 V DC)
max. 290 mA
Power loss
max. 1 450 mW
Communication & Power
Cable length between modules
max. 5 m
Physical & Environmental
Width
25 mm
Height
290 mm
Depth
217 mm
Weight
610 g
Certifications
China RoHSKC
