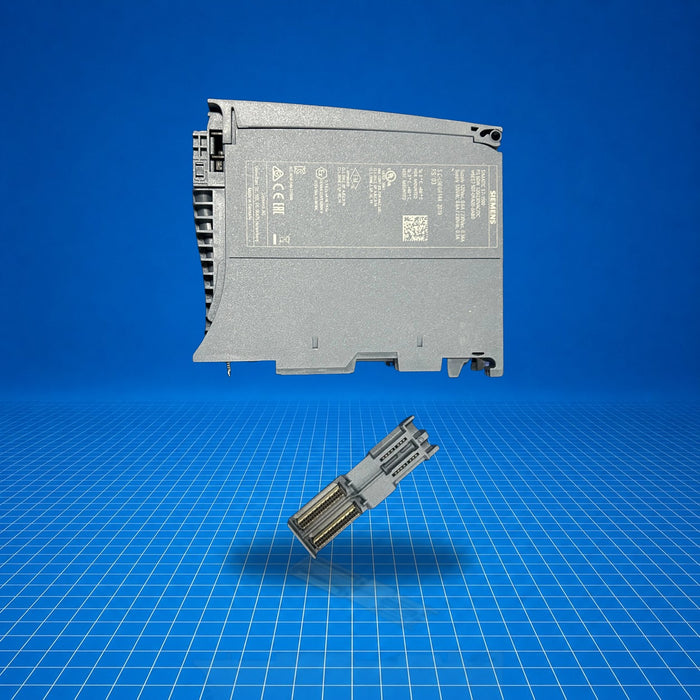

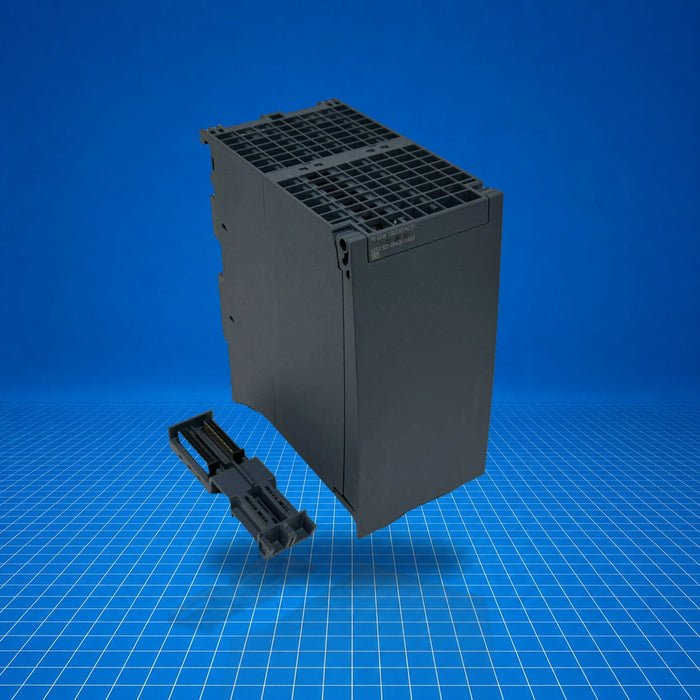

6ES7507-0RA00-0AB0 Siemens
Original price
$1,152.25
-
Original price
$1,298.00
Original price
$1,152.25
$1,152.25
-
$1,298.00
Current price
$1,152.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7507-0RA00-0AB0 is a SIMATIC S7-1500 system power supply module (PS 60 W 120/230 V AC/DC). It delivers backplane bus operating voltage and offers short-circuit protection, mains buffering and diagnostics. It is configurable in RUN via TIA Portal (V12 or higher) and supplies up to 60 W to the system bus. Typically used in industrial control systems to power S7-1500 racks in manufacturing, process control, or discrete automation environments (Siemens part number 6ES7507-0RA00-0AB0).
Best Suited For
- Powering SIMATIC S7-1500 backplane bus
- Applications requiring 120 V or 230 V AC/DC supply
- Systems needing short-circuit protection
- Configurations via TIA Portal during operation
Output power
60 W
Input voltage range (AC)
85-264 V AC
Input voltage range (DC)
88-300 V DC
Power loss
12 W
Technical Specifications
I/O & Electrical
Rated input voltage (AC/DC)
120 V / 230 V
Permissible input voltage range (AC)
85 V - 264 V AC
Permissible input voltage range (DC)
88 V - 300 V DC
Input current at 120 V AC
0.6 A
Input current at 230 V AC
0.34 A
Input current at 120 V DC
0.6 A
Input current at 230 V DC
0.3 A
Output (feed to backplane bus)
60 W
Power loss at rated conditions
12 W
Short-circuit protection
Yes
Mains buffering (hold-up time)
20 ms
Communication & Power
Electrical isolation
Yes, to EN 61131-2
Physical & Environmental
Hardware version
FS02
Firmware version
V1.0.1
Configuration via TIA Portal
V12 or higher
