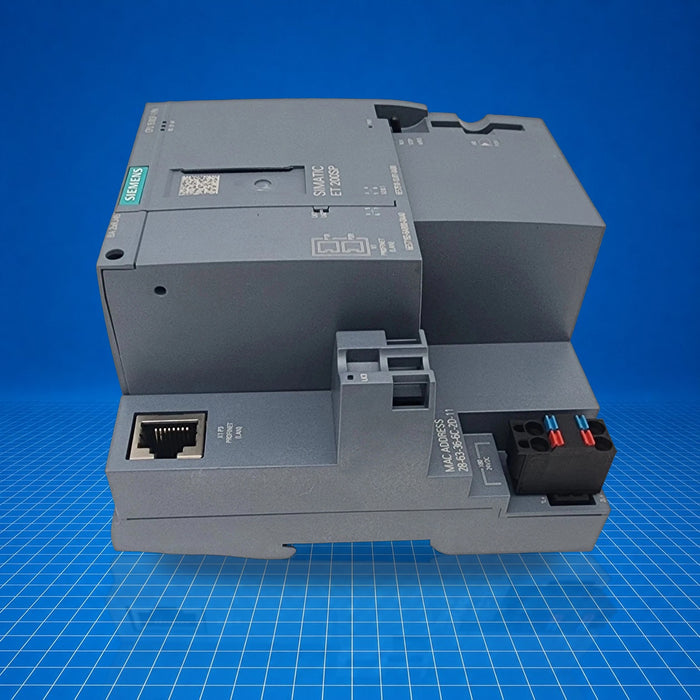

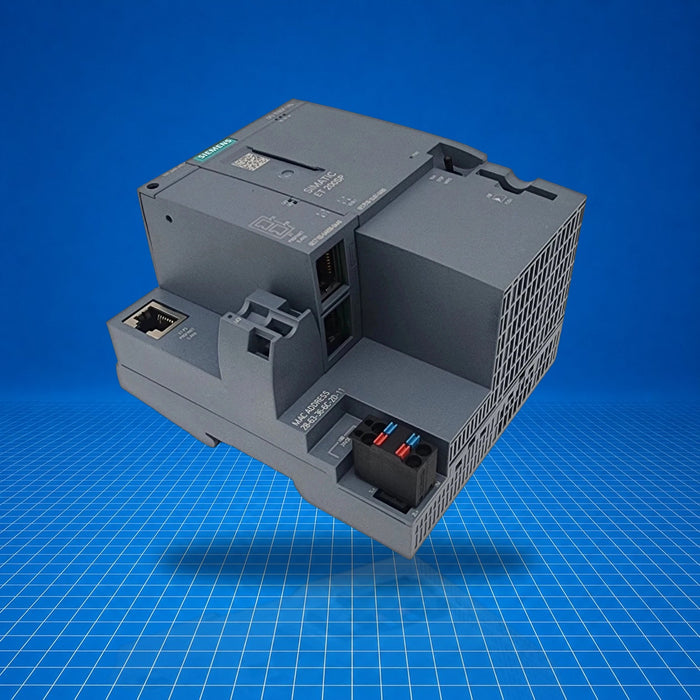

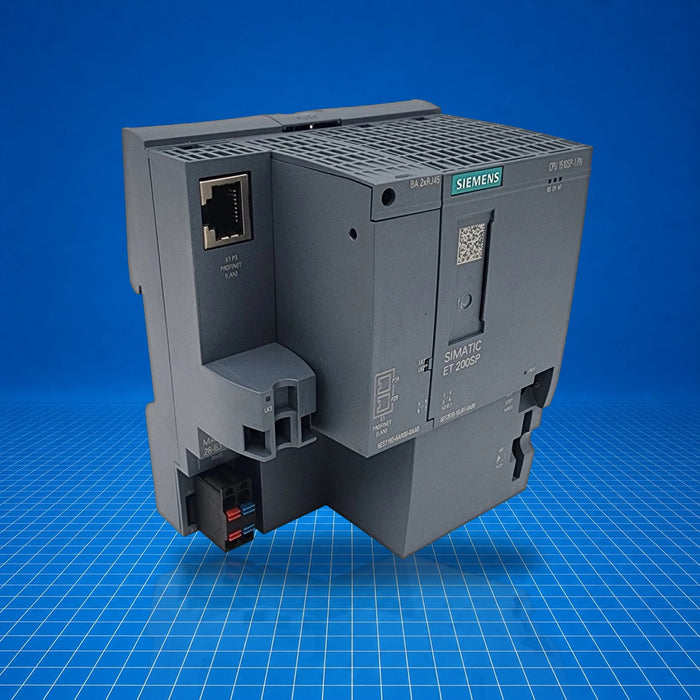

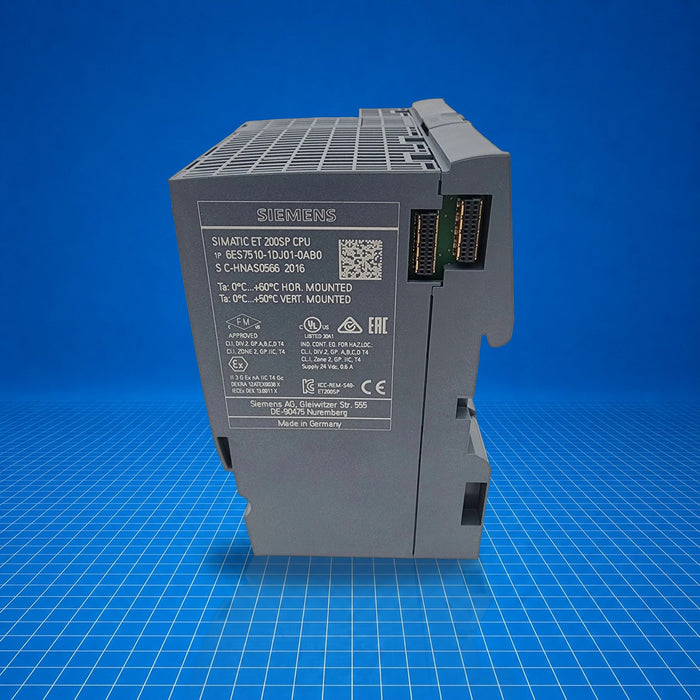

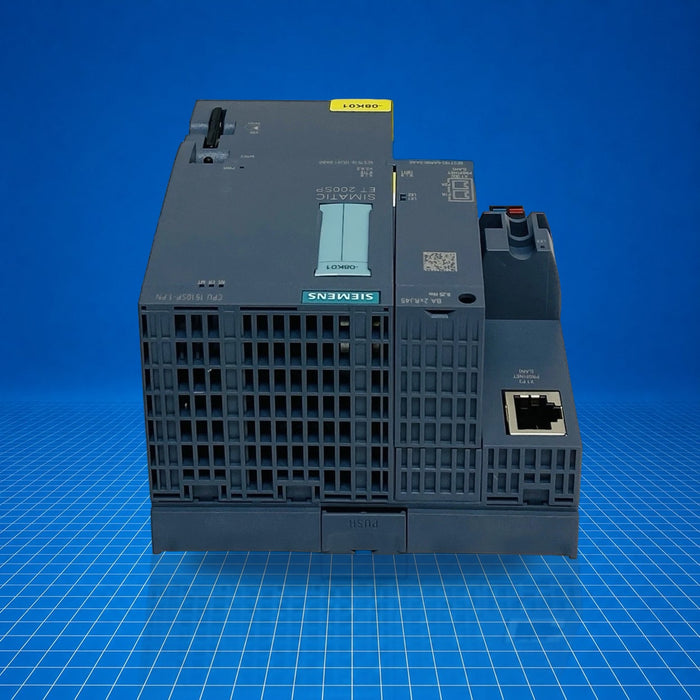

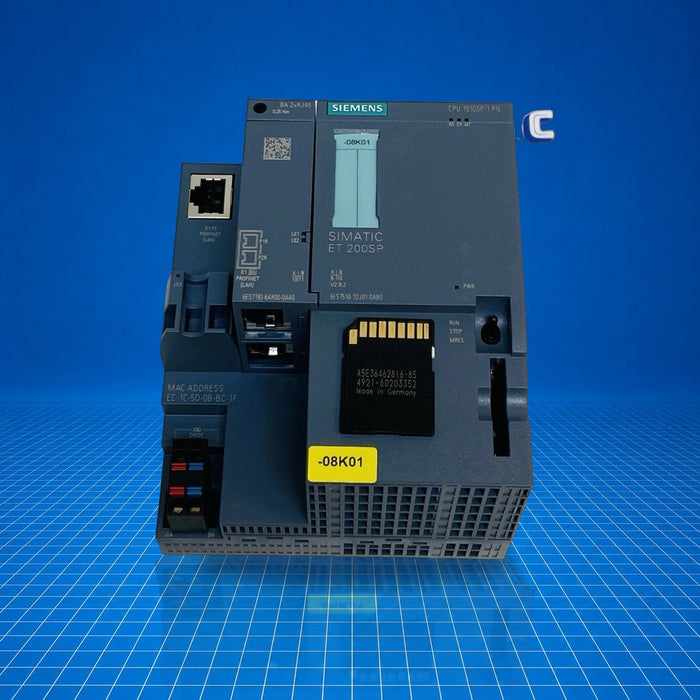

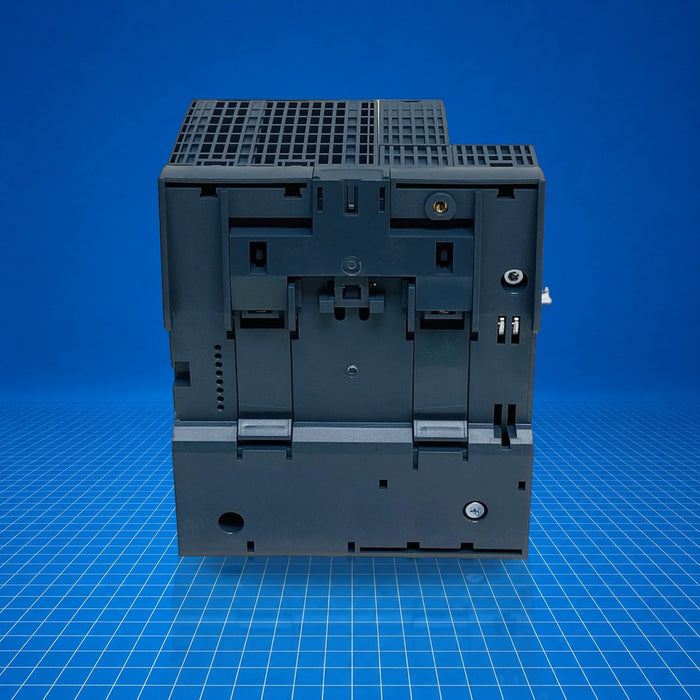

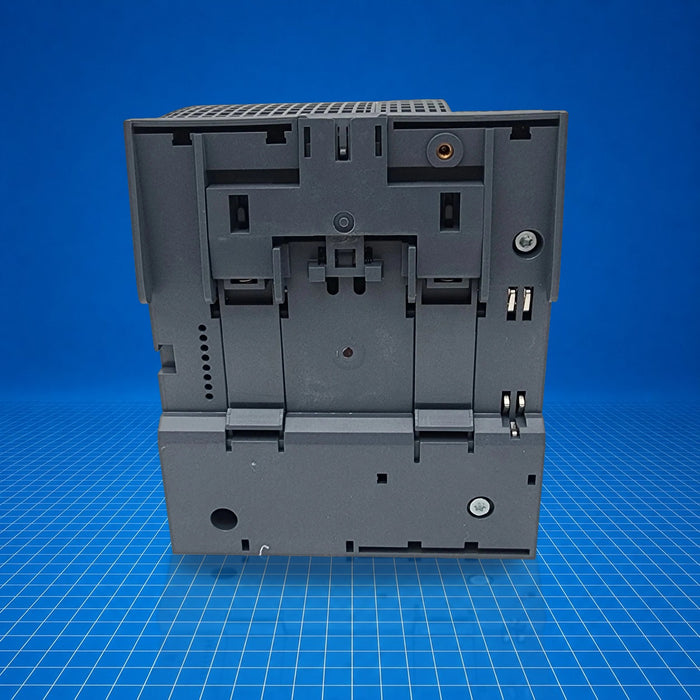

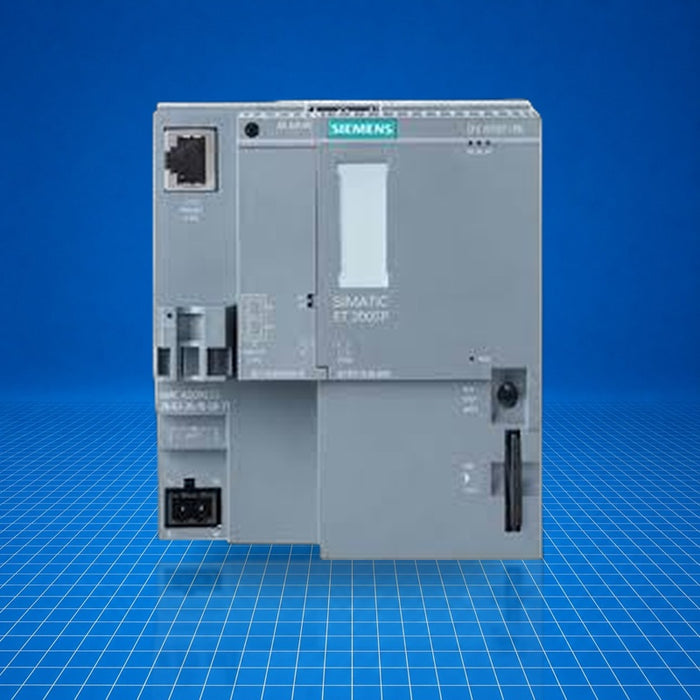

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

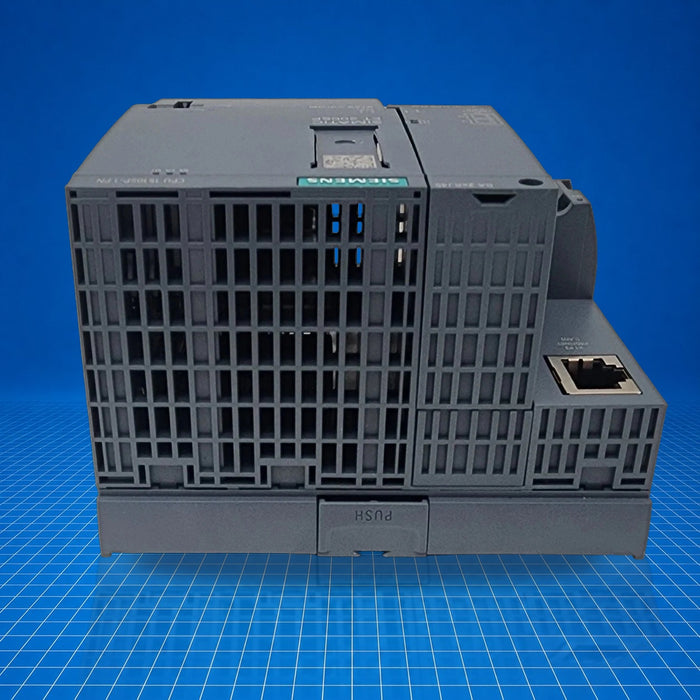

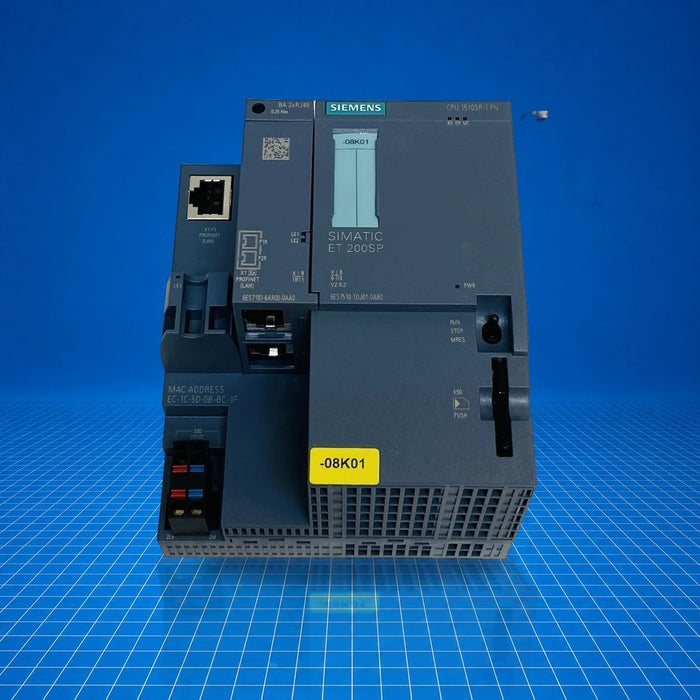

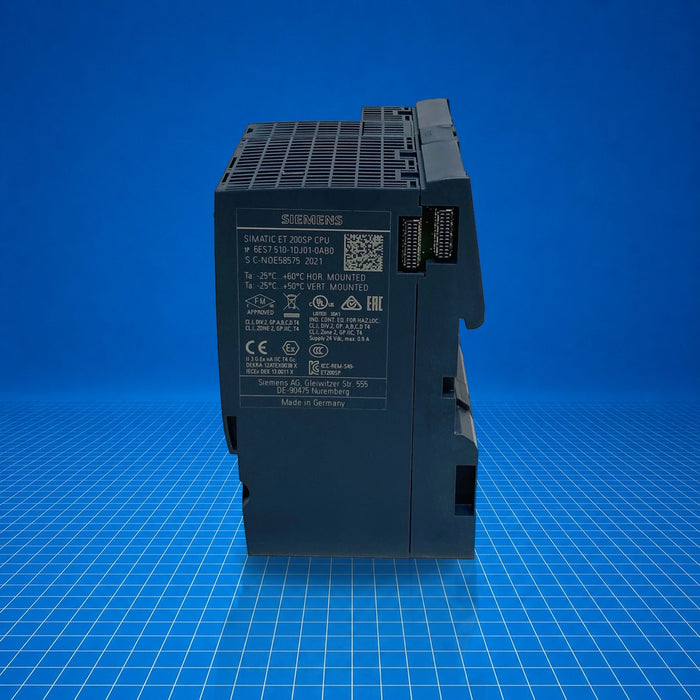

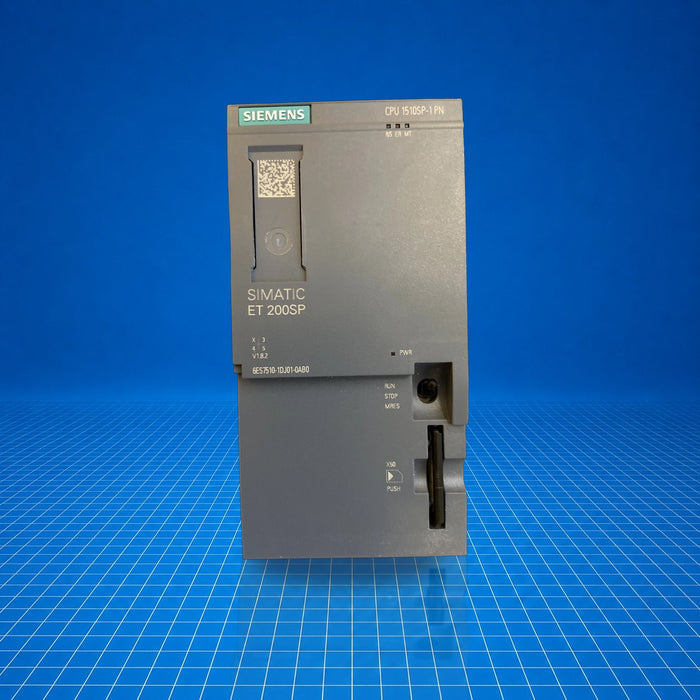

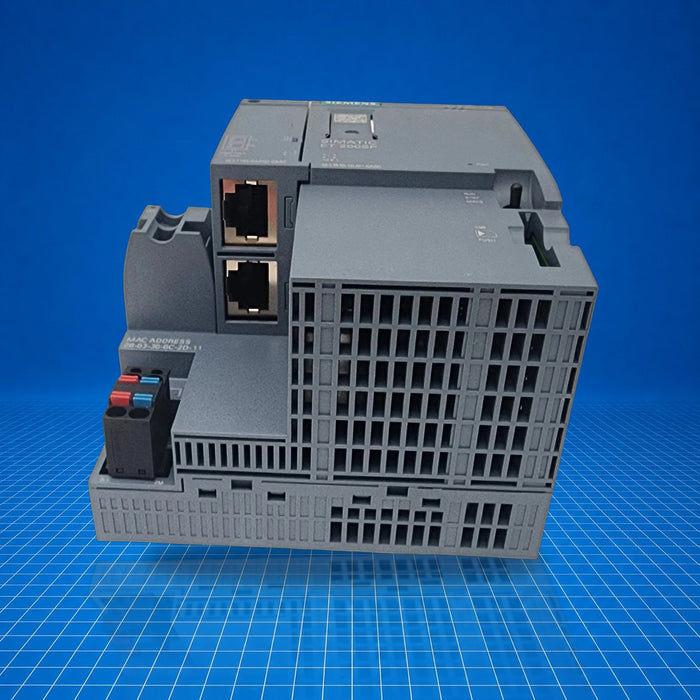

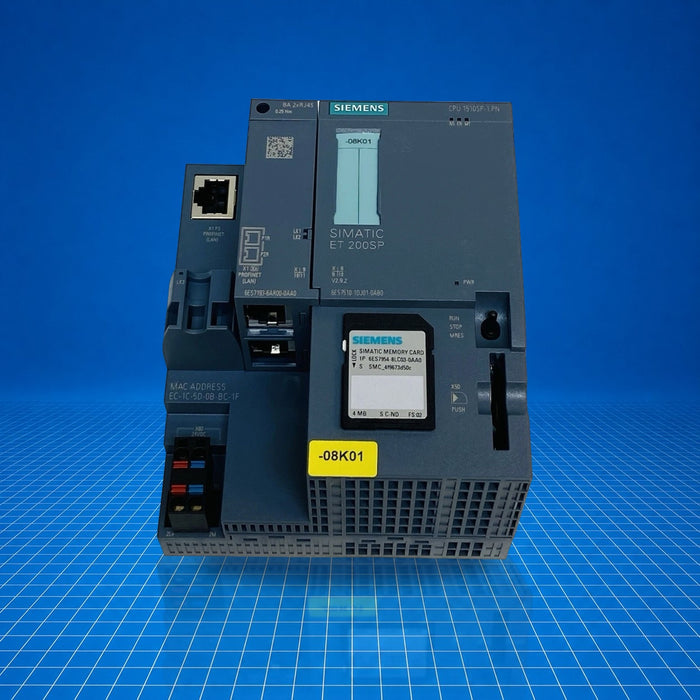

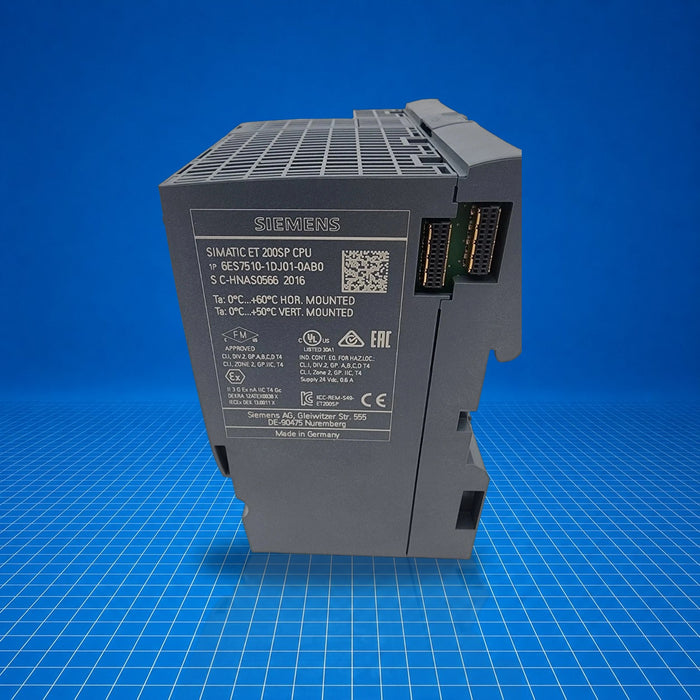

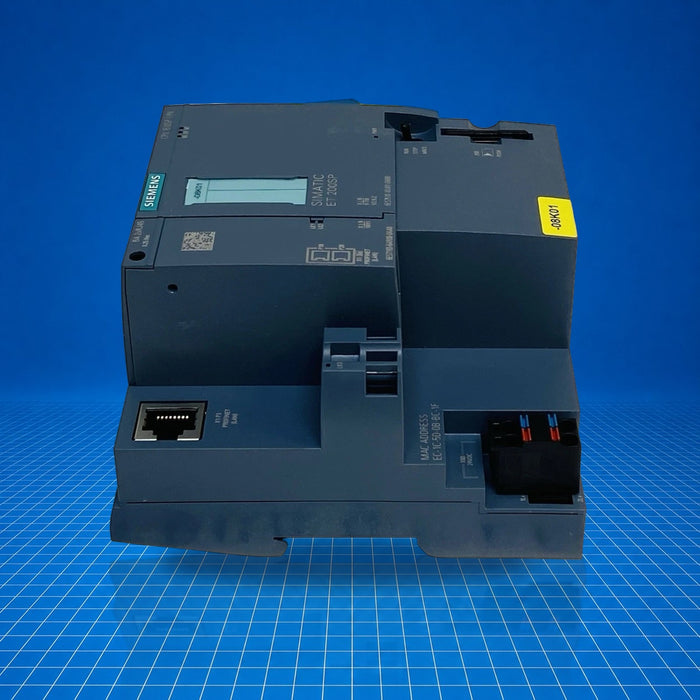

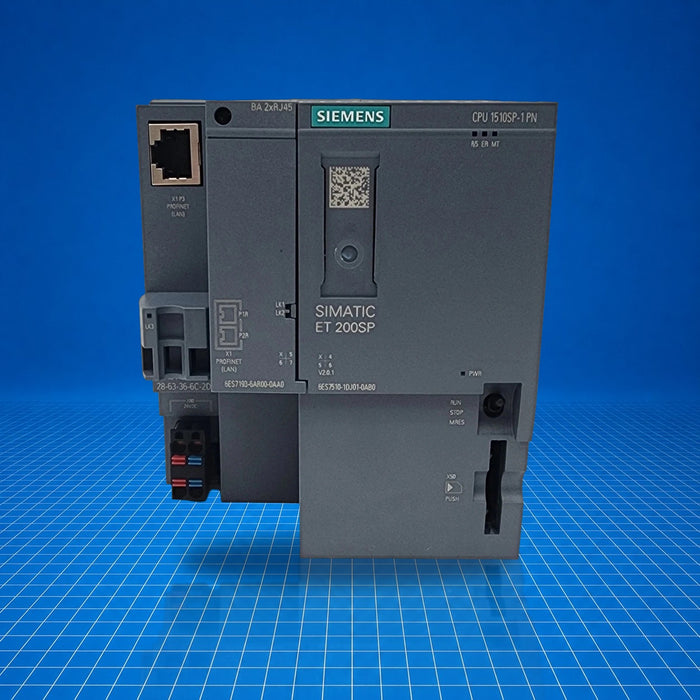

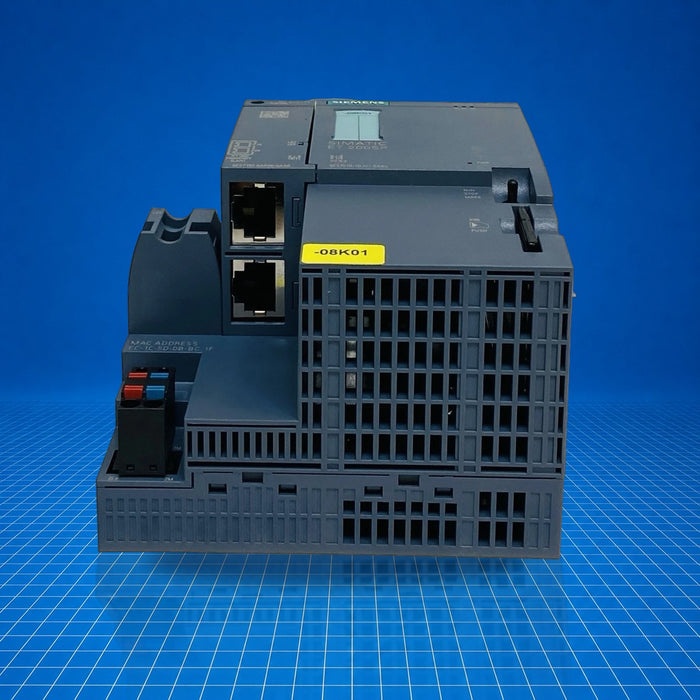

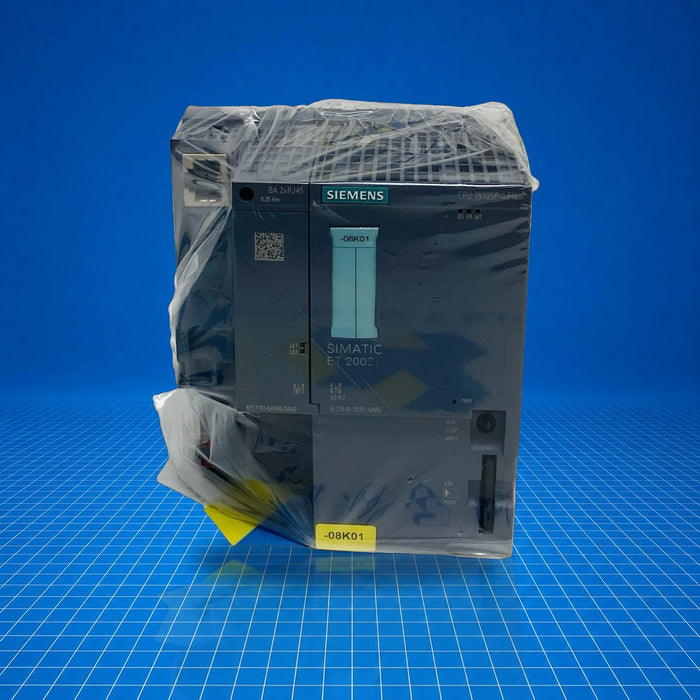

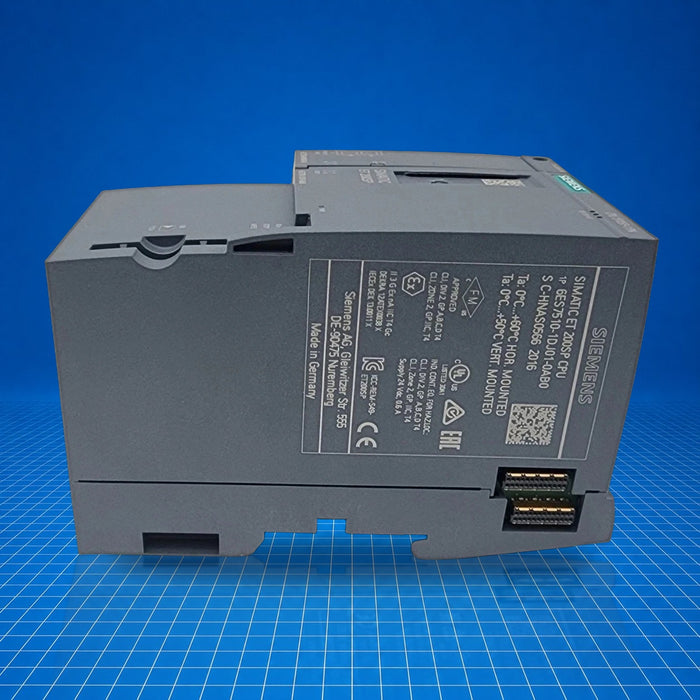

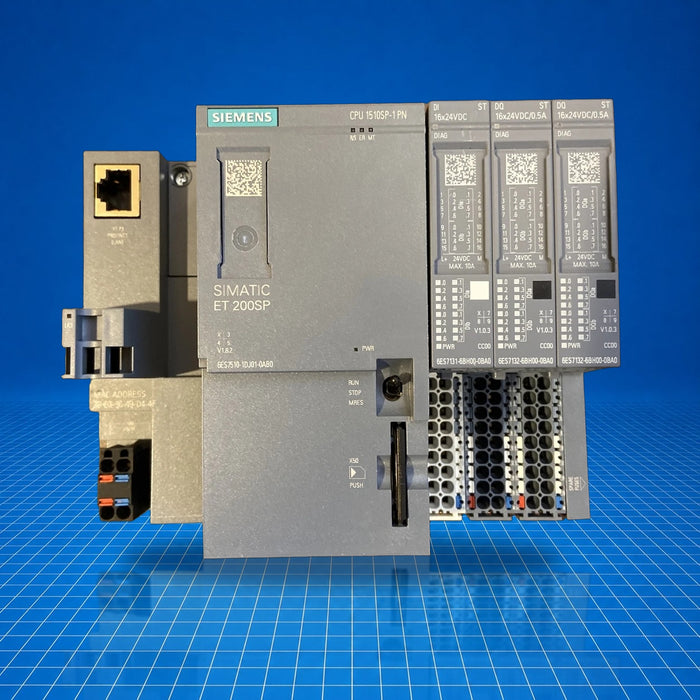

6ES7510-1DJ01-0AB0 Siemens
Original price
$866.25
-
Original price
$1,281.94
Original price
$866.25
$866.25
-
$1,281.94
Current price
$866.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC DP CPU 1510SP-1 PN (6ES7510-1DJ01-0AB0) is a spare-part central processing unit from the S7-1500 family intended for the ET 200SP distributed I/O system. It provides program memory of 100 kbyte and data memory of 750 kbyte, and includes a PROFINET IRT interface with a 3-port switch. It supports hot-swapping and I&M data (I&M0 to I&M3), and is used in automation tasks that require centralized control of distributed I/O, modular expansion, and replacement within S7-1500 infrastructure.
Best Suited For
- Distributed I/O control with ET 200SP modules
- Spare replacement in existing S7-1500 / ET 200SP installations
- PROFINET-based modular machine architectures
- Scenarios requiring hot-swappable CPU modules
Program memory
100 kbyte
Data memory
750 kbyte
Interface
PROFINET IRT, 3-port switch
Hot-swap support
Yes
Supply voltage
24 V DC
Technical Specifications
I/O & Electrical
Supply voltage (nominal)
24 V DC
Supply voltage permissible range
19.2 V to 28.8 V DC
Reverse-polarity protection
Yes
Input current (rated)
0.6 A
Input current (max)
0.9 A
Inrush current (max)
4.7 A (rated value)
I²t
0.14 A²·s
Power to backplane bus
8.75 W
Typical power loss
5.6 W
Communication & Power
Hot-swapping
Yes; multi-hot swapping
I&M data
Yes; I&M0 to I&M3
Isochronous mode
Yes; only with PROFINET, minimum OB cycle 6 × 625 µs
Processing time, bit operations (typ)
72 ns
Processing time, word operations (typ)
86 ns
Processing time, fixed-point (typ)
115 ns
Processing time, floating-point (typ)
461 ns
Physical & Environmental
Width
100 mm
Height
117 mm
Depth
75 mm
Weight
310 g
Ambient temperature (horizontal, operation)
-25 °C to 60 °C; No condensation
Ambient temperature (vertical, operation)
-25 °C to 50 °C; No condensation
Altitude (operation)
Up to 5 000 m (restrictions above 2 000 m)
Certifications
EU ConformityUK Conformity
EU Declaration of Conformity and UK Declaration of Conformity are available.
