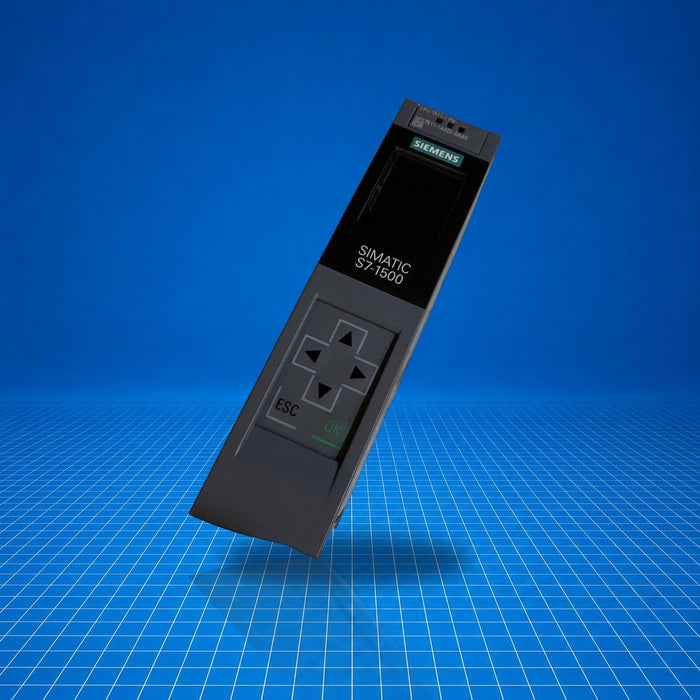

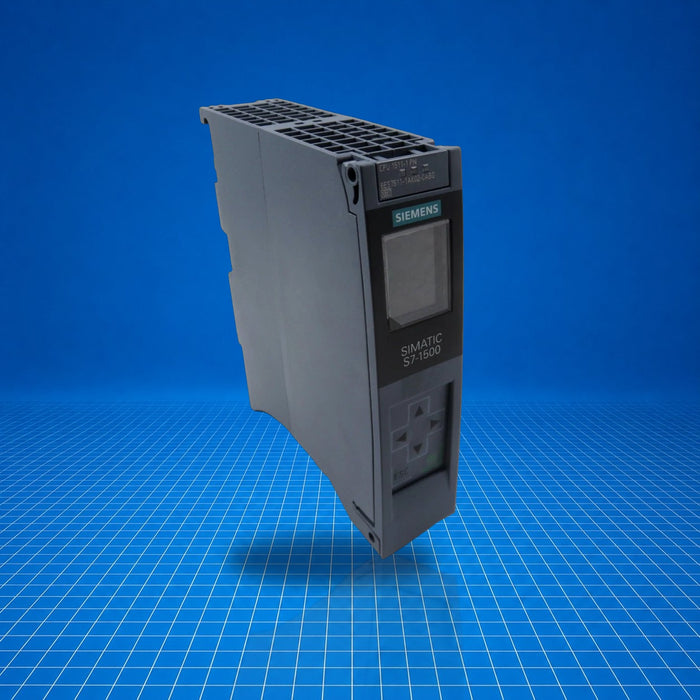

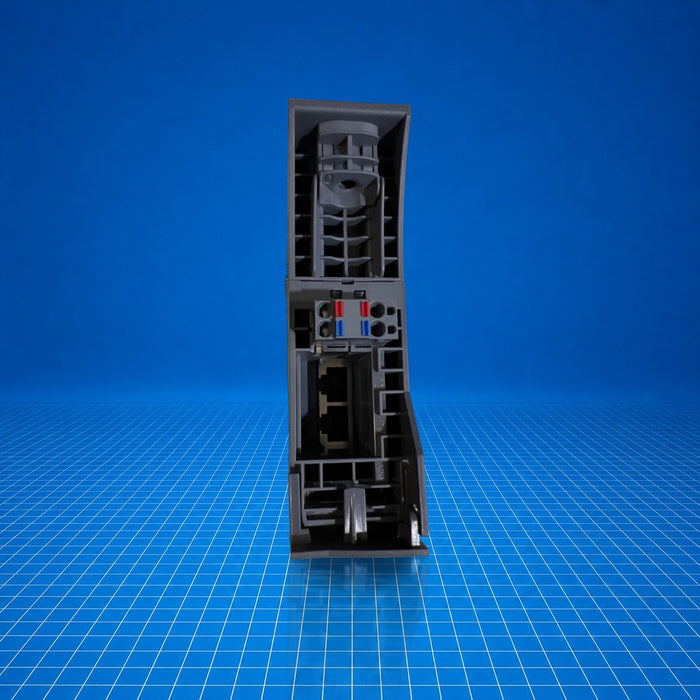

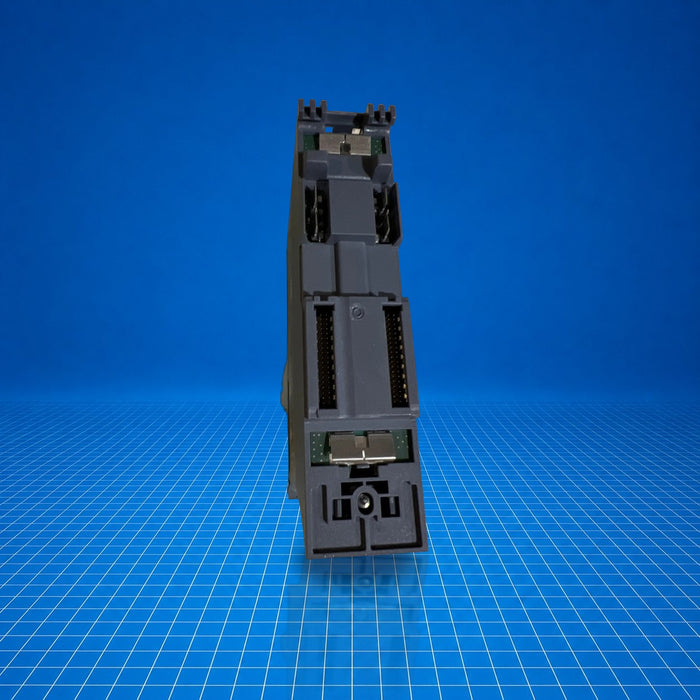

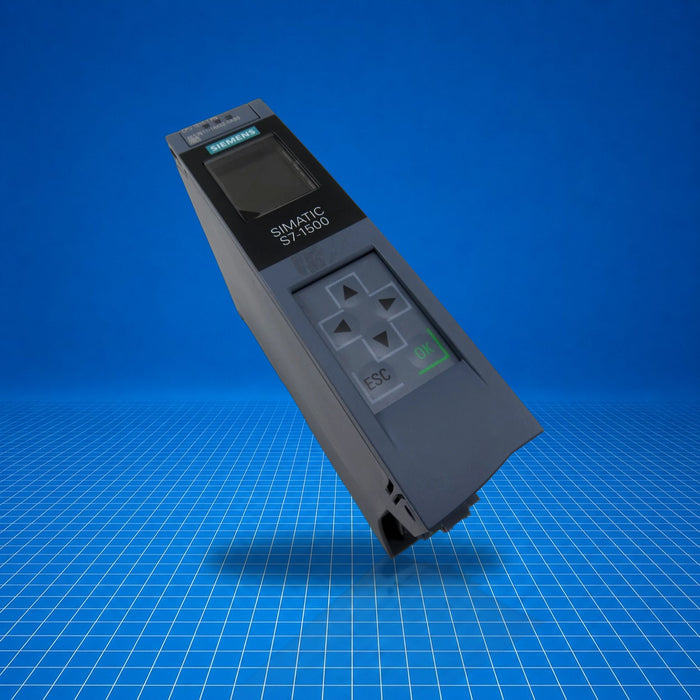

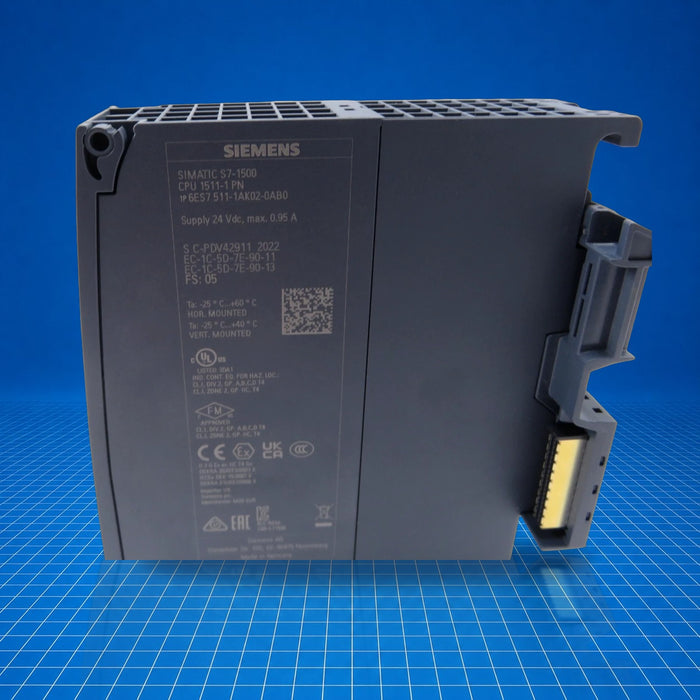

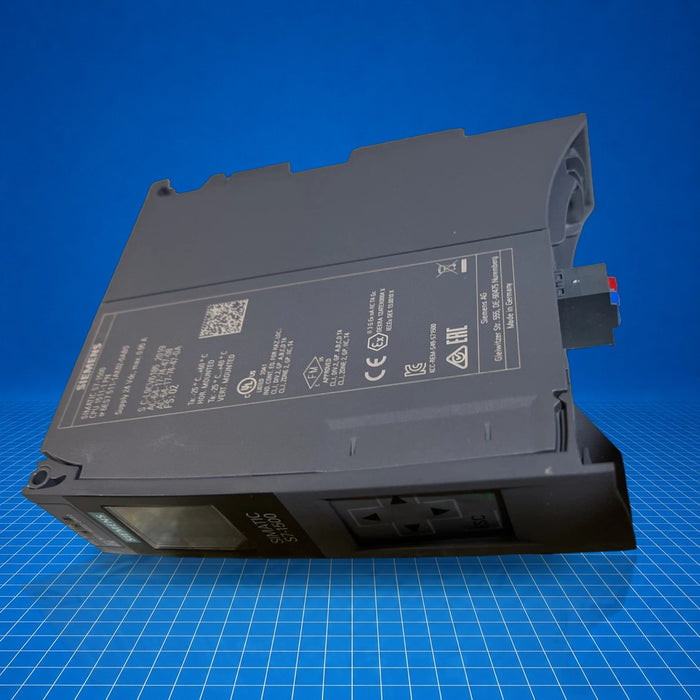

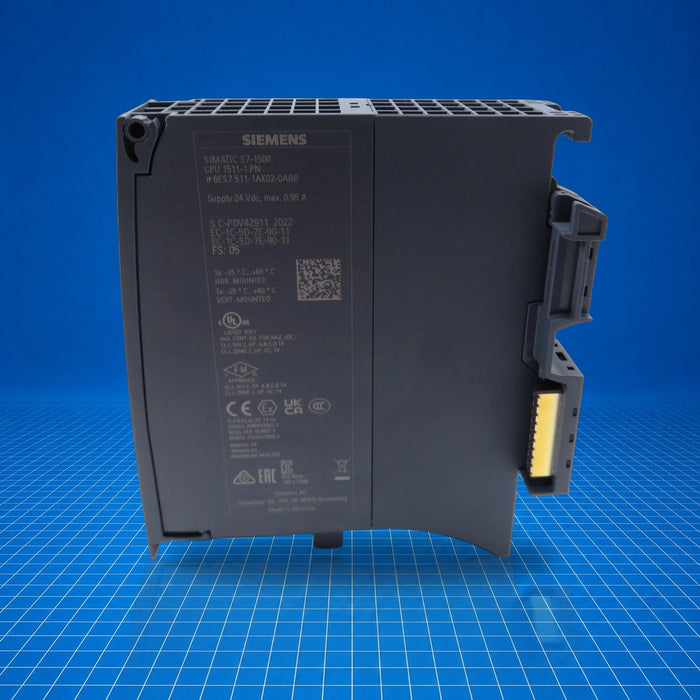

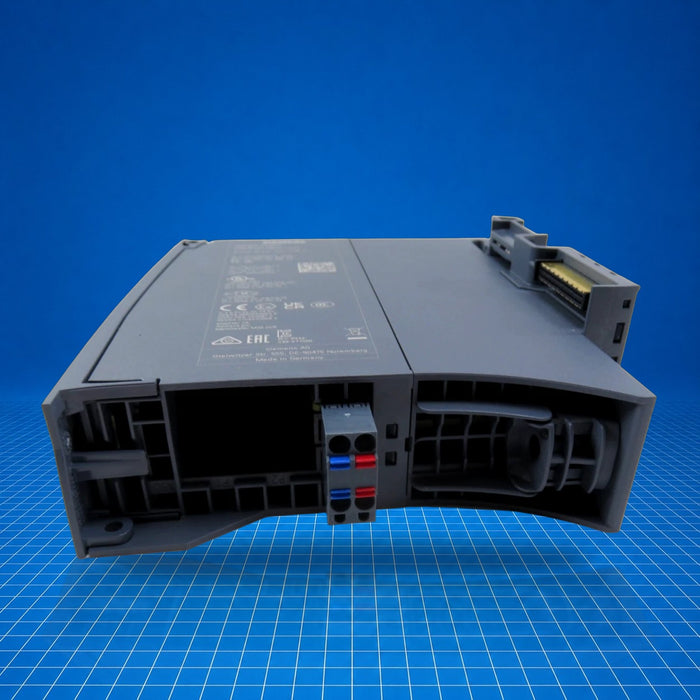

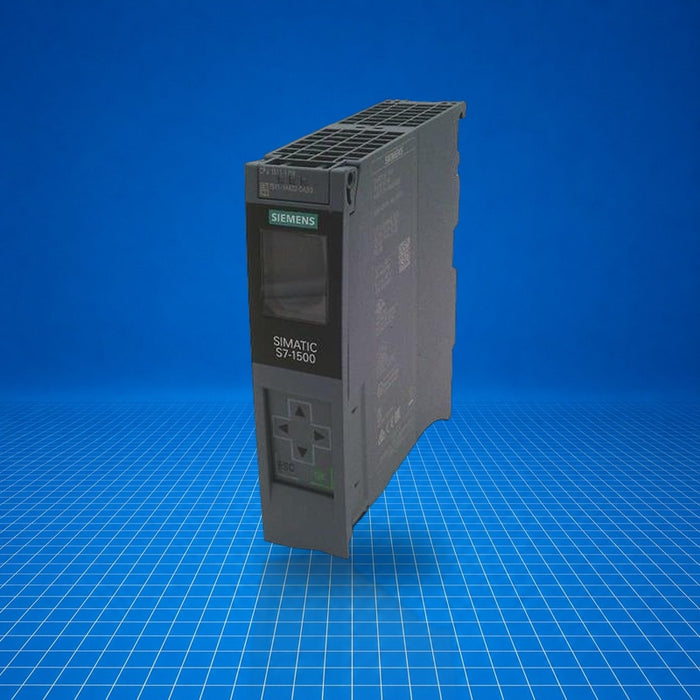

6ES7511-1AK02-0AB0 Siemens

Name: 6ES7511-1AK02-0AB0 Siemens
Brand: Siemens
SKU: 6ES7511-1AK02-0AB0
Price: 1511.73 USD
Availability: InStock

$1,376.71 - $1,511.73

$1,511.73

$1,376.71 - $1,511.73

$1,511.73

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

6ES7511-1AK02-0AB0 is a Siemens SIMATIC S7-1500 CPU 1511-1 PN spare central processing unit module. It provides 150 kB of integrated program memory and 1 MB of data memory. It includes an integrated PROFINET IRT interface with a two-port switch and typical instruction bit cycle time of 60 ns. Firmware version is V2.9 (HW-functional status FS03). It requires a SIMATIC Memory Card and is configurable via TIA Portal V17 (FW V2.9) or V15 (FW V2.5) and above. 6ES7511-1AK02-0AB0 supports I&M data (I&M0-I&M3) and isochronous mode for distributed and central systems, with minimum OB cycles of 625 µs (distributed) and 1 ms (central).

Best Suited For

Replacement or spare CPU unit in S7-1500 systems
Applications requiring PROFINET IRT communications
Maintaining existing configurations using TIA Portal V17 or V15
Systems using isochronous operation or I&M data features

Program memory

150 kB

Data memory

1 MB

PROFINET IRT interface

2-port switch

Instruction bit time

60 ns

Firmware / HW status

V2.9 / FS03

Technical Specifications

I/O & Electrical

Supply voltage

24 V DC

Permissible voltage range

19.2 V - 28.8 V DC

Reverse-polarity protection

Yes

Current consumption (rated)

0.7 A

Current consumption (max)

0.95 A

Inrush current, max

1.9 A

I²t

0.02 A²·s

Infeed power to backplane bus

10 W

Power consumption from backplane bus (balanced)

5.5 W

Communication & Power

Firmware version

V2.9

I&M data

I&M0 - I&M3

Isochronous mode

Yes; distributed/central; min OB cycles 625 µs (distributed), 1 ms (central)

Configuration via TIA Portal

V17 (FW V2.9) / V15 (FW V2.5) or higher

Physical & Environmental

Screen diagonal

3.45 cm

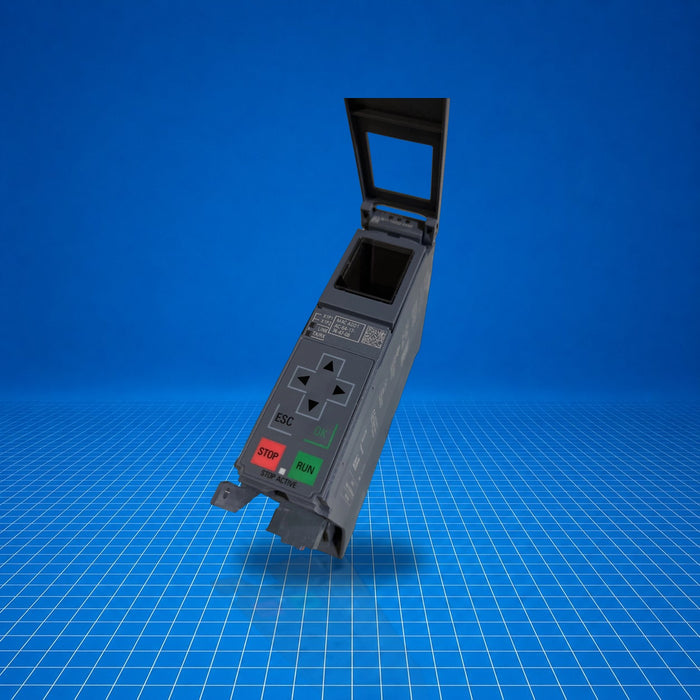

Number of keys

8

Mode buttons

2
