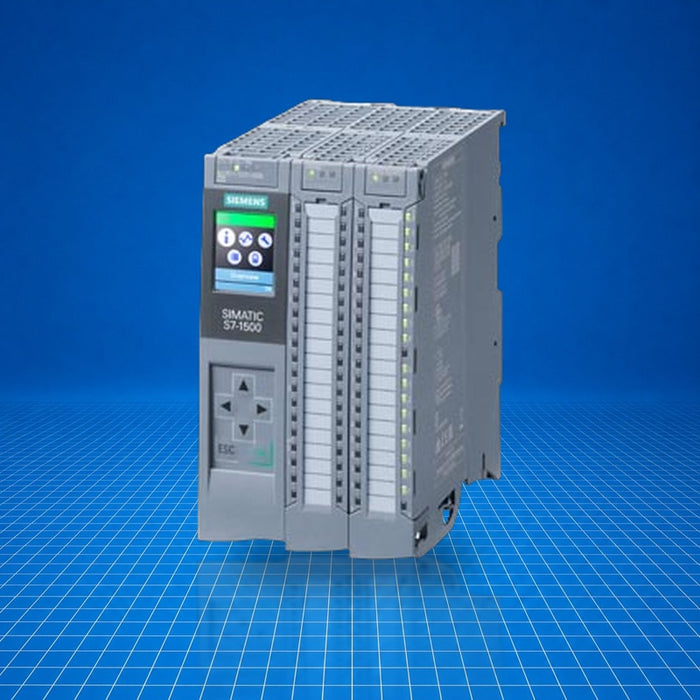

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7511-1CK01-0AB0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-1500 Compact CPU, model CPU 1511C-1 PN (part number 6ES7511-1CK01-0AB0), is a central processing unit module designed for use in SIMATIC S7-1500 automation systems. It integrates digital and analog I/O and supports PROFINET IRT communication with a 2-port switch. The module offers dedicated program memory (175 kB) and data memory (1 MB) and is configurable via TIA Portal V17 (FW V2.9) or V15 (FW V2.5) and later. Typical use cases include small-to-medium machine control, compact distributed handling systems, and integrated manufacturing cell applications.
Best Suited For
- Compact machine-level control systems
- On-machine I/O integration
- Small distributed automation cells
- Applications requiring integrated PROFINET IRT communication
Program memory
175 kbyte
Data memory
1 Mbyte
Digital I/O
16 inputs, 16 outputs
Analog I/O
5 inputs, 2 outputs
Communication
PROFINET IRT, 2-port switch
Technical Specifications
I/O & Electrical
Digital inputs (from L+, per group, max)
20 mA
Digital outputs (from L+, per group, without load)
30 mA
Encoder supply outputs
1; common 24 V encoder supply
Communication & Power
Supply voltage (rated)
24 V DC
Supply voltage range (lower)
19.2 V DC (20.4 V for I/O supply)
Supply voltage range (upper)
28.8 V DC
Reverse polarity protection
Yes
Current consumption (rated, without load)
0.8 A
Current consumption (max, CPU + load)
1 A; 10 A
Inrush current, max
1.9 A
I²t
0.34 A²·s
Power consumption from backplane bus (balanced)
8.5 W
Infeed power to backplane bus
10 W
Power loss, typical
11.8 W
Physical & Environmental
Screen diagonal
3.45 cm
Number of keys
8
Mode buttons
2
Mains-failure stored energy time
5 ms
Repeat rate, min
1/s
