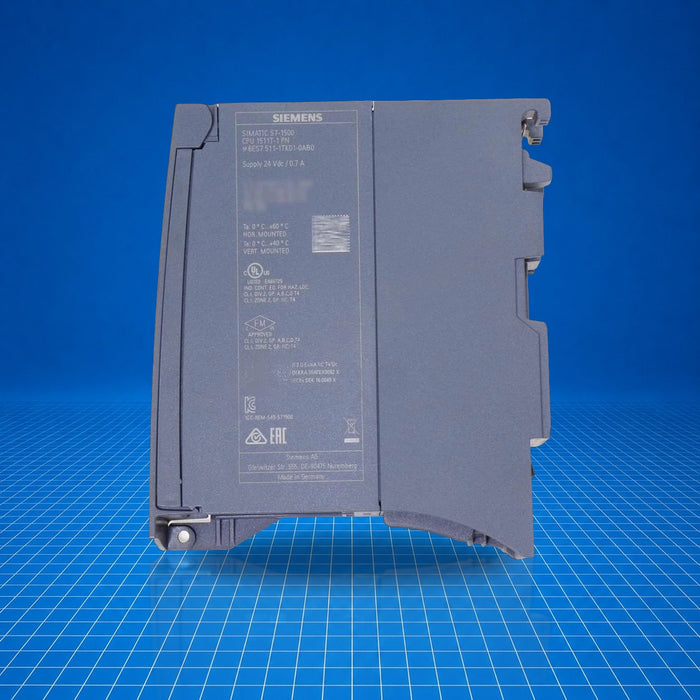

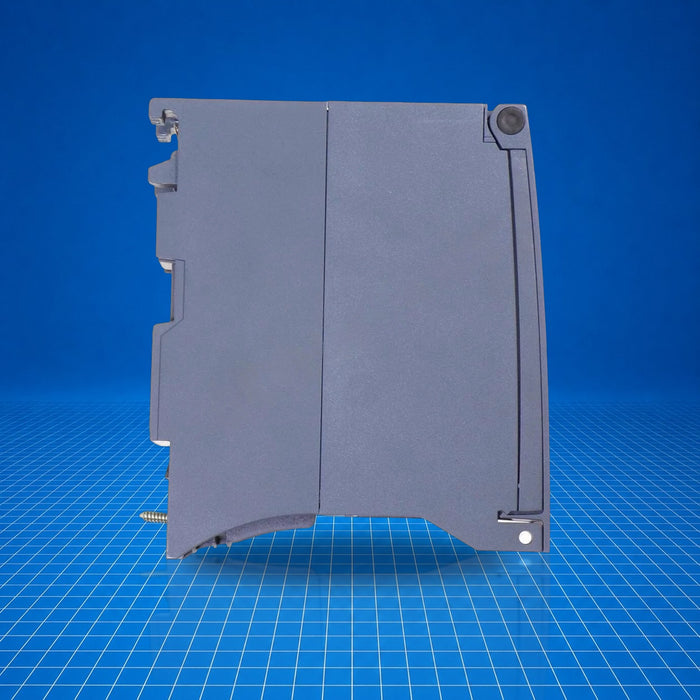

6ES7511-1TK01-0AB0 Siemens
Original price
$0.00
-
Original price
$1,909.06
Original price
$1,909.06
$0.00
-
$1,909.06
Current price
$1,909.06
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

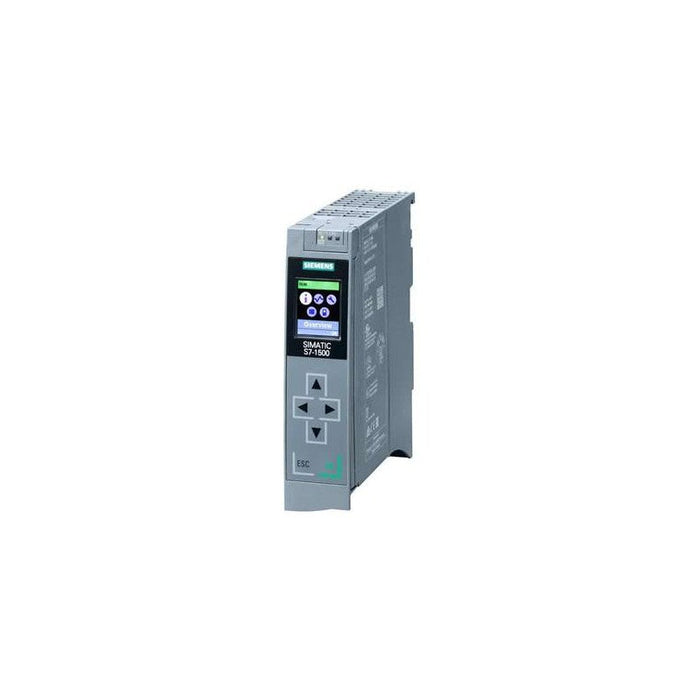

The Siemens 6ES7511-1TK01-0AB0 is a CPU module from the SIMATIC S7-1500T family (CPU 1511T-1 PN). It operates as a central processing unit for standard and technology-integrated automation tasks, featuring integrated operator control (keys and display) and PROFINET IRT communication via a two-port switch. Typical use cases include machine control, modular process automation, and motion or technological sequence execution.
Best Suited For
- Machine-level control with integrated technology functions
- Applications requiring on-device operator control (keys/display)
- PROFINET IRT-based distributed and central automation
- Systems using SIMATIC Memory Card for program backup
Program memory
225 kbyte
Data memory
1 Mbyte
Communication
PROFINET IRT (2-port switch)
Display/keys
3.45 cm display, 6 keys
Backplane power consumption
5.5 W
Technical Specifications
I/O & Electrical
Supply voltage (DC) rated
24 V
Supply voltage (DC) range
19.2 V…28.8 V
Reverse polarity protection
Yes
Input current (rated)
0.7 A
Inrush current, max.
1.9 A
I²t
0.02 A²·s
Communication & Power
Infeed power to backplane bus
10 W
Power consumption from backplane bus (balanced)
5.5 W
Typical power loss
5.7 W
Physical & Environmental
Display screen diagonal
3.45 cm
Number of keys
6
Mode selector switch
1
Dimensions (W × H × D)
35 mm × 147 mm × 129 mm
Weight, approx.
430 g
