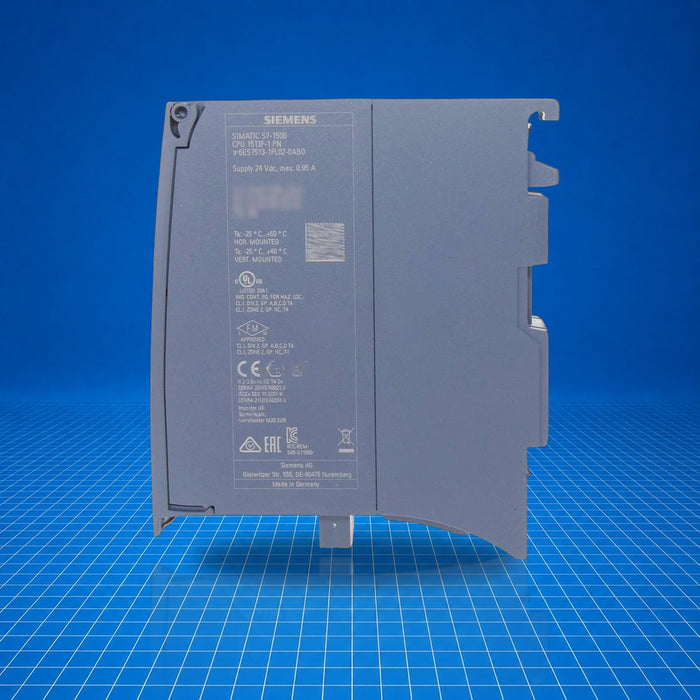

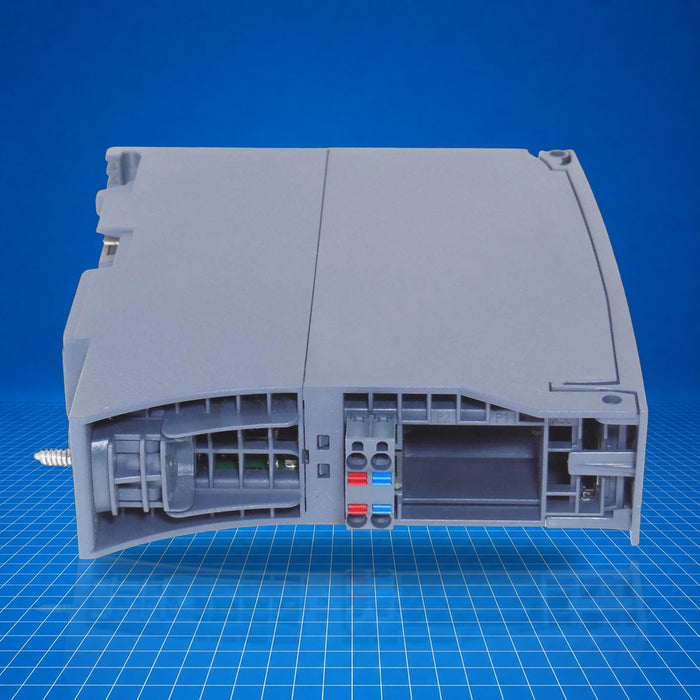

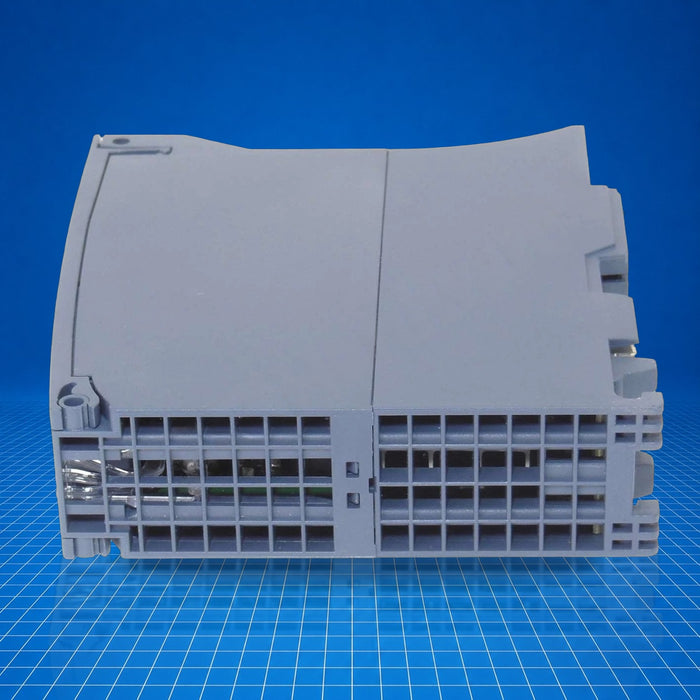

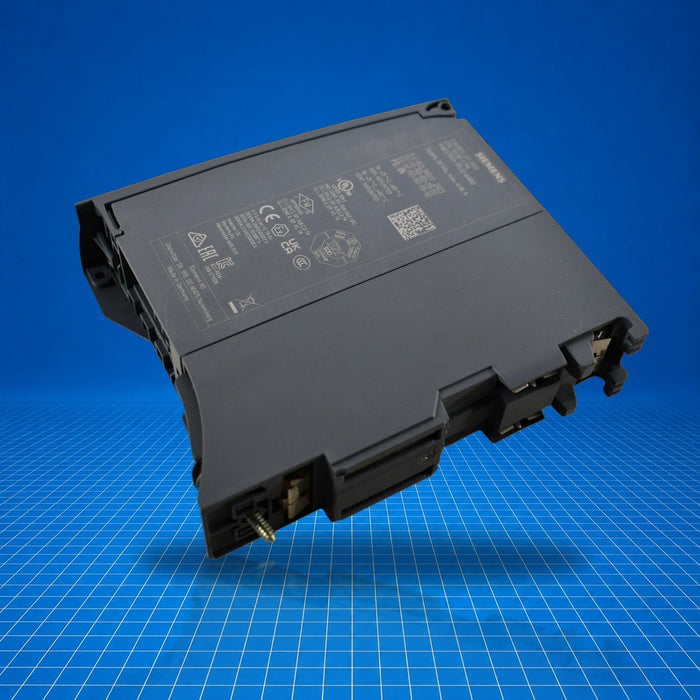

6ES7513-1FL02-0AB0 Siemens

Name: 6ES7513-1FL02-0AB0 Siemens
Brand: Siemens
SKU: 6ES7513-1FL02-0AB0
Price: 3582.0 USD
Availability: InStock

$2,691.00 - $3,582.00

$3,582.00

$2,691.00 - $3,582.00

$3,582.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

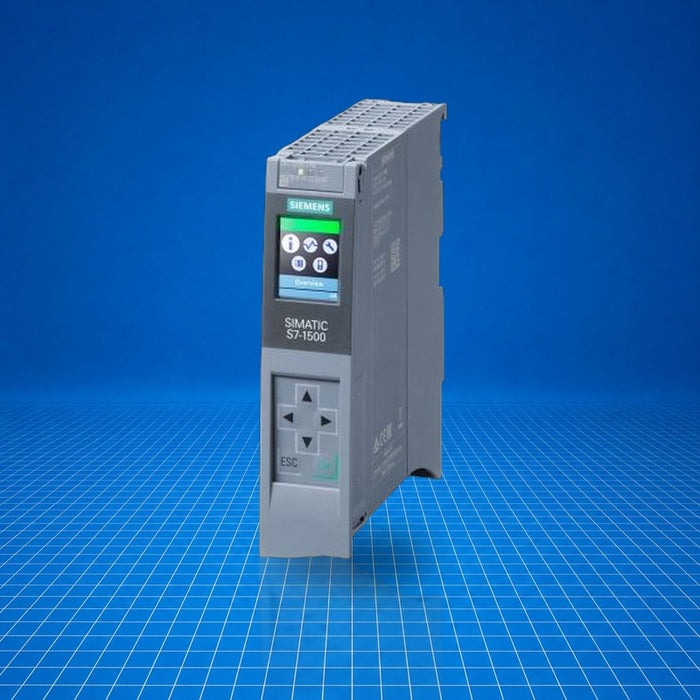

The Siemens 6ES7513-1FL02-0AB0 is a SIMATIC S7-1500F series central processing unit (CPU 1513F-1 PN). It functions as a failsafe safety-capable processor with separate work memory for program and data. The unit supports PROFINET IRT communication via integrated two-port switch, and requires a SIMATIC Memory Card. It is suited for safety-related machine control, emergency stop logic, interlock and safety-rated motion applications. The CPU is offered as a spare part following cancellation, and is replaced by model 6ES7513-1FM03-0AB0.

Best Suited For

Failsafe safety machine control systems
Emergency stop and interlock logic
PROFINET-IRT real-time safety communication
On-machine safety CPU replacement

Program memory

450 kbyte

Data memory

1.5 Mbyte

Communication

PROFINET IRT, 2-port switch

Weight

≈ 0.405 kg

Successor

6ES7513-1FM03-0AB0

Technical Specifications

I/O & Electrical

Current consumption (typical)

0.7 A

Current consumption (max)

0.95 A

Inrush current (max)

1.9 A

Infeed power to backplane bus

10 W

Power consumption (balanced)

5.5 W

Power loss (typical)

5.7 W

Communication & Power

Interface

PROFINET IRT, 2-port switch

SIMATIC memory card slot

1, required

Block protection / password / read-write protection

Yes

Physical & Environmental

Dimensions (W×H×D)

35 mm × 147 mm × 129 mm

Weight

≈ 405 g

Ambient temperature (operation)

-25 °C to +60 °C

Storage/transportation temperature

-40 °C to +70 °C

Altitude (operation)

≤ 5000 m

Certifications

FMTÜV (functional safety)CCC-ExRoHSWEEE

Approvals include FM, CCC-Ex, TUEV functional safety, maritime application; RoHS, WEEE, REACH compliance noted.
