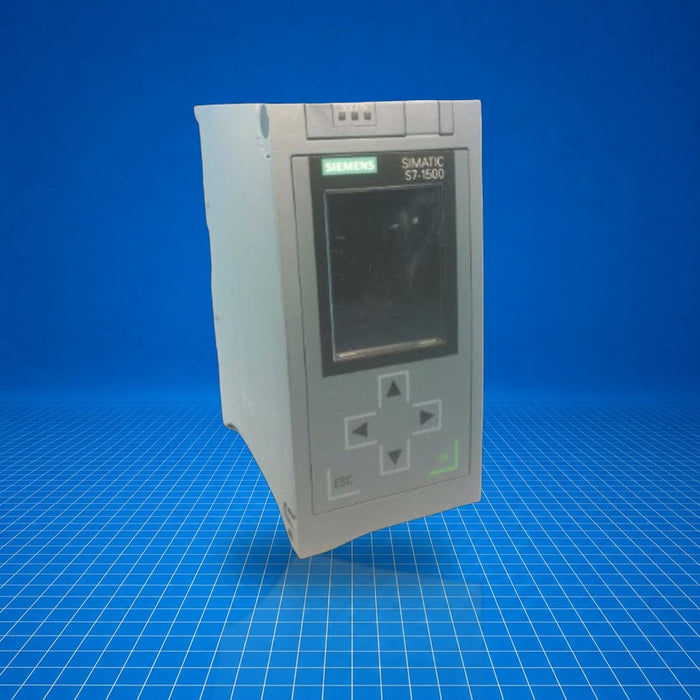

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7515-2AM00-0AB0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-1500 CPU 1515-2 PN (part number 6ES7515-2AM00-0AB0) is a mid-range programmable logic controller (PLC) core. It provides 500 KB of integrated program memory and 3 MB of integrated data memory, supports PROFINET IRT via a 2-port switch plus a secondary Ethernet port, and requires a SIMATIC memory card. The module supports both horizontal and vertical mounting orientations with differing temperature ranges and supplies control logic in automated industrial environments such as discrete manufacturing, packaging, machine tools or conveying systems.
Best Suited For
- Mid-size automation systems using PROFINET communication
- Applications requiring moderate program and data memory capacity
- Installations with flexible mounting orientations (horizontal or vertical)
- Use in manufacturing, conveying or machine tool control
Program memory
500 KB
Data memory
3 MB
Communication
PROFINET IRT (2-port switch), Ethernet
Supply voltage
24 V DC
Mounting temperature range
0 °C to 60 °C (horizontal), 0 °C to 40 °C (vertical)
Technical Specifications
I/O & Electrical
Program memory
500 KB
Data memory
3 MB
SIMATIC memory card
Required, up to 32 GB
Communication & Power
Interfaces
PROFINET IRT (2-port switch), Ethernet
Supply voltage
24 V DC (19.2 … 28.8 V DC), with reverse-polarity protection
Current (rated)
0.8 A
Inrush current (max.)
2.4 A
Power consumption (backplane bus)
6.2 W (balanced)
Typical power loss
6.3 W
Physical & Environmental
Mounting orientation
Horizontal and vertical
Operating temperature (horizontal)
0 °C to 60 °C
Operating temperature (vertical)
0 °C to 40 °C
Dimensions (W×H×D)
70 mm × 147 mm × 129 mm
Weight (approx.)
456 g
Certifications
CEUKCAcULuscFMusRCMEAC
