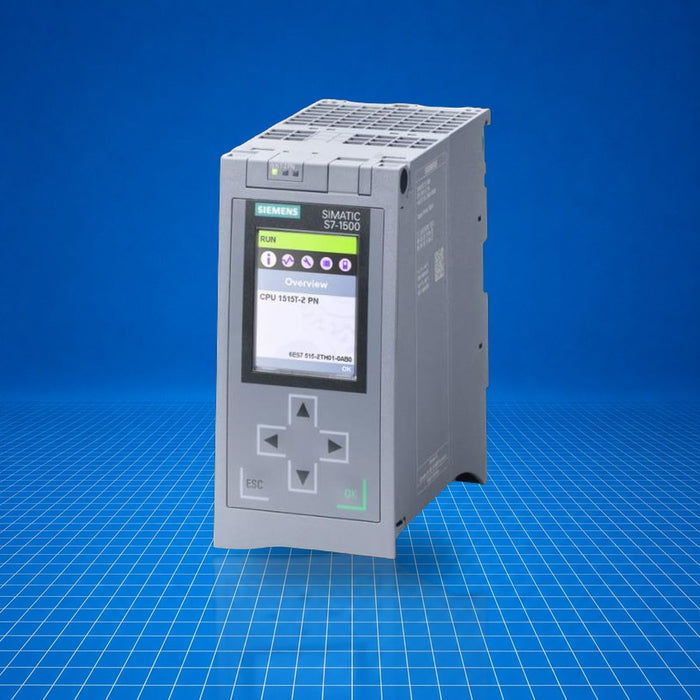

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7515-2TM01-0AB0 Siemens
Original price
$2,800.00
-
Original price
$5,066.00
Original price
$5,066.00
$2,800.00
-
$5,066.00
Current price
$5,066.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7515-2TM01-0AB0 is the SIMATIC S7-1500T CPU 1515T-2 PN central processing unit. It belongs to Siemens' S7-1500T family and serves as the core of control systems, managing logic and data processing functions. It is intended for machine-level control tasks in industrial environments such as packaging, material handling, or processing industries, where deterministic performance and integrated PROFINET communications are required. The module includes a built-in display and keys for basic operator interaction.
Best Suited For
- Machine-level automation with PROFINET IRT networks
- Systems requiring onboard operator display and mode switch
- Applications needing deterministic cycle times (500 µs distributed, 1 ms central)
- Projects using STEP 7 within TIA Portal from V17 (FW V2.9) onwards
- Control systems with I&M data requirements (I&M0-I&M3)
Display diag.
6.1 cm
Input voltage
24 V DC (19.2-28.8 V DC)
Current consumption
0.8 A
Power infeed / loss
12 W / 6.3 W
Cycle time, distributed/central
500 µs / 1 ms
Technical Specifications
I/O & Electrical
Input voltage
24 V DC
Permissible voltage range
19.2 V to 28.8 V DC
Reverse-polarity protection
Yes
Current consumption (rated)
0.8 A
Inrush current, max (I²t)
2.4 A; 0.02 A²·s
Communication & Power
Power infeed to backplane bus
12 W
Power loss (typical)
6.3 W
PROFINET interface
PROFINET IRT, 2-port switch
Cycle time, distributed/central
500 µs / 1 ms
Engineering via TIA Portal
From V17 (FW V2.9)
Physical & Environmental
Display diagonal
6.1 cm
Control keys
6 keys + 1 mode selector
Dimensions (W×H×D)
70 mm × 147 mm × 129 mm
Weight, approx.
830 g
