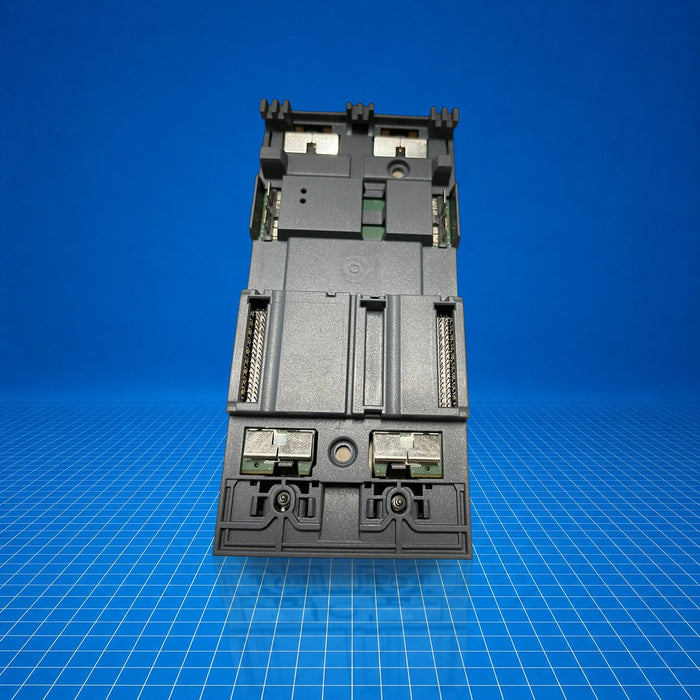

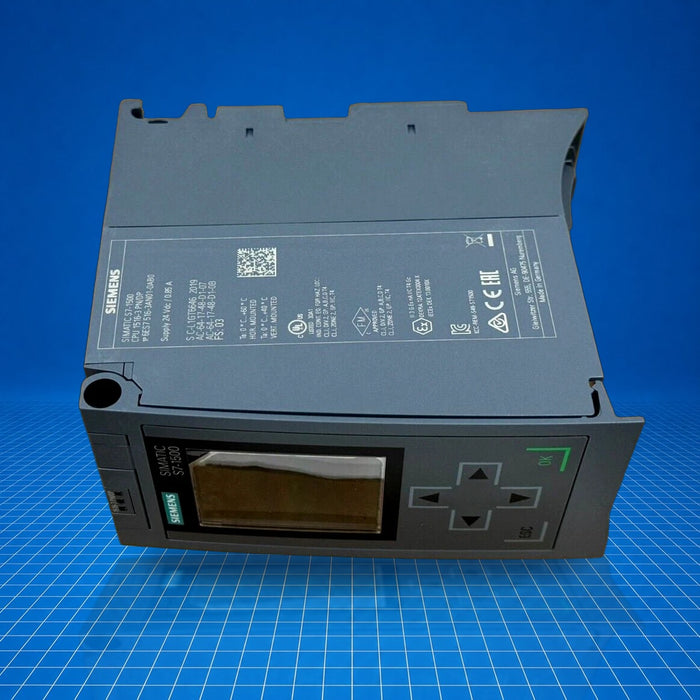

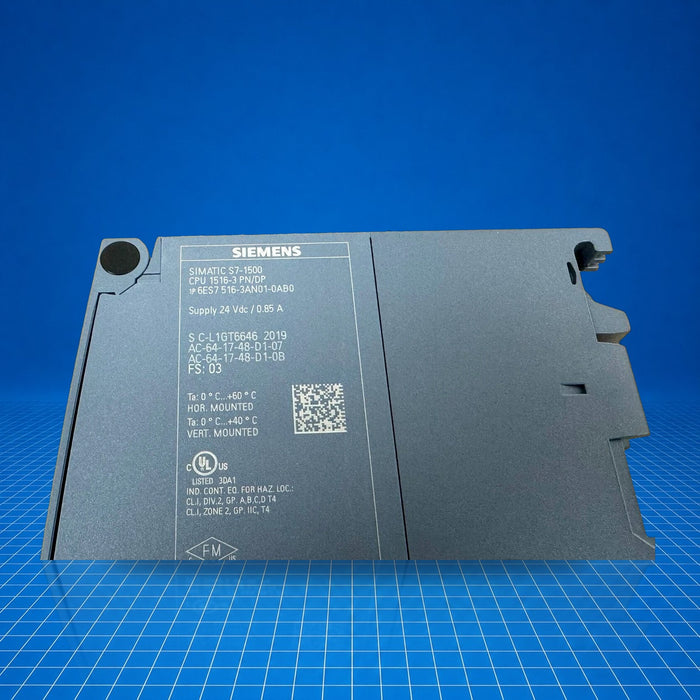

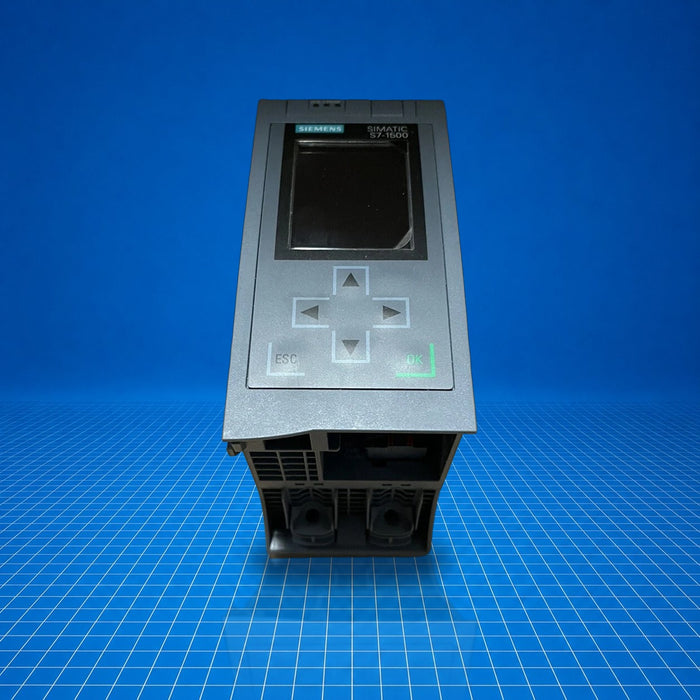

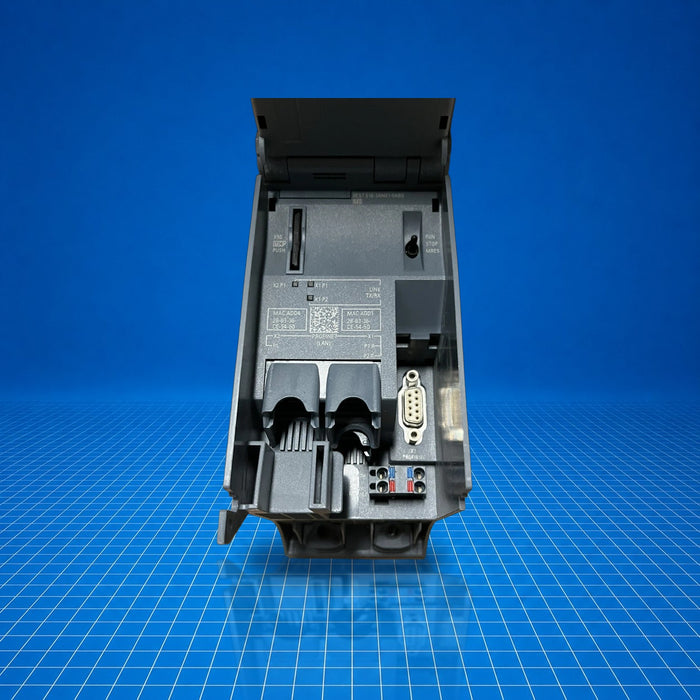

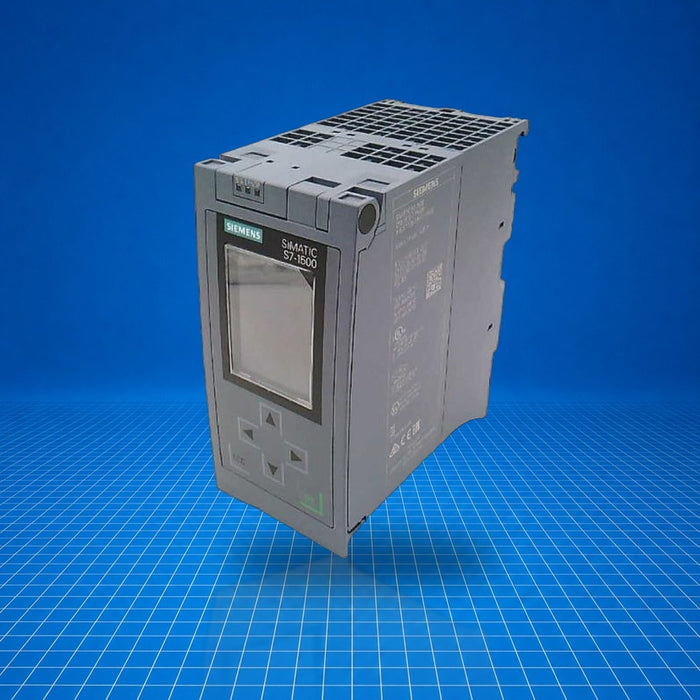

6ES7516-3AN01-0AB0 Siemens
Original price
$3,018.40
-
Original price
$4,286.45
Original price
$3,018.40
$3,018.40
-
$4,286.45
Current price
$3,018.40
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7516-3AN01-0AB0 is a SIMATIC S7-1500 series CPU (CPU 1516-3 PN/DP) central processing unit. It provides 1 MB of program memory and 5 MB of data memory, and supports real-time control via integrated PROFINET IRT (with two-port switch), PROFINET RT, and PROFIBUS communications. This module requires a SIMATIC memory card and is suited for mid-range automation tasks within distributed and central control architectures. In automation systems it handles processing, communication routing, and system diagnostics.
Best Suited For
- Distributed control over PROFINET IRT and PROFIBUS networks
- Medium-scale automation systems requiring up to ~32 kB I/O image per subsystem
- Applications with moderate program/data memory requirements
- Integration with TIA Portal engineering environments
Program / Data memory
1 MB / 5 MB
Communication interfaces
PROFINET IRT (2-port), PROFINET RT, PROFIBUS
Input voltage
24 V DC (19.2-28.8 V DC)
Power consumption
12 W (backplane infeed)
Technical Specifications
I/O & Electrical
Input voltage
24 V DC (19.2-28.8 V DC)
Current consumption (rated)
0.85 A
Inrush current (max)
2.4 A
Communication & Power
Power consumption from backplane bus
6.7 W
Power loss (typ.)
7 W
Communication interfaces
PROFINET IRT (2-port), PROFINET RT, PROFIBUS (RS-485)
Physical & Environmental
Dimensions (W×H×D)
70 mm × 147 mm × 129 mm
Weight (approx.)
845 g
Certifications
ULKCEACChina RoHS
