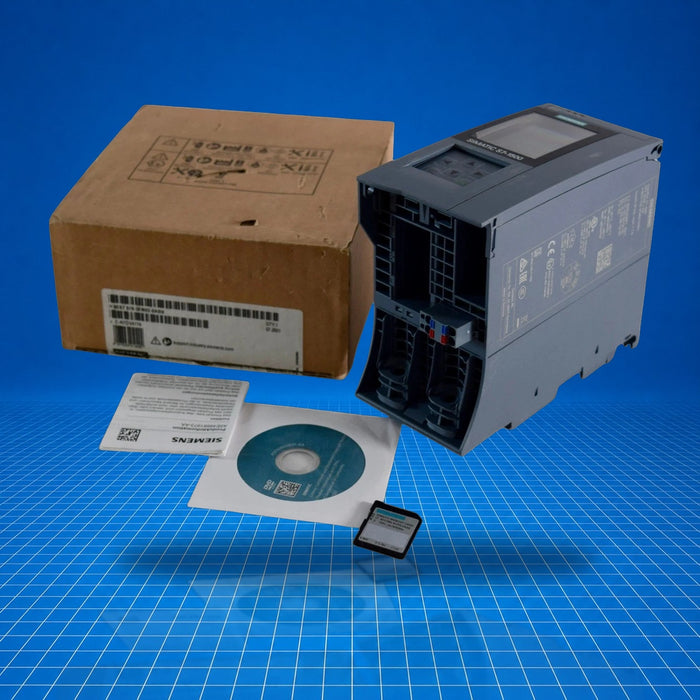

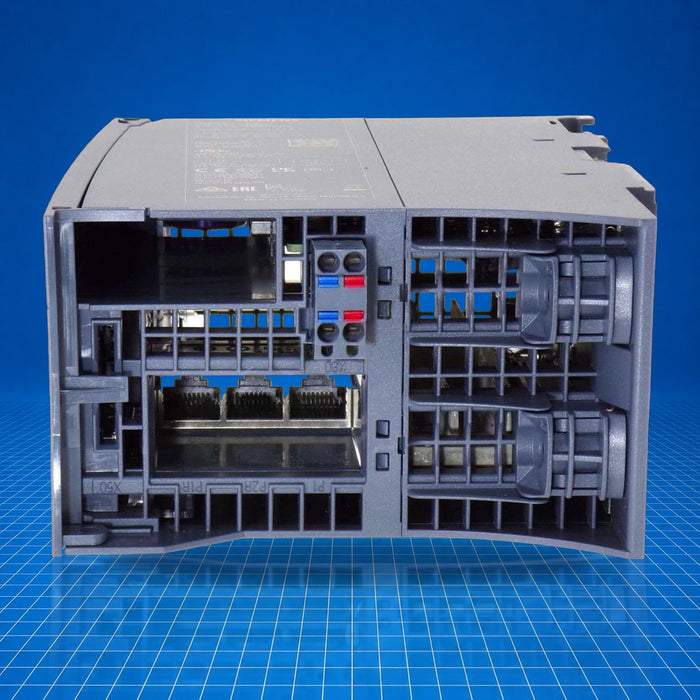

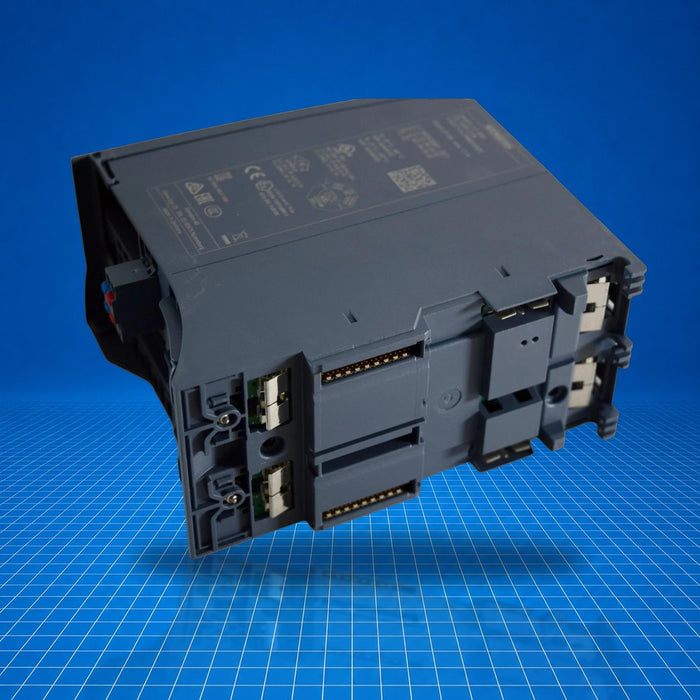

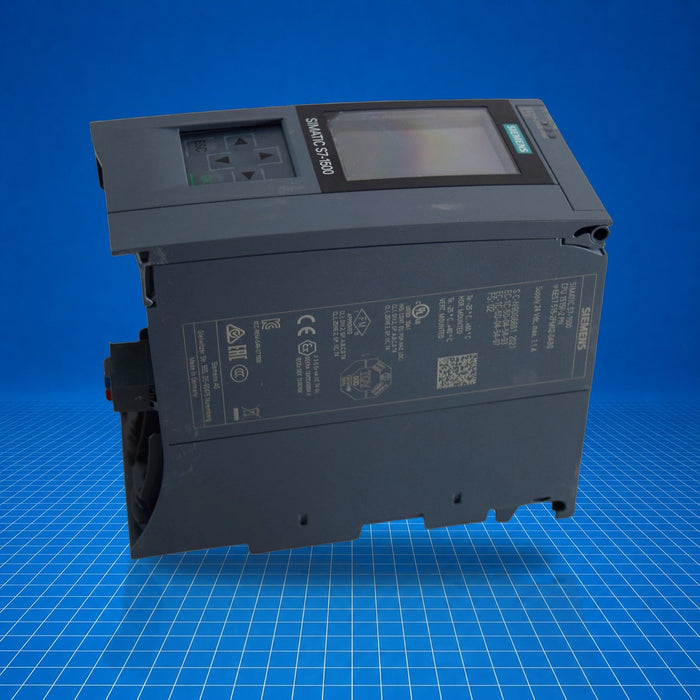

6ES7516-3FN02-0AB0 Siemens
Original price
$3,781.63
-
Original price
$4,372.81
Original price
$4,372.81
$3,781.63
-
$4,372.81
Current price
$4,372.81
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

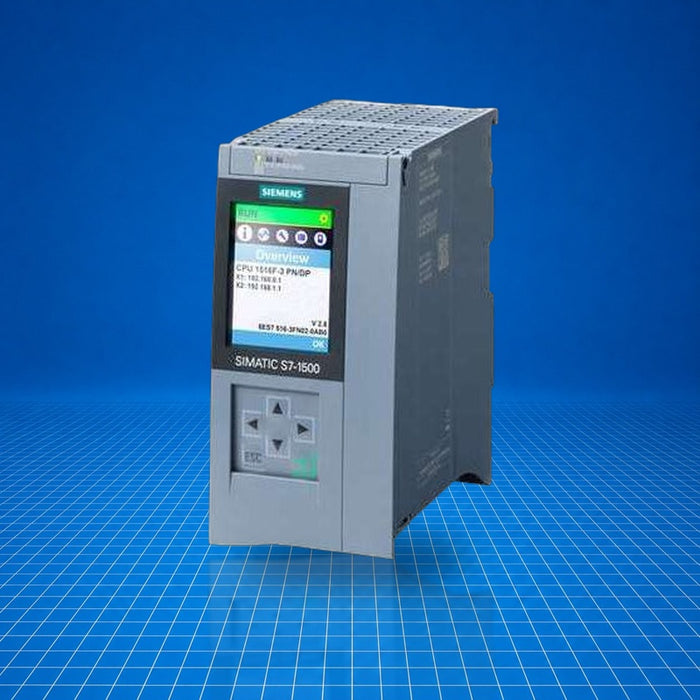

The Siemens SIMATIC S7-1500F CPU, designated as 6ES7516-3FN02-0AB0, is a fault-tolerant central processing unit (CPU 1516F-3 PN/DP) for safety-related automation tasks. It provides 1.5 MB program memory and 5 MB data memory, with integrated communications via PROFINET IRT (with 2-port switch), PROFINET RT, and PROFIBUS. It processes bits in 10 ns and requires a SIMATIC Memory Card. It is primarily used in functional-safety applications in industrial environments, such as safety controllers in manufacturing, process, or machinery safety systems.
Best Suited For
- Safety-related control applications (SIL 3 environments)
- Integration with Siemens S7-1500 F-family
- Spare-part replacement in existing S7-1500F installations
- Systems requiring PROFINET IRT plus PROFIBUS connectivity
Program / Data memory
1.5 MB / 5 MB
Communications
PROFINET IRT, PROFINET RT, PROFIBUS
Bit performance
10 ns
Supply voltage
24 V DC (19.2 - 28.8 V DC)
Current consumption (rated)
0.85 A
Technical Specifications
I/O & Electrical
Supply voltage (rated)
24 V DC
Supply voltage range
19.2 - 28.8 V DC
Reverse-polarity protection
Yes
Current consumption (rated)
0.85 A
Current consumption (max.)
1.1 A
Inrush current (max.)
2.4 A
I²t
0.02 A²·s
Communication & Power
Interfaces
PROFINET IRT (2-port switch), PROFINET RT, PROFIBUS
Memory card slots
1 (SIMATIC memory card required)
Physical & Environmental
Screen (diagnostic)
6.1 cm diagonal
Keys
8 keys
Mode buttons
2
Certifications
SIL 3
