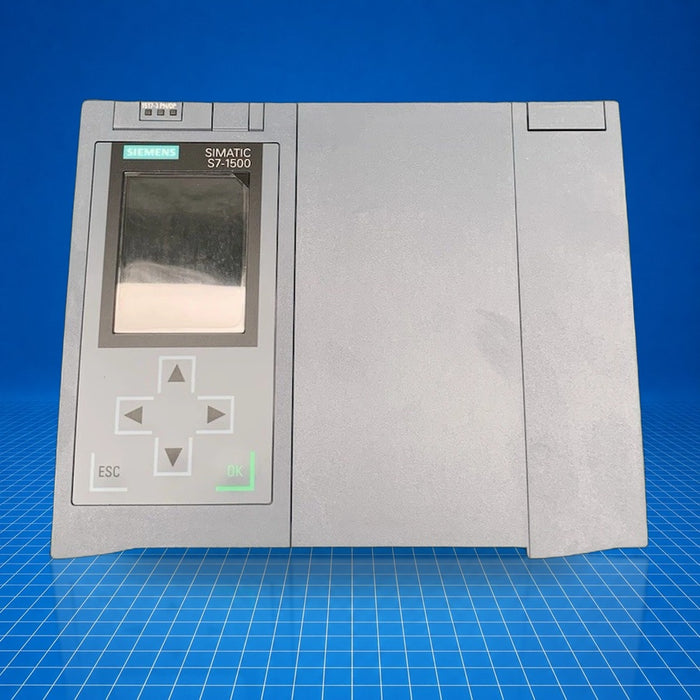

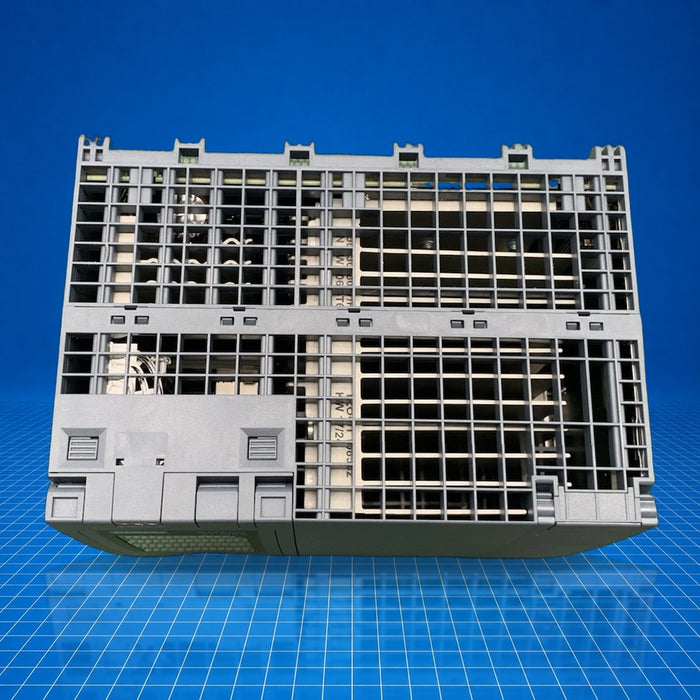

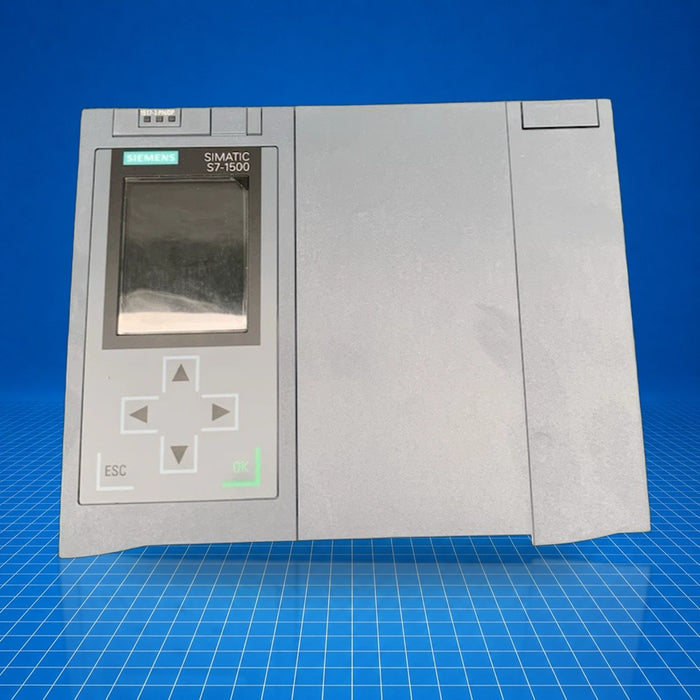

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7517-3AP00-0AB0 Siemens
Original price
$8,644.79
-
Original price
$9,892.50
Original price
$9,892.50
$8,644.79
-
$9,892.50
Current price
$9,892.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

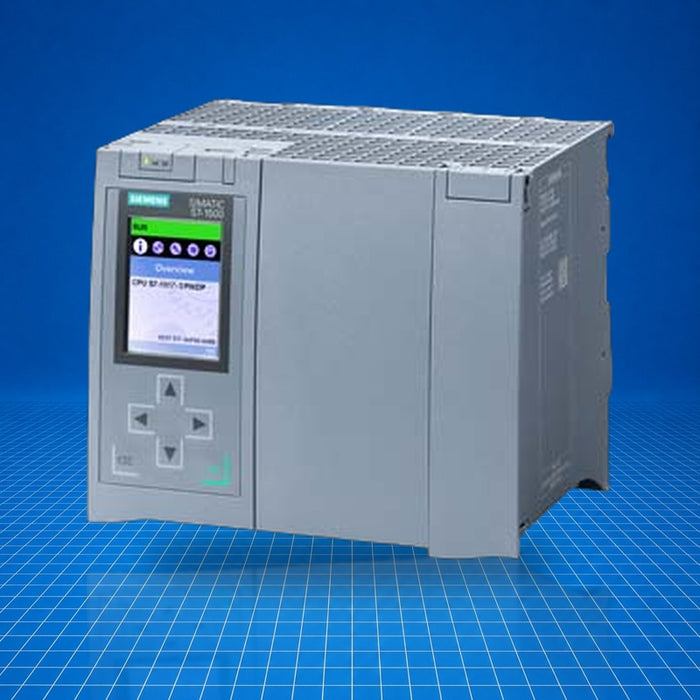

Siemens 6ES7517-3AP00-0AB0 is a SIMATIC S7-1500 CPU 1517-3 PN/DP central processing unit. It features 2 MB of program memory and 8 MB of data memory. It provides dual PROFINET IRT (with integrated two-port switch), PROFINET RT, and PROFIBUS DP interfaces. Typical control-system roles include handling complex logic, distributed I/O integration, and deterministic communication in mid- to large-scale automation systems. It supports isochronous mode and requires a SIMATIC Memory Card for extended functionality.
Best Suited For
- Distributed I/O systems over PROFINET or PROFIBUS
- Applications requiring precise synchronization (isochronous mode)
- Mid- to large-scale process and discrete automation
- Integration with TIA Portal engineering environments
Program / Data memory
2 MB / 8 MB
PROFINET IRT interfaces
2-port switch + RT
PROFIBUS interface
1 DP
Power consumption (backplane)
30 W
Input current (rated)
1.55 A
Technical Specifications
I/O & Electrical
Input voltage (DC)
24 V (19.2 V - 28.8 V)
Reverse-polarity protection
Yes
Current consumption (rated)
1.55 A
Current consumption (max)
1.9 A
Inrush current (max)
1.9 A
I²t
0.4 A²·s
Communication & Power
PROFINET IRT ports
2 (with integrated switch)
PROFINET RT
Yes
PROFIBUS DP
1 interface
Backplane bus power consumption
30 W
Power loss (typical)
24 W
Physical & Environmental
Display diagonal
6.1 cm
Number of keys
6
Mode selector switch
1
Memory-card slots
1
Certifications
RoHSWEEEREACH info
RoHS-compliant; WEEE take-back obligation; REACH candidate-list substances information provided.
