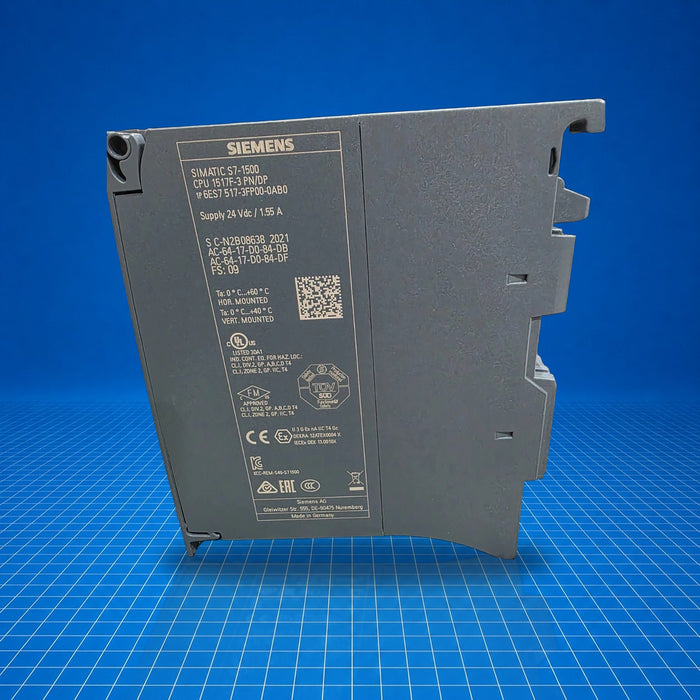

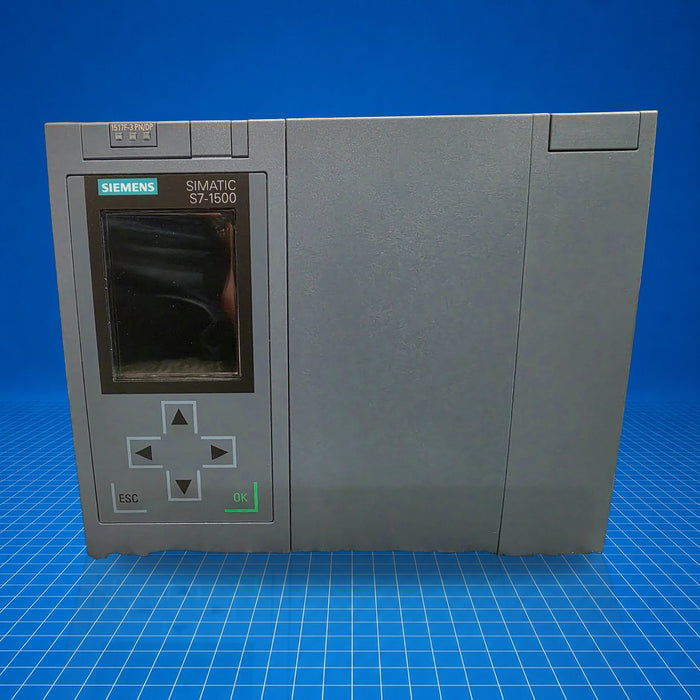

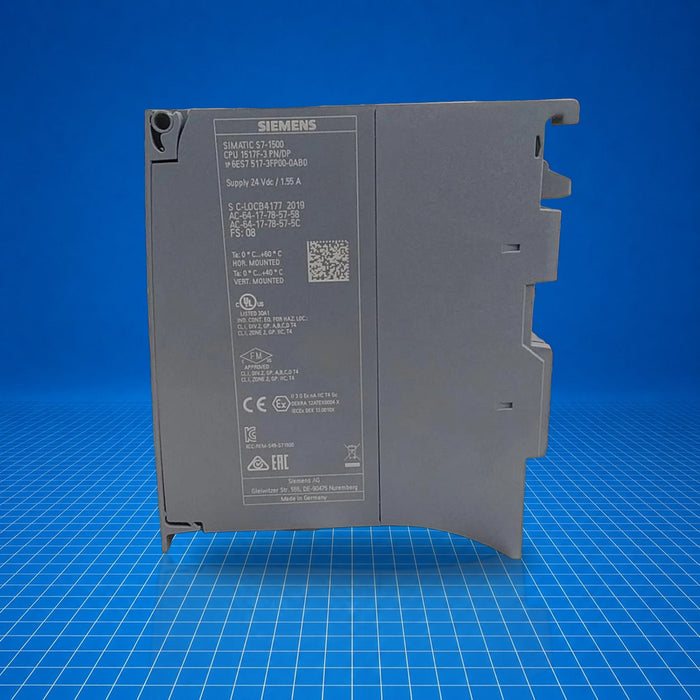

6ES7517-3FP00-0AB0 Siemens
Original price
$4,760.00
-
Original price
$6,298.50
Original price
$6,298.50
$4,760.00
-
$6,298.50
Current price
$6,298.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens 6ES7517-3FP00-0AB0 is a SIMATIC S7-1500F CPU (1517F-3 PN/DP) serving as a central processing unit in fail-safe control systems. It provides 3 Mbyte integrated program memory and 8 Mbyte data memory, with high-speed bit processing (2 ns). Featuring dual PROFINET (with IRT, integrated switch) and PROFIBUS DP communication, it is suited for safety-related automation tasks in manufacturing, processing, and machine safety systems.
Best Suited For
- Safety integrated systems in manufacturing plants
- Distributed I/O control via PROFINET and PROFIBUS
- Failsafe machine control applications
- Integration with Motion and PID control modules
Program memory
3 Mbyte
Data memory
8 Mbyte
Bit processing time
2 ns
Interfaces
2× PROFINET, 1× PROFIBUS
Power consumption (backplane)
30 W
Technical Specifications
I/O & Electrical
Supply voltage (DC)
24 V (19.2 … 28.8 V)
Current consumption (rated)
1.55 A
Current consumption (max.)
1.9 A
Inrush current, max.
1.9 A
Backplane bus power (infeed)
12 W
Communication & Power
PROFINET interfaces
2 (with integrated switch, IRT)
PROFIBUS interface
1 (RS-485)
Plug-in memory card support
Yes (max. 32 Gbyte)
Power consumption (backplane, typ.)
30 W
Power loss (typ.)
24 W
Physical & Environmental
Dimensions (W×H×D)
175 × 147 × 129 mm
Weight
1 929 g
Ambient temperature (operation)
0 … 60 °C (horizontal), 0 … 40 °C (vertical)
Storage temperature
-40 … 70 °C
Installation altitude, max.
5 000 m
Certifications
PLeSIL 3CEUKCAULRCMEACChina RoHS
Performance level PLe / SIL 3 capable; EU/UK declarations of conformity; UL, RCM, EAC, China RoHS compliant.
