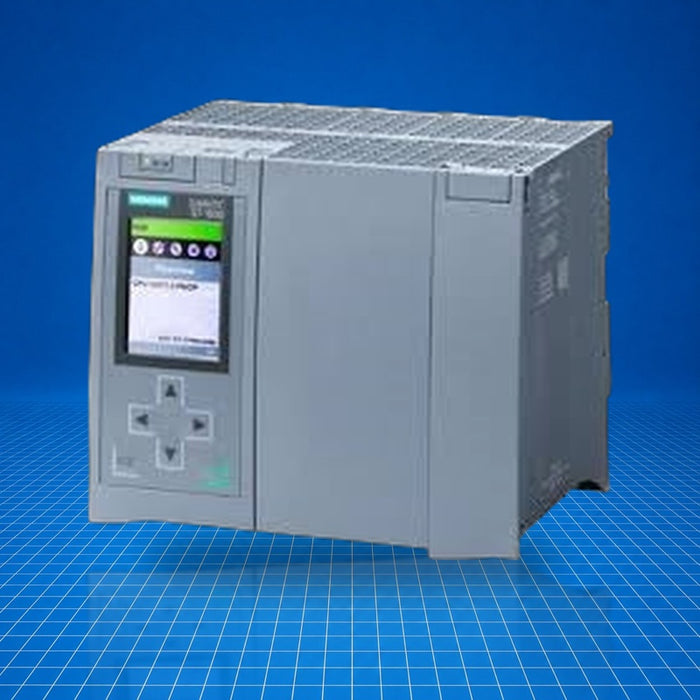

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7517-3TP00-0AB0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7517-3TP00-0AB0 is a Siemens SIMATIC S7-1500T series central processing unit (CPU 1517T-3 PN/DP). It combines a compact built-in operator panel with a 6.1 cm display and integrated logic and communication capabilities. The module provides 3 MB program and 8 MB data work memory and supports PROFINET IRT (via dual-port switch), Ethernet, and PROFIBUS. The on-board operator panel facilitates local diagnostics and control. Typical uses include machine-level control, centralized automation with local operator access, and integration into PROFINET/PROFIBUS hybrid networks.
Best Suited For
- Machine-level control with integrated operator interface
- Systems requiring both PROFINET IRT and PROFIBUS connectivity
- Applications needing local diagnostics via built-in display
- Upgrades within S7-1500T platform environments
Program / Data Memory
3 MB / 8 MB
Operator Panel
6.1 cm display, 6 keys
Communication Ports
PROFINET IRT (2-port), Ethernet, PROFIBUS
Supply Voltage
24 V DC (19.2 - 28.8 V DC)
Technical Specifications
I/O & Electrical
Supply voltage (DC)
24 V DC (19.2 - 28.8 V DC)
Reverse polarity protection
Yes
Communication & Power
Interfaces
PROFINET IRT (2-port switch), Ethernet, PROFIBUS
Program memory
3 MB
Data memory
8 MB
Number of SIMATIC memory card slots
1
Current consumption (rated)
1.55 A
Current consumption (max)
1.9 A
Inrush current (max)
1.9 A
I²t
0.4 A²·s
Power infeed to backplane bus
12 W
Power consumption from backplane bus
30 W
Typical power loss
24 W
Physical & Environmental
Display diagonal
6.1 cm
Number of front keys
6
