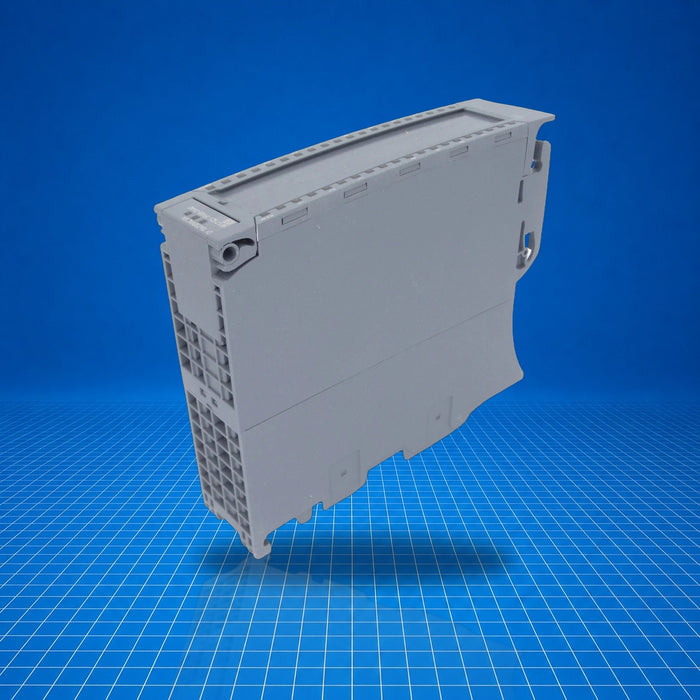

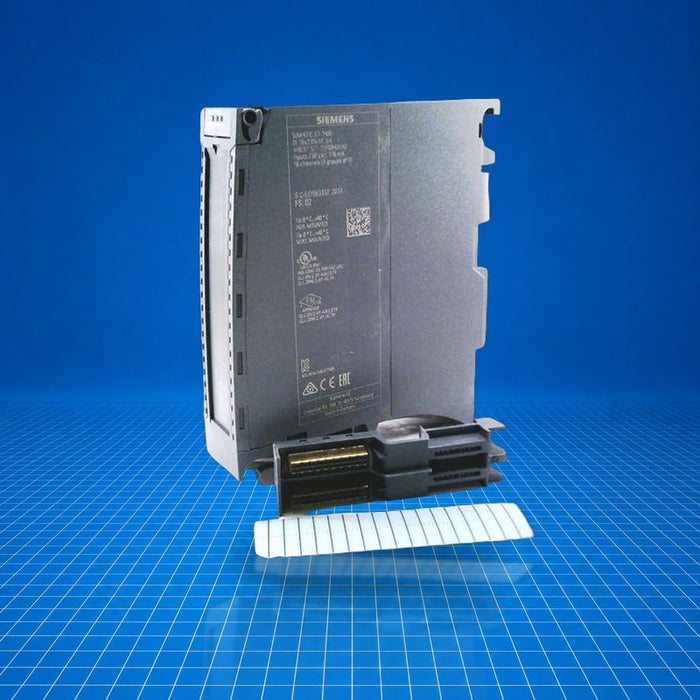

6ES7521-1FH00-0AA0 Siemens
Original price
$380.16
-
Original price
$880.00
Original price
$380.16
$380.16
-
$880.00
Current price
$380.16
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7521-1FH00-0AA0 is a SIMATIC S7-1500 digital input module (SM 521 family) providing 16 AC input channels (230 V / 120 V AC, 50/60 Hz) arranged in groups of four. It is designed for integration into Siemens S7-1500 automation systems and communicates via the standard backplane bus. Typical uses include AC mains-level status monitoring, process control signal interfacing, and distributed input module deployment in manufacturing and infrastructure control systems. The module supports I&M data, prioritized startup, and is configurable via TIA Portal from version V12.
Best Suited For
- Integration into SIMATIC S7-1500 control system racks
- Monitoring 120/230 V AC process-level signals
- Distributed digital input applications
- Systems requiring prioritized startup and I&M data capabilities
Channels
16
Input rating
120/230 V AC 50/60 Hz
Power consumption (bus)
1 W
Input delay
20 ms
Technical Specifications
I/O & Electrical
Number of digital inputs
16
Rated input voltage AC
230 V; 120/230 V AC, 50/60 Hz
Signal "0" voltage range
0 V AC to 40 V AC
Signal "1" voltage range
79 V AC to 264 V AC
Input current for "1", typ.
11 mA (at 230 V AC); 5.5 mA (at 120 V AC)
Input delay (rated voltage)
20 ms
Max. input delay 0→1 or 1→0
25 ms
Communication & Power
Power consumption on backplane bus
1 W
Power loss, typ.
4.9 W
Physical & Environmental
Width
35 mm
Height
147 mm
Depth
129 mm
Weight, approx.
300 g
Operating temperature (horizontal)
0 °C to 60 °C
Operating temperature (vertical)
0 °C to 40 °C
Isolation voltage
250 V AC (to backplane bus); 500 V AC (between channels); tested at 3100 V DC
Certifications
RoHS
