6ES7522-1BH01-0AB0 Siemens

Name: 6ES7522-1BH01-0AB0 Siemens
Brand: Siemens
SKU: 6ES7522-1BH01-0AB0
Price: 375.0 USD
Availability: InStock

$375.00 - $449.85

$375.00

$375.00 - $449.85

$375.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

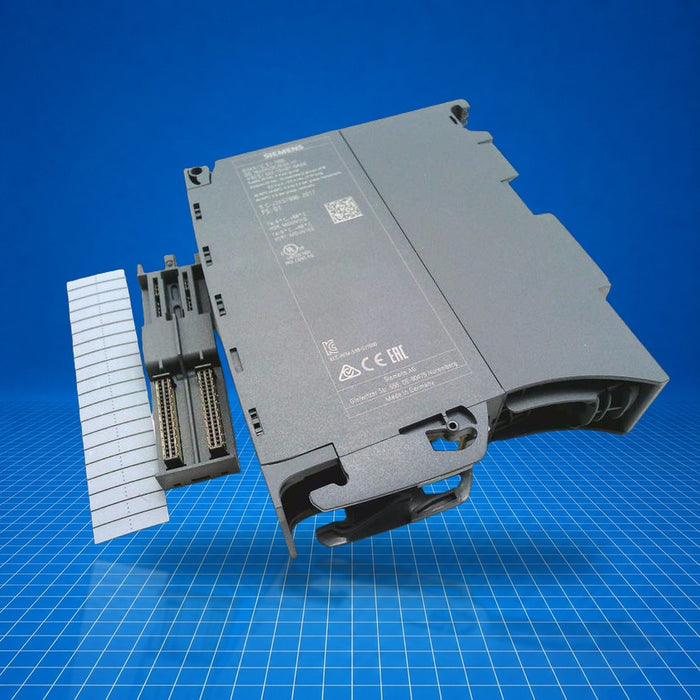

The Siemens 6ES7522-1BH01-0AB0 is a SIMATIC S7-1500 digital output module (DQ 16×24 V DC / 0.5 A HF) intended for installation on an S7-1500 controller's backplane. It provides 16 transistor-type sourcing outputs grouped in two banks of 8, each group rated at 4 A, featuring single-channel diagnostics and an integrated switching-cycle counter. It supports safety-oriented shutdowns (SIL 2 / PL d) of load groups and is configurable via TIA Portal. This module functions as a point-level actuator interface in machinery, discrete manufacturing, and safety-aware automation systems. Part number: 6ES7522-1BH01-0AB0.

Best Suited For

Discrete actuator control in S7-1500-based systems
Safety-related load group shutdowns up to SIL 2 / PL d
Applications requiring per-channel diagnostics
Integration via TIA Portal with isochronous and prioritized startup

Outputs

16 channels (sourcing transistor)

Group current

4 A per 8-channel group

Supply voltage

24 V DC (19.2 - 28.8 V DC)

Diagnostics

single-channel, with RUN/ERROR/MAINT LEDs

Technical Specifications

I/O & Electrical

Type of digital output

Transistor, sourcing

Number of outputs

16

Current per channel (max)

0.5 A

Current per group (max)

4 A

Current per module (max)

8 A

Short-circuit protection

Clocked electronically (typ. response 1 A)

Switching frequency, resistive load (max)

100 Hz

Switching frequency, inductive load (max)

0.5 Hz

Switching frequency, lamp load (max)

10 Hz

Cable length, shielded (max)

1 000 m

Cable length, unshielded (max)

600 m

Communication & Power

Backplane power consumption

1.1 W

Typical power loss

2 W

Supply voltage rated value

24 V DC

Supply voltage range

19.2 - 28.8 V DC

Reverse-polarity protection

Yes; internal 7 A per group

Physical & Environmental

Dimensions (W×H×D)

35 mm × 147 mm × 129 mm

Weight

~230 g

Ambient temp. (horizontal)

-30 °C to 60 °C

Ambient temp. (vertical)

-30 °C to 40 °C

Altitude max

5 000 m

Certifications

ULKCRCMEACFMCEUKCA

Approvals: UL, KC, RCM, EAC, FM; EU and UK Declarations of Conformity; China RoHS compliance.

1-Year Warranty

Every tested unit is backed by our free 1-year PLC Department warranty, direct from us.

Fast Shipping

Free ground shipping. Orders by 1 PM CST ship same-day, with overnight available.

USA Stock

Sourced and shipped from Texas, USA. Never anonymous overseas marketplace stock.

30-Day Returns

Hassle-free RMA. If the part is not right for your application, send it back within 30 days.

Reseller Options →
