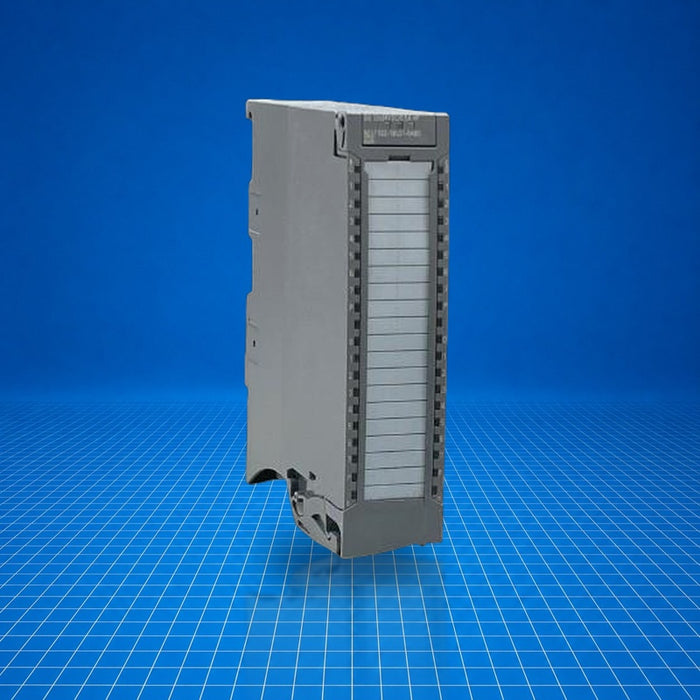

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7522-1BL01-0AB0 Siemens

Name: 6ES7522-1BL01-0AB0 Siemens
Brand: Siemens
SKU: 6ES7522-1BL01-0AB0
Price: 657.25 USD
Availability: InStock

$657.25 - $893.75

$657.25

$657.25 - $893.75

$657.25

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC S7-1500 digital output module 6ES7522-1BL01-0AB0 (DQ 32×24 V DC/0.5 A HF) provides 32 digital output channels grouped in sets of 8, each channel rated for 0.5 A. It operates on 24 V DC and integrates single-channel diagnostics, switching cycle counter, and substitute value functionality. It supports safety-oriented shutdown of load groups to SIL 2 / Category 3 PL d. Typical use cases include actuator control in modular automation systems and safety-aware industrial process environments.

Best Suited For

Actuator control in S7-1500 systems
Applications requiring single-channel diagnostics
Safety-oriented shutdown to SIL 2 / PL d
Grouping outputs per 8-channel segments

Channels

32 digital outputs

Output current per channel

0.5 A

Group load

4 A per group of 8 channels

Safety support

SIL 2 / Category 3 PL d

Technical Specifications

I/O & Electrical

Supply voltage (rated)

24 V DC

Supply voltage range

19.2 V - 28.8 V DC

Reverse polarity protection

Yes; internal protection with 7 A per group

Current consumption (max)

60 mA

Communication & Power

Backplane bus power consumption

1.1 W

Power loss (typical)

3.5 W

Diagnostics

Single-channel diagnostics

Other functions

Substitute value; switching cycle counter; I&M0-I&M3; isochronous mode; prioritized startup; MSO

Physical & Environmental

Channels grouping

32 channels in groups of 8

Mounting

DIN-rail (SM 522 family)

Weight

0.319 kg (0.94 lbs)

Protection level

IP20

Certifications

SIL 2PL dIP20

Supports safety-oriented shutdown of load groups up to SIL 2 per EN IEC 62061:2021 and Category 3 / PL d per EN ISO 13849-1:2015.
