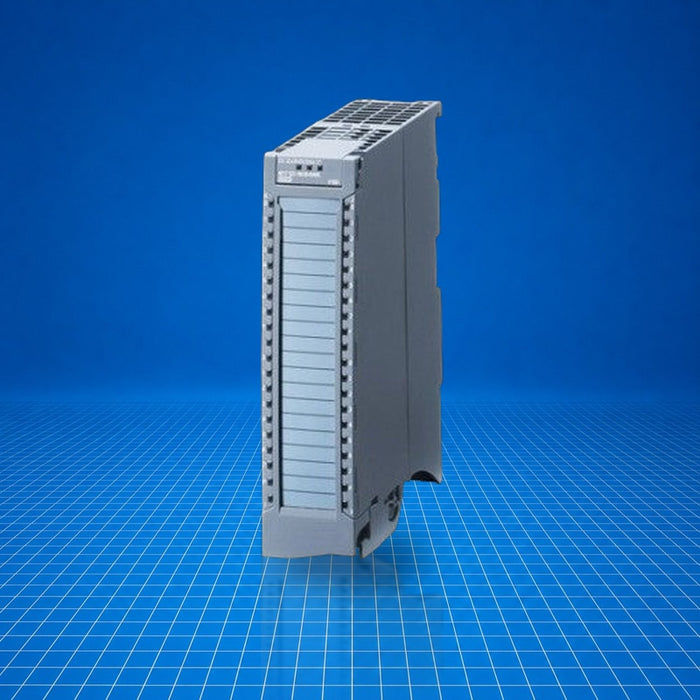

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7522-5HH00-0AB0 Siemens

Name: 6ES7522-5HH00-0AB0 Siemens
Brand: Siemens
SKU: 6ES7522-5HH00-0AB0
Price: 893.75 USD
Availability: InStock

$701.80 - $893.75

$893.75

$701.80 - $893.75

$893.75

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (6) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC S7-1500 digital output module, part number 6ES7522-5HH00-0AB0, provides 16 relay outputs at 230 V AC with 2 A per channel (grouped in pairs at 4 A per group) and includes per-relay switching cycle counters and diagnostics. It integrates into SM 522 module family for S7-1500 control systems, enabling safe shutdown of load groups to SIL 1 (EN IEC 62061:2021) / PL c (EN ISO 13849-1:2015). Typical industrial applications include safety-relevant control tasks in machinery, conveying, packaging, and automated production lines.

Best Suited For

Safety-oriented shutdown of 230 V AC loads up to SIL 1 / PL c
Control of grouped AC loads via relay outputs
Monitoring switching cycles for preventive maintenance
Integration with SIMATIC S7-1500 systems via SM 522 output modules

Outputs

16 relay channels (230 V AC/2 A)

Group capability

2 channels per group, 4 A per group

Safety compliance

SIL 1 / PL c

Switching diagnostics

Yes, cycle counter per relay

Bus power

0.8 W

Technical Specifications

I/O & Electrical

Digital outputs

16 relay

Output voltage (AC)

230 V AC

Current per channel

2 A

Current per group

4 A

Module total current

32 A

Switching frequency (resistive)

1 Hz

Switching frequency (inductive)

0.5 Hz

Switching frequency (lamp)

1 Hz

Communication & Power

Supply voltage (DC)

24 V

Supply range

20.4-28.8 V

Reverse polarity protection

Yes

Power consumption (backplane bus)

0.8 W

Power loss, typ.

5 W

Physical & Environmental

Net weight

0.369 kg

Certifications

SIL 1PL c

Supports safety-oriented shutdown up to SIL 1 per EN IEC 62061:2021 and up to PL c per EN ISO 13849-1:2015.
