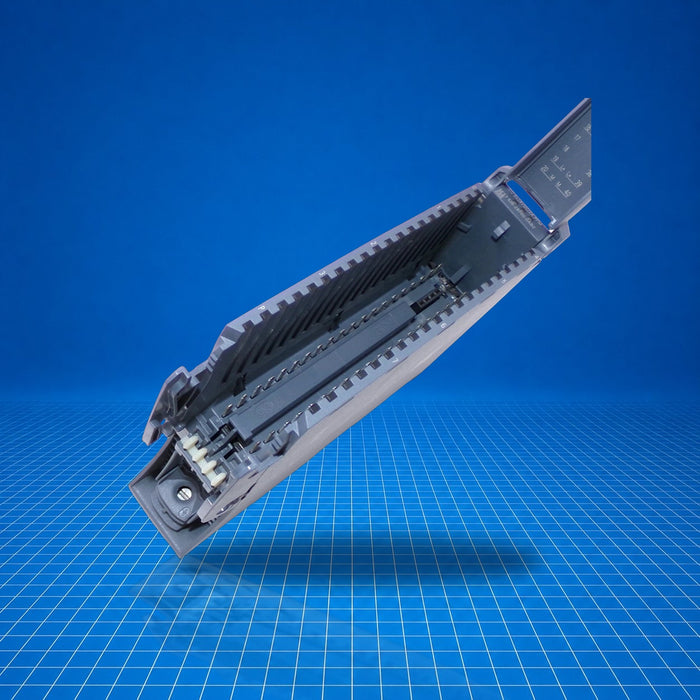

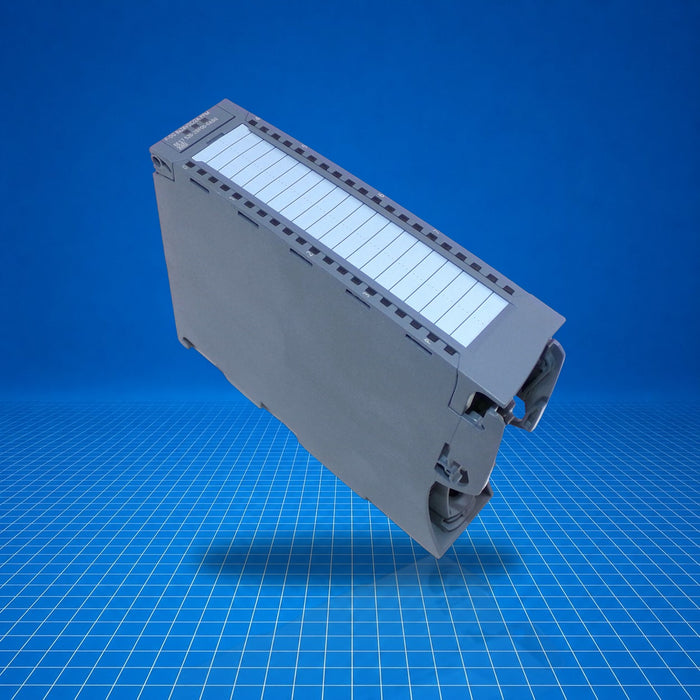

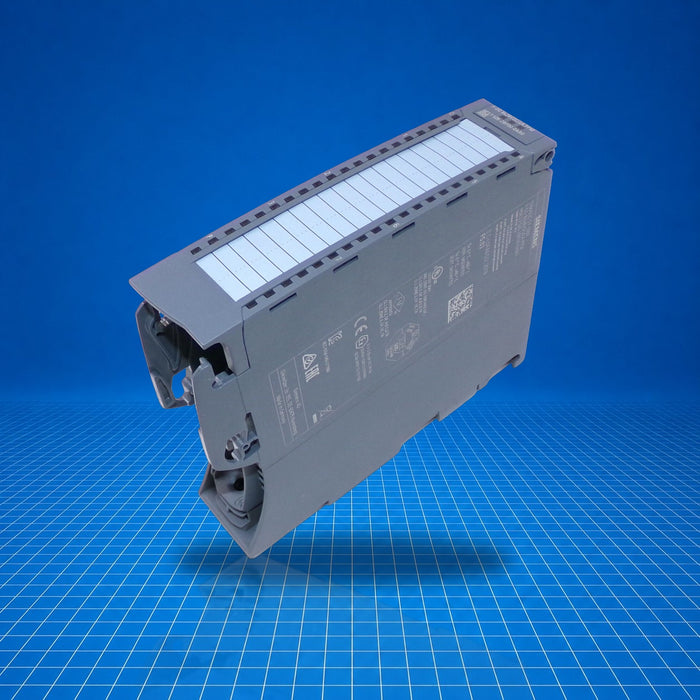

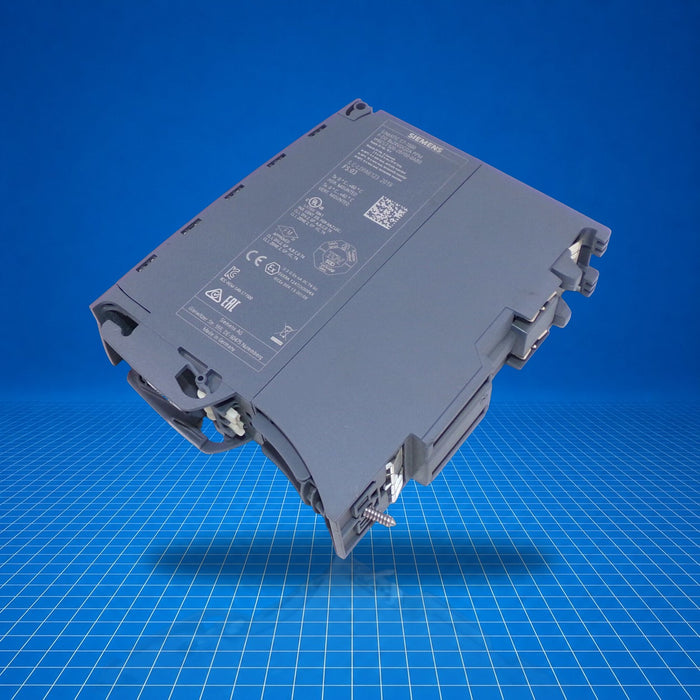

6ES7526-2BF00-0AB0 Siemens
Original price
$1,450.00
-
Original price
$1,967.96
Original price
$1,967.96
$1,450.00
-
$1,967.96
Current price
$1,967.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

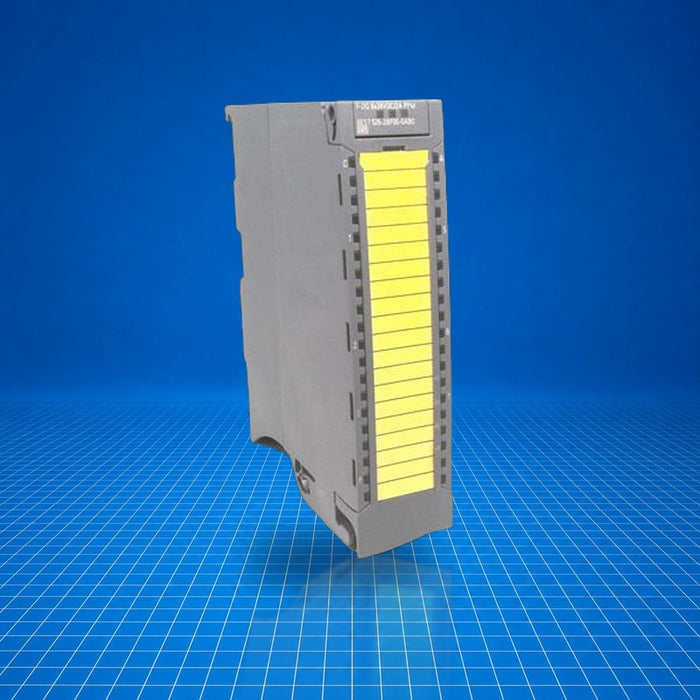

The Siemens 6ES7526-2BF00-0AB0 is a SIMATIC S7-1500 F-digital output module (F-DQ) featuring 8 channels of 24 V DC outputs rated at 2 A per channel, supporting PROFIsafe PPM protocol. It integrates into safety-rated control architectures to provide safe actuator control up to Performance Level E (PL E) per ISO 13849-1 or SIL 3 per IEC 61508. It installs on a standard 35 mm DIN rail and integrates into TIA Portal for configuration and diagnostics.
Best Suited For
- Safety-rated actuator switching in machine control
- PROFIsafe networks in S7-1500 systems
- Applications requiring PL E / SIL 3 safety output channels
- Compact DIN-rail installations
Channels
8 digital outputs
Output voltage
24 V DC
Rated output current
2 A/channel
Safety rating
PL E / SIL 3
Backplane power consumption
0.8 W
Technical Specifications
I/O & Electrical
Output channels
8
Output voltage (rated)
24 V DC
Output current (rated, per channel)
2 A
Residual current (off)
max. 0.5 mA (PP switching) / 1 mA (PM-switching)
Switching frequency, resistive load
max. 30 Hz
Switching frequency, inductive load
max. 0.1 Hz
Switching frequency, lamp load
max. 10 Hz
Load resistance range
12 Ω - 2000 Ω
Short-circuit protection
Yes
Open-circuit detection
Yes
Current-sinking/sourcing
Both
Communication & Power
Backplane power consumption
0.8 W (from bus)
Current consumption (no load, rated)
110 mA
Current consumption (no load, max)
130 mA
Supply voltage range
19.2 V - 28.8 V DC
Reverse-polarity protection
Yes
Physical & Environmental
Width
35 mm
Net weight
0.373 kg
Certifications
PL ESIL 3
Safety performance up to Performance Level E (ISO 13849-1) and SIL 3 (IEC 61508).
