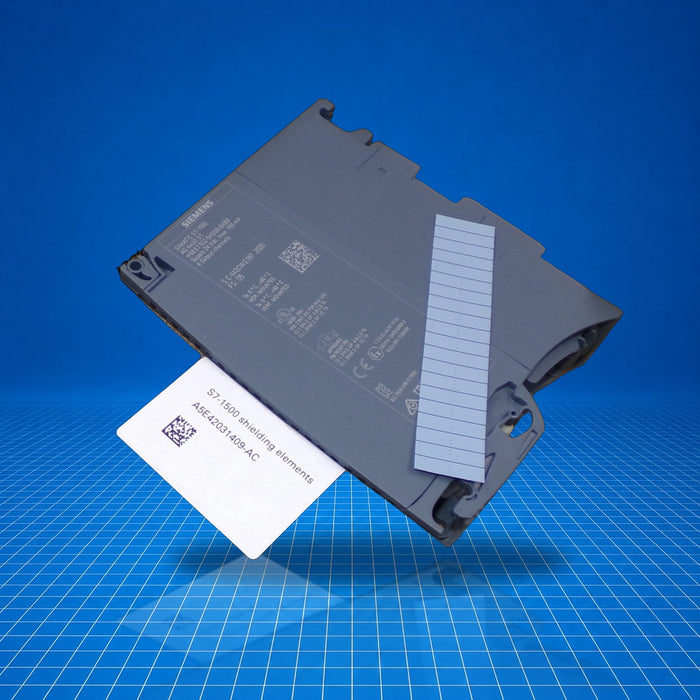

6ES7532-5HD00-0AB0 Siemens

Name: 6ES7532-5HD00-0AB0 Siemens
Brand: Siemens
SKU: 6ES7532-5HD00-0AB0
Price: 756.25 USD
Availability: InStock

$756.25 - $901.95

$756.25

$756.25 - $901.95

$756.25

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

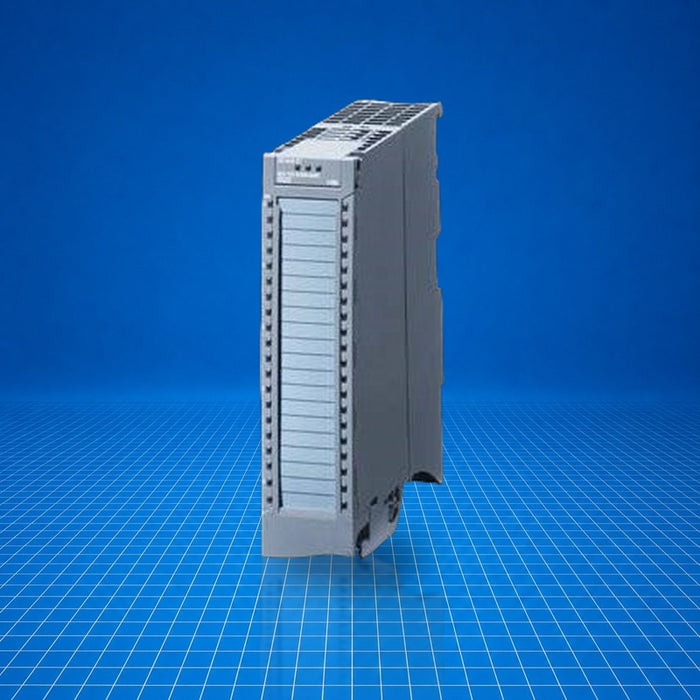

The Siemens SIMATIC S7-1500 analog output module AQ 4xU/I ST (part number 6ES7532-5HD00-0AB0) provides four configurable analog outputs for voltage or current. It integrates into the SM 532 I/O family on the S7-1500 backplane, offering 16-bit resolution and 0.3 % accuracy. The module supports diagnostics, I&M data, and safety-oriented shutdown of load groups up to SIL 2 / PL c, serving functions in process control, motion control, and general analog set-point output tasks in industrial automation.

Best Suited For

Analog actuator control (pressure, flow, position)
Closed-loop process control integration
Standard S7-1500 distributed I/O architectures
Safety-related shutdown of analog outputs (SIL 2 / PL c)
Diagnostics-aware systems with I&M data requirements

Analog outputs

4

Resolution / Accuracy

16-bit / 0.3 %

Safety shutdown

SIL 2 / PL c

Supply voltage

24 V DC (19.2 … 28.8 V)

Power consumption

0.6 W (bus) / 4 W loss

Technical Specifications

I/O & Electrical

Number of analog outputs

4

Output ranges, voltage

0 …10 V; 1 …5 V; -10 …+10 V

Output ranges, current

0 …20 mA; -20 …+20 mA; 4 …20 mA

Voltage output short-circuit current, max.

24 mA

Current output no-load voltage, max.

22 V

Min. load resistance (voltage)

1 kΩ (0.5 kΩ at 1-5 V)

Max. capacitive load (voltage)

1 µF

Max. current output load

750 Ω

Max. inductive load

10 mH

Cable length (shielded)

800 m (current), 200 m (voltage)

Communication & Power

Supply voltage

24 V DC (19.2 … 28.8 V)

Current consumption, max.

190 mA

Power consumption (bus)

0.6 W

Power loss, typ.

4 W

Physical & Environmental

Resolution

16 bit

Conversion time (per channel)

0.5 ms

Settling time (resistive)

1.5 ms

Settling time (capacitive/inductive)

2.5 ms

Output ripple (0-50 kHz)

±0.02 %

Linearity error

±0.15 %

Temperature error

±0.002 %/K

Crosstalk

-100 dB

Repeat accuracy (25 °C)

±0.05 %

Certifications

SIL 2PL cRoHS

Supports safety-related shutdown up to SIL 2 per EN IEC 62061:2021 and Category 2 / PL c per EN ISO 13849-1:2015; includes diagnostics and I&M data (I&M0 to I&M3).
