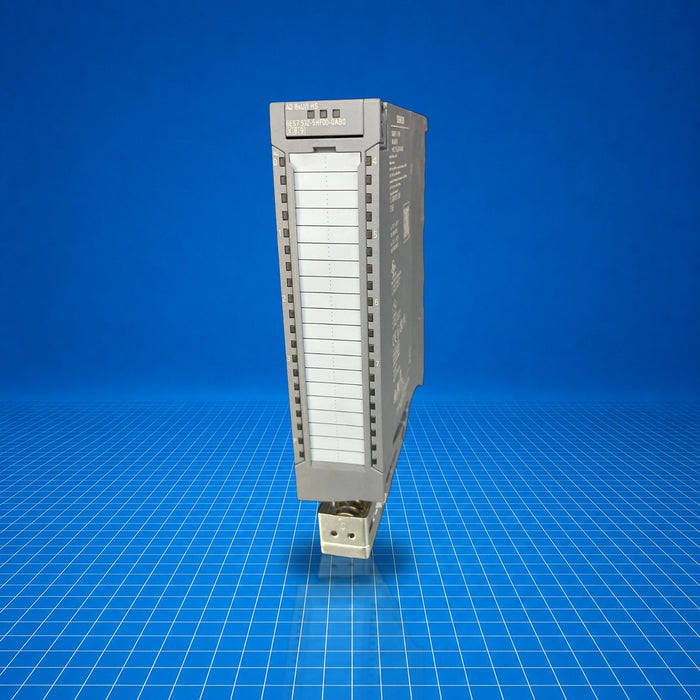

6ES7532-5HF00-0AB0 Siemens

Name: 6ES7532-5HF00-0AB0 Siemens
Brand: Siemens
SKU: 6ES7532-5HF00-0AB0
Price: 902.0 USD
Availability: InStock

$902.00 - $962.50

$902.00

$902.00 - $962.50

$902.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

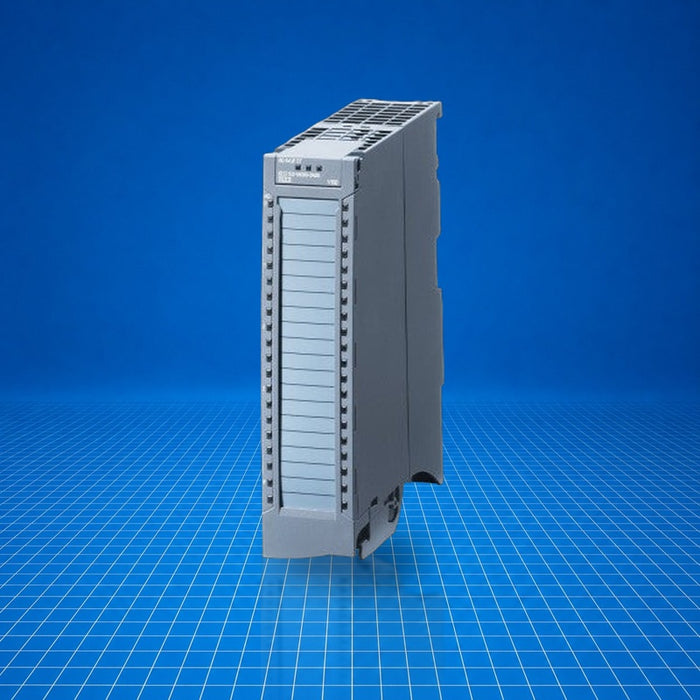

The 6ES7532-5HF00-0AB0 is a SIMATIC S7-1500 analog output module (AQ 8xU/I HS) from Siemens, designed to provide high-accuracy analog voltage/current channels with integrated diagnostics and safety-related shutdown capabilities. It offers eight channels grouped in sets of eight, 16-bit resolution, and supports oversampling. The module integrates into the S7-1500 automation platform and is typically deployed for precise analog control of actuators such as valves or drives in factory automation, process control, or safety-related load-management applications.

Best Suited For

S7-1500 control systems requiring analog output
Safety-related shutdown loops up to SIL2 / PL d
High-resolution analog signal generation (voltage/current)
Compact analog expansion in machine-level control

Analog channels

8

Resolution

16-bit

Cycle time (all channels)

125 µs

Power consumption (backplane)

1.15 W

Technical Specifications

I/O & Electrical

Number of analog outputs

8

Output types

Voltage (0-10 V, 1-5 V, -10-+10 V); Current (0-20 mA, -20-+20 mA, 4-20 mA)

Load impedance, voltage outputs min.

1 kΩ

Capacitive load, voltage outputs max.

100 nF

Current output, max load

500 Ω

Inductive load, current max

1 mH

No-load voltage, current output max

20 V

Short-circuit protection (voltage)

Yes

Short-circuit current, voltage max

45 mA

Communication & Power

Supply voltage (DC) rated

24 V

Supply voltage range

19.2 V - 28.8 V

Reverse-polarity protection

Yes

Power consumption (backplane)

1.15 W

Power loss, typical

7 W

Physical & Environmental

Cycle time (all channels)

125 µs

Conversion time per channel

50 µs

Settling time, resistive load

30 µs

Settling time, capacitive/inductive

100 µs

Output ripple (0-50 kHz)

± 0.02 %

Linearity error

± 0.15 %

Temperature error

± 0.002 %/K

Repeat accuracy at 25 °C

± 0.05 %

Operational error limit (voltage/current)

± 0.3 %

Basic error limit at 25 °C

± 0.2 %

Conversion resolution

16 bit

Certifications

SIL2PL dSiemens EcoTech

Supports safety-oriented shutdown of load groups up to SIL2 (EN IEC 62061:2021) and Category 3 / PL d (EN ISO 13849-1:2015). Eco profile per Siemens EcoTech.
