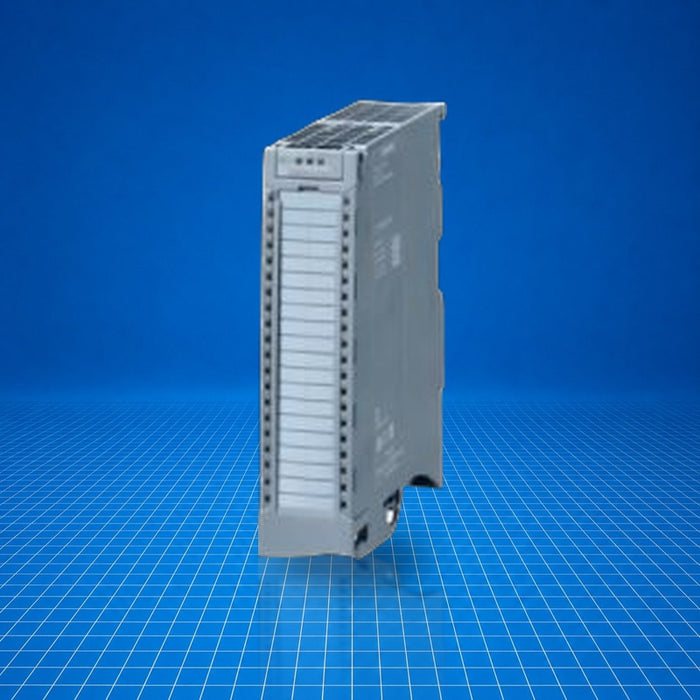

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7532-5ND00-0AB0 Siemens

Name: 6ES7532-5ND00-0AB0 Siemens
Brand: Siemens
SKU: 6ES7532-5ND00-0AB0
Price: 2576.25 USD
Availability: InStock

$0.00 - $2,576.25

$2,576.25

$0.00 - $2,576.25

$2,576.25

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7532-5ND00-0AB0 is a SIMATIC S7-1500 analog output module (AQ 4xU/I HF) providing four independent, 16-bit resolution analog outputs (voltage and current) for industrial automation systems. It supports multiple output ranges (e.g. 0-10 V, ±10 V, 4-20 mA) with short-circuit protection and common-mode voltage tolerance up to 30 V AC / 60 V DC. Configurable via TIA Portal (from V14 or STEP 7 V5.5 SP3), the module includes diagnostics, isochronous mode, and safety-oriented shutdown features meeting SIL2 and EN ISO 13849-1 PL d. Typical applications include process control, regulation of actuators, or precise analog control loops. Part number: 6ES7532-5ND00-0AB0.

Best Suited For

S7-1500 systems requiring multi-range analog outputs
Applications needing both voltage and current output flexibility
Safety-critical shutdown of load groups to SIL 2 / PL d
High-accuracy analog control loops
Integration into TIA Portal-based engineering

Outputs

4 analog (voltage & current)

Resolution

16 bit

Supply voltage

19.2 V-28.8 V DC

Safety shutdown

SIL 2 / PL d

Cycle time

125 µs (all channels)

Technical Specifications

I/O & Electrical

Number of analog outputs

4

Output ranges, voltage

0 V to 10 V; 1 V to 5 V; -10 V to +10 V

Output ranges, current

0 mA to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA

Voltage output short-circuit protection

Yes

Voltage output max short-circuit current

24 mA

Current output max open-circuit voltage

22 V

Load resistance, voltage outputs min

1 kΩ (0.5 kΩ at 1-5 V)

Load resistance, current outputs max

750 Ω

Capacitive load, voltage max

1 µF

Inductive load, current max

10 mH

Cable length max (shielded)

800 m (current); 200 m (voltage)

Communication & Power

Supply voltage (DC)

19.2 V to 28.8 V

Power consumption (backplane bus)

0.95 W

Power dissipation, typ.

5 W

Cycle time (all channels)

125 µs

Physical & Environmental

Resolution

16 bit

Accuracy

0.1 %

Certifications

SIL 2PL d

Supports safety-oriented shutdown to SIL 2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
